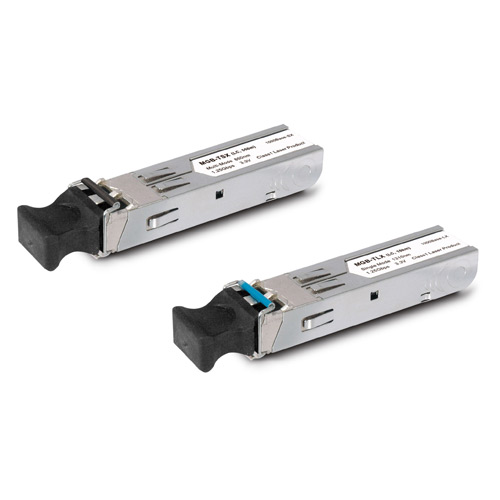

Planet MGB-LB10

SFP-Port 1000BASE-BX (WDM, TX:1550nm) mini-GBIC module – 10km



Features :

• Complies with the IEEE 802.3ab/802.3z Gigabit Ethernet standard
• One 1000Mbps LC fiber port
• Duplex LC connector
• Differential PECL inputs and outputs
• Single power supply 3.3V
• TTL signal detection indicator
• Hot pluggable
• Class 1 laser product complies with EN 60825-1
• Plug and Play Installation

The MGB family of the SFP Gigabit Ethernet module can be installed into PLANET Switch and Media Converter products with 1000BASE-LX SFP interface. The deployment distance can be 20 kilometers (Single-mode, LC). The SFP transceivers are hot-pluggable and hot-swappable. You can plug in and pull out the transceivers to/from any SFP port without having to power off the Switch/Media Converter.

The MGB-LX 1000BASE-LX transceiver is an ideal solution for -40℃ to 75℃ wide temperature industrial equipment with 1000BASE-LX SFP interfaces.



Specifications :

MGB-LA10 and MGB-LB10
PHY Type	IEEE 802.3z 1000BASE-BX
Fiber Type	Single-mode
Connector	Simplex LC/UPC
DDM	Yes
Wavelength	MGB-LA10: TX1310nm, RX1550nm MGB-LB10: TX1550nm, RX1310nm
Maximum Distance	10km
Operating Temperature	0~60 degrees C
