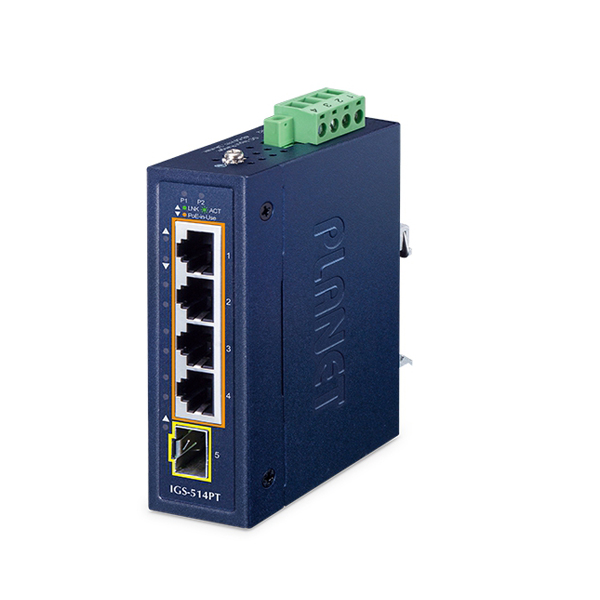

Planet IGS-514PT

4 x GbE 802.3at + 1G SFP Reliable Industrial PoE Switch



High Power PoE Solution for Harsh Industrial Network

PLANET IGS-514PT is the smallest industrial-grade 4-Port PoE+ Switch in PLANET industrial PoE product lineup and is specially designed to be installed in a narrow environment. It provides up to 120-watt 802.3at PoE+ output capability and wire-speed Gigabit performance even in the harsh industrial environment. It comes with four 10/100/1000BASE-T 802.3at PoE+ ports and one 100/1000X SFP interface for uplink connection.



The power system of the IGS-514PT supports 48~54V DC power input for power redundancy and operational flexibility. It comes with a total power budget of up to 120 watts for different kinds of PoE applications and operating temperature ranging from -40 to 75 degrees C in a rugged IP30 metal housing.



Plug and Play High Power Sourcing Solution

Complying with the IEEE 802.3at Power over Ethernet Plus technology, the IGS-514PT provides up to 30 watts of PoE output power to allow users to flexibly deploy standard and high powered devices simultaneously with no need of software configuration. Furthermore, the IGS-514PT can extend much longer distance by using PLANET PoE Extender for powering up the PoE PD devices which can be installed over more than 100 meters away. By daisy-chaining multiple PoE extenders, it offers the flexibility of doubling, tripling or quadrupling the distance of PoE network.

Fiber-optic Link Capability Extends the Range of Network Deployment

The maximum distance between two IP devices via Ethernet UTP cable is 100 meters. To flexibly extend the deployment range of IP devices, the IGS-514PT’s SFP slot supporting 100BASE-FX/1000BASE-X, SFP modules, and more can reach a transmission distance of up to 120km.

Thus, building a network solution of FTTH (Fiber to the Home), FTTC (Fiber to the Curb) for ISPs or FTTB (Fiber to the Building) for enterprises becomes so easy to users when long-distance deployment is employed. The IGS-514PT can handle extremely large amounts of data in a secure topology linking to a metro switch, backbone or high-capacity server.

Dual Power Input for High Availability Network System

The IGS-514PT features a strong dual power input system with wide-ranging voltages (48V~54V DC) incorporated into customer’s automation network to enhance system reliability and uptime. In the example below, when Power Supply 1 fails to work, the hardware failover function will be activated automatically to keep powering the IGS-514PT via Power Supply 2 without any break of operation.

Small but Strong Enough for Any Hardened Environment

With the IP30 industrial metal case, the IGS-514PT provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb-side traffic control cabinets without air conditioning. It features a ventilated construction in which a cooling fan is not necessary, thereby making its operation noiseless. Being able to operate under the temperature range from -40 to 75 degrees C, the IGS-514PT can be placed in almost any difficult environment.

Robust Protection

The IGS-514PT provides contact discharge of ±6KV DC and air discharge of ±8KV DC for Ethernet ESD protection. It also supports ±6KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate.



Flexible and Easy Installation with Limited Space

The compact-sized IGS-514PT is specially designed to be installed in a narrow environment, such as wall enclosure. It can be installed by fixed wall mounting or DIN rail, thereby making its usability more flexibly and easily in any space-limited location.



Specifications :

Hardware Specifications

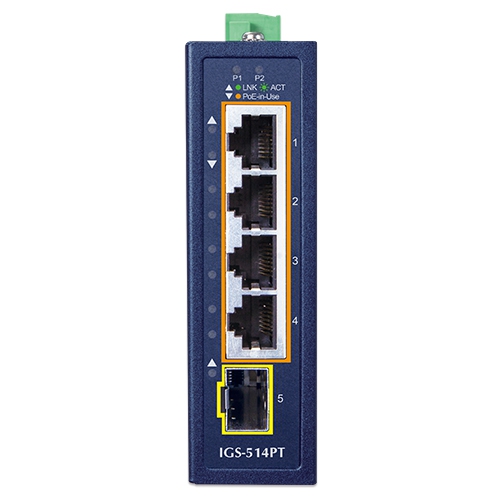

Copper Ports	4 10/100/1000BASET RJ45 auto-MDI/MDI-X ports
SFP Ports	1 1000BASE-SX/LX/BX SFP interface, backward compatible with 100BASE-FX SFP
PoE Injector Ports	4 ports with 802.3at PoE+ injector function (Ports 1 to 4)

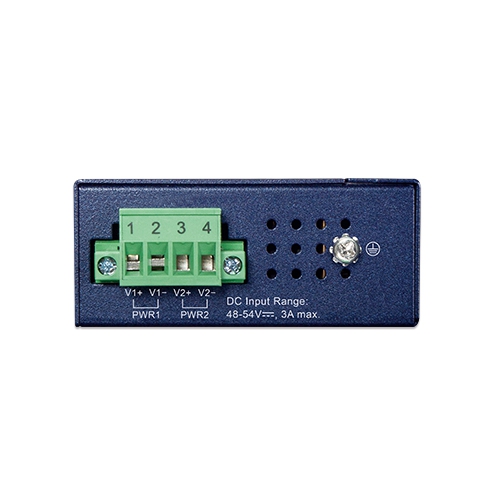

Connector	Removable 4-pin terminal block Pin 1/2 for Power 1; Pin 3/4 for Power 2
Power Requirements	48~54V DC, 3A (max.) Redundant power with reverse polarity protection
Power Consumption	DC 54V: Max. 1.62 watts/5.53BTU (System) Max. 135 watts/460.64BTU ( Full Loading)
Dimensions (W x D x H)	30 x 70 x 104 mm
Weight	260g
Enclosure	IP30 metal case
Installation	DIN-rail kit and wall-mount kit
ESD Protection	6KV
Switch Specifications
Switch Architecture	Store-and-Forward
Switch Fabric	10Gbps
Throughput (packet per second)	7.4Mpps@64bytes
Address Table	2K entries
Jumbo Frame	9Kbytes
Flow Control	Back pressure for half duplex IEEE 802.3x pause frame for full duplex
Power over Ethernet
PoE Standard	IEEE 802.3at Power over Ethernet Plus/PSE Backward compatible with IEEE 802.3af Power over Ethernet/PSE
PoE Power Supply Type	End-span
Power Pin Assignment	1/2 (+), 3/6 (-)
PoE Power Output	30 watts (per port)
PoE Power Budget	120 watts
Max. Number of Class 4 PDs	4
Standards Conformance
Regulatory Compliance	FCC Part 15 Class A, CE
Stability Testing	IEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration)
Standards Compliance	IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3z Gigabit Ethernet over Fiber Optic IEEE 802.3x Full-Duplex Flow Control IEEE 802.3az Energy Efficient Ethernet (EEE) IEEE 802.3at Power over Ethernet Plus PSE IEEE 802.3af Power over Ethernet Plus IEEE 802.1p Class of Service
Environment
Temperature	Operating: -40~75 degrees C Storage: -40~75 degrees C
Humidity	Operating: 5~90% (non-condensing) Storage: 5~90% (non-condensing)
