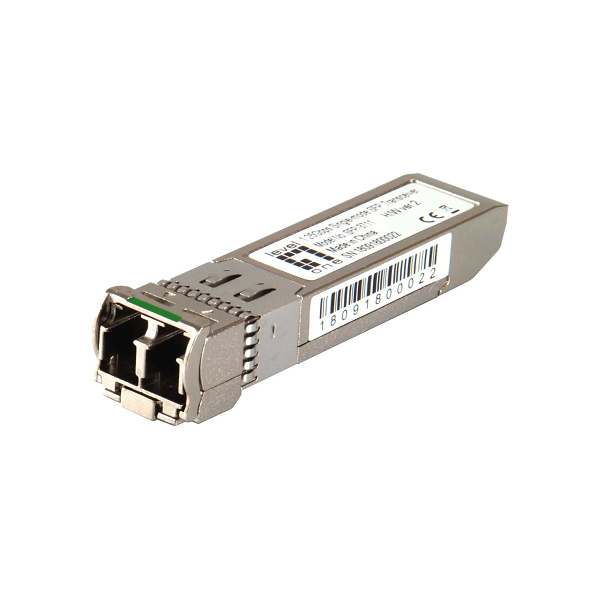

Levelone SFP-3711

1.25Gbps SM 120km SFP Transceiver



Product Description :

• 1.25Gbps Bi-directional single fiber link
• IEEE 802.3z Gigabit Ethernet compliant
• Provides duplex LC connector
• Compatible with SFP Multi-Sourcing Agreement (MSA) standards
• Hot-swappable providing non-stop service
• RoHS compliant and Lead Free
• Supports Digital Diagnostics Monitoring Interface (DDMI) for easy status monitoring

LevelOne SFP-3711 is a high performance and cost-effective single-mode SFP transceiver. Intended for use with Gigabit Ethernet, it provides up to 1.25 Gbps bi-directional data transfer rate on a single duplex fiber core. For use with 9 and 125 micron fiber cables, it has increased transmission power to reach a distance of up to 120km. The SFP-3711 transceiver operates using a wavelength of 1550nm with a DFB Laser Diode light source and has an LC port.



Specifications :

Power.
Power consumption.	1000 mW
General.
Model Number.	SFP-3711
Features 1.
Features.	• DDM (Digital Diagnostics Monitoring) • Hot-swappable
Others new
Approval and Compliance	CB, CE, FCC, FDA, RoHS, TÜV, UL
Performance 2.
Receiver sensitivity.	-32 dBm
Physical Specifications new
Color	Silver
Dimensions (W x D x H mm)	56 x 13 x 11 mm
Product Net Weight	15 gram
Miscellaneous.
Fiber Optical Mode.	Single-Mode
Transceiver Type.	SFP
Grade.	Commercial
System Specifications.
Data rate.	1.25 Gbps
Optical transmission power (dBm).	0 to 5 dBm
Wavelength (nm).	1550 nm
Others.
Operating humidity.	5% RH ~ 85% RH
Operating temperature.	0°C ~ 70°C
Storage humidity.	5% RH ~ 85% RH
Storage temperature.	-40°C ~ 85°C
Package Contents.	• SFP-3711 • Quick Installation Guide • Declaration of Conformity
