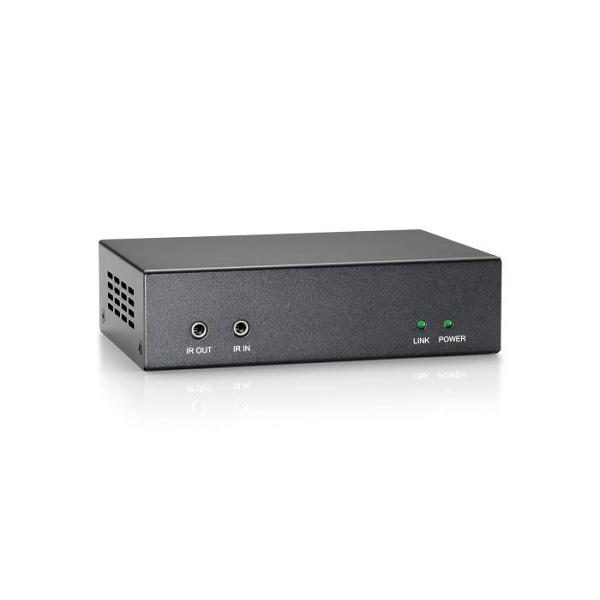

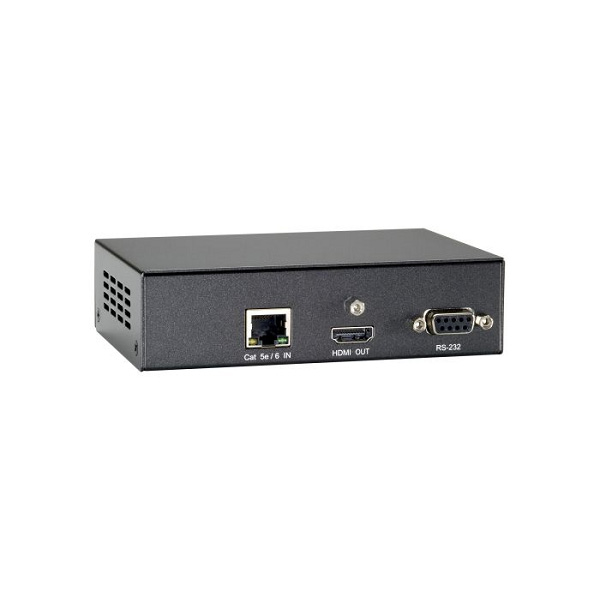

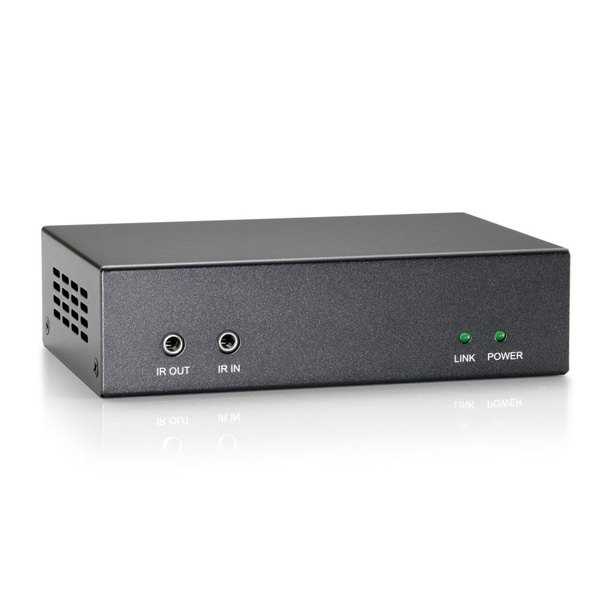

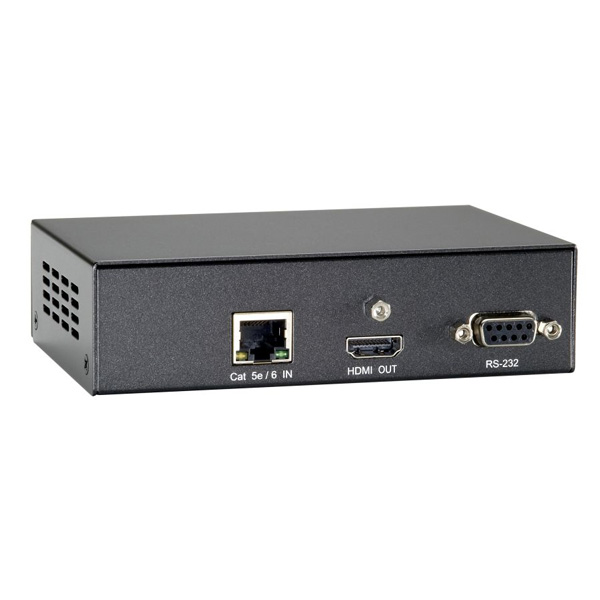

Levelone HVE-9211PR

HDBaseT HDMI over Cat.5 PoE Receiver

Product Description :

Supports Dolby TrueHD, DTS-HD Master Audio, Dolby Digital Plus, LPCM 7.1 audio
Transmission distance of up to 100m for HDMI(4k2k), IR and RS-232
Transmission distance of up to 100m for HDMI(4k2k), IR and RS-232
Supports video resolutions up to 3840 x 2160 (4K x 2K) @ 30Hz
Bi-Directional RS-232 pass through and IR control
Supports 3D, CEC & Lip Sync pass-through
Built-in EDID Hot Plug Detection (HPD)
Simple Plug and Play installation
HDMI outputs with EDID management
HDMI and HDCP complaint

The HVE-92 series is a HDMI extension solution supports HDBaseT technology which transmits HDMI signal and multi-channel audio at resolution Ultra HD 4K x 2K (3840 x 2160 @ 30Hz) and 1080p Full HD up to 100m via Cat5e or Cat6 cable.The series of products are embedded with EDID priority management of HDMI outputs supports EDID Hotplug refreshing function. These products also provide Bi-Directional RS-232 and IR to control the connected devices from either source or display location.All the features are made to simplify installation and reduce costs, but at the same time providing exceptional video and audio quality. The HVE-92 series is the perfect solution for Digital Signage, trade shows, home theater installations, medical facilities, and other public exhibitions.

Specifications :

A Testing Group – No Maintain, To be Deleted
Harmonized System (HS) code.	851762
Customs product code (TARIC).	8517620000
EAN.	4015867192931
General.
Color.	Black
Model Number.	HVE-9211PR
Others.
Operating humidity.	10% RH ~ 80% RH
Operating temperature.	0°C ~ 50°C
Package Contents.	HVE-9211PR IR-Fernbedienung Bedienungsanleitung
Physical Specifications.
Dimensions (W x D x H).	125 x 85 x 40 mm
Product weight (kg).	0,407
System Specifications.
Power supply included.	No
