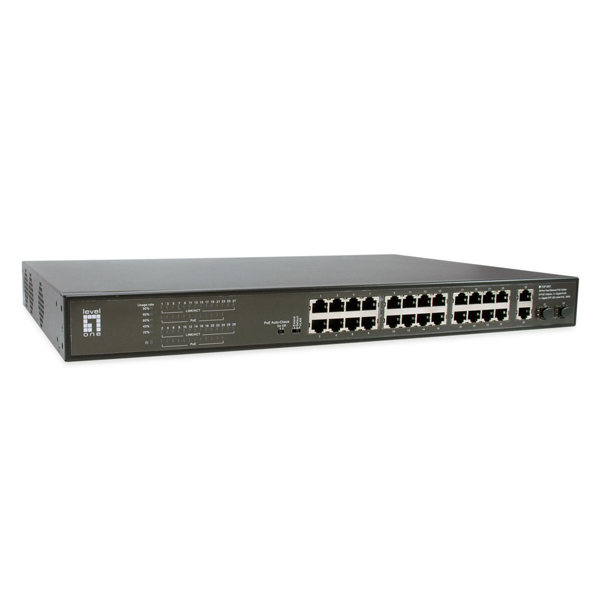

Levelone FGP-2831

28 x FE PoE + 2 x GbE + 2 x SFP Unmanaged PoE Switch

Product Description :

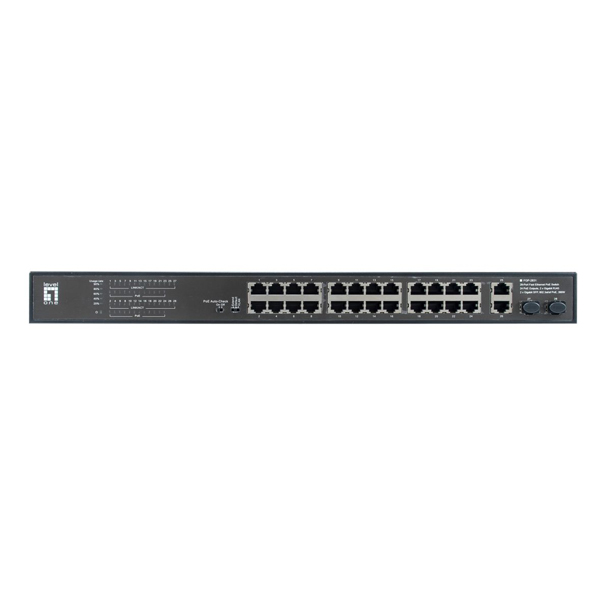

24 Fast Ethernet PoE ports, 2 Gigabit ports and 2 Gigabit SFP slots.
Total PoE power budget: 390W, up to 30W per port.
IEEE 802.3af/at PoE compliant to simplify deployment and installation.
6KV surge protection, 6KV/8KV ESD protection.
Connection distance of up to 250m at 10Mbps data rate.
Powerful DIP switch button configuration for PoE Auto-Check, and Extension mode / Default mode / VLAN mode features.
Supports the PoE auto-check function,which is specially designed to solve the problems of equipment frozen. It can automatically detect the frozen PD equipment and restart the port’s output of PoE, and restart the PD device. It gently reduces the maintenance difficulty of engineering.

Specifications :

Port Configuration
Gigabit RJ45	2
Gigabit SFP	2
802.3af/at PoE	24
General.
Model Number.	FGP-2831
Features 1.
Features.	Dip switch Features: ● PoE Auto-check On/Off: The switch continuously monitors ports 1-24 for unresponsive behavior. If a port becomes unresponsive, the switch will automatically cycle power to restart it, without affecting other ports. ● Extend mode: This mode extends the operating distance of ports 1-24 to up to 250 meters. Each port in this mode is isolated from other ports and can only communicate with the uplink ports 25-28. Network storms are prevented, and IEEE 802.3x flow control is disabled. ● Default mode: This mode provides standard switch operation with normal network communication and PoE functionality. ● VLAN mode: In this mode, ports 1-24 are isolated from each other and can only communicate with the uplink ports 25-28. This configuration helps prevent network storms. Flow control is enabled in this mode. Protection Features: ● Surge Protection 6KV, Standard IEC61000-4-5 ● ESD Protection 6KV, contact / 8KV: air, Standard IEC61000-4-2
Others new
Approval and Compliance	CE, RoHS
Physical Specifications new
Color	Black
Dimensions (W x D x H mm)	420 x 285 x 44 mm
Product Net Weight	4000 gram
Miscellaneous.
PoE Power Budget.	Total 390.00
PoE Supported.	Yes
Concurrent ports.	Total 28.00
Fanless.	No
Manageable.	No
Grade.	Commercial
System Specifications.
Backplane (Gbps).	12.8
Data Rate.	1Gbps, 100Mbps
Dip switch.	PoE Auto-check function(On/Off) , Extend mode/Default mode/VLAN mode
Indicators.	System, Link/Act/Speed, PoE
MAC address table.	8K
Mount.	19″ rack mount, Desk mount
Packet buffer.	9.5Mpps
Pin assignment and polarity.	1/2 (+), 3/6 (-)

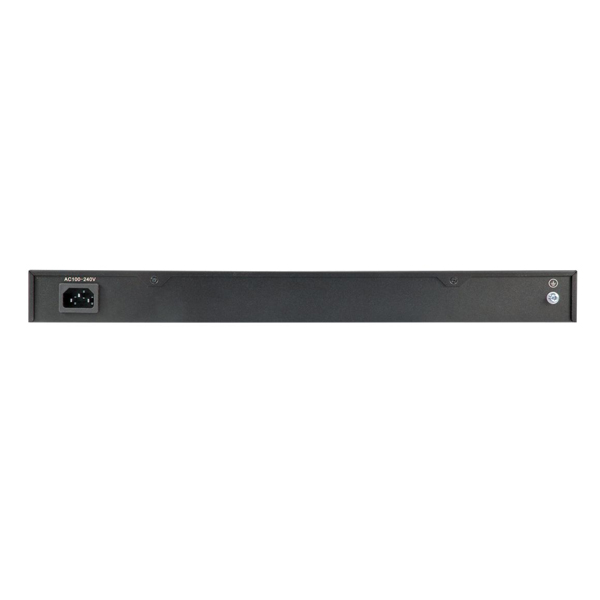

Power supply.	AC power supply (100-240VAC,50/60Hz,2.5-5A)
Power supply included.	Yes
RAM size.	4M
Standard.	• IEEE 802.3 10BASE-T • IEEE 802.3u 100BASE-TX • IEEE 802.3ab 1000BASE-T • IEEE 802.3z 1000BASE-X • IEEE 802.3af/at
Others.
Operating humidity.	10% RH ~ 90% RH
Operating temperature.	-10°C ~ 50°C
Storage humidity.	0% RH ~ 95% RH
Storage temperature.	-40°C ~ 85°C
Package Contents.	FGP-2831, Quick Installation Guide, Power Cord, 19″ Rack Mount Kit
