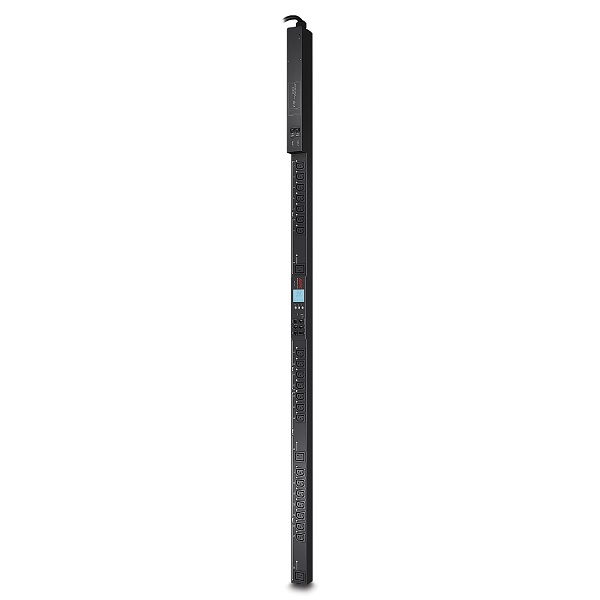

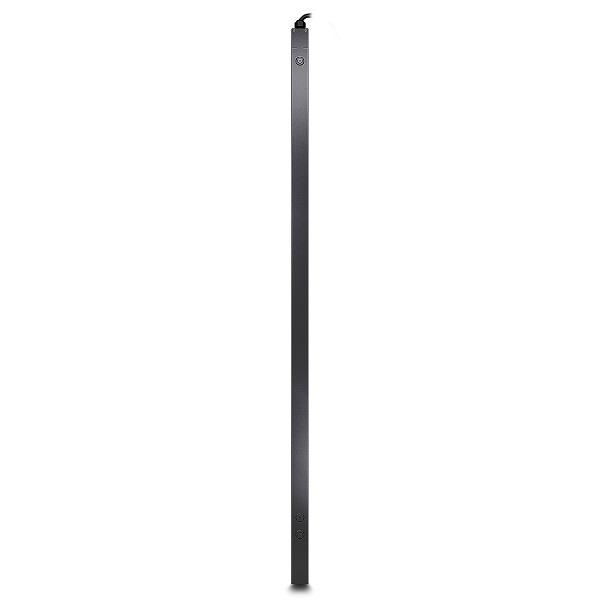

APC AP8653 Rack PDU 2G, Metered by Outlet with Switching, ZeroU, 32A, 230V, (21) C13 & (3) C19
APC AP8653 Rack PDU 2G, Metered by Outlet with Switching, ZeroU, 32A, 230V, (21) C13 & (3) C19
APC AP8653 Rack PDU 2G, Metered by Outlet with Switching, ZeroU, 32A, 230V, (21) C13 & (3) C19
  1. APC AP8653 Rack PDU 2G, Metered by Outlet with Switching, ZeroU, 32A, 230V, (21) C13 & (3) C19
  2. APC AP8653 Rack PDU 2G, Metered by Outlet with Switching, ZeroU, 32A, 230V, (21) C13 & (3) C19
  3. APC AP8653 Rack PDU 2G, Metered by Outlet with Switching, ZeroU, 32A, 230V, (21) C13 & (3) C19

APC AP8653 Rack PDU 2G, Metered by Outlet with Switching, ZeroU, 32A, 230V, (21) C13 & (3) C19

฿97,509.10 (รวมภาษี)
฿91,130.00 (ไม่รวมภาษี)

รหัสสินค้า: AP8653

มีสินค้าอยู่ 100

AP8653

APC Rack PDU 2G, Metered by Outlet with Switching, ZeroU, 32A, 230V, (21) C13 & (3) C19



APC Metered by Outlet with Switching Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and individual outlet power metering Remote outlet level controls allow power on/off functionality for power recycling to reboot locked-up equipment and to avoid unauthorized use of individual outlets Power sequencing delays allow users to define the order in which to power up or down attached equipment Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding Current metering provides real-time remote monitoring of connected loads Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles User-defined alarms warn of potential circuit overloads before critical IT failures occur Users can access, configure, and control Switched rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager



Specifications :

Overview
———
Presentation: APC Metered by Outlet with Switching Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and individual outlet power metering. Remote outlet level controls allow power on/off functionality for power recycling to reboot locked-up equipment and to avoid unauthorized use of individual outlets. Power sequencing delays allow users to define the order in which to power up or down attached equipment. Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding. Current metering provides real-time remote monitoring of connected loads. Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles. User-defined alarms warn of potential circuit overloads before critical IT failures occur. Users can access, configure, and control Switched rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager.
Lead time: Usually in Stock
—–
Main
—–
Name: AP8653
Colour: Black
Product or component type: PDU
PDU type: Metered outlet
Cord length: 3.00 m
Number of cables: 1
Provided equipment: CAN port terminator, Installation guide, Rack mounting brackets, Safety guide, Serial configuration cable
————–
Complementary
————–
Input Voltage: 200 V, 208 V, 230 V
Height: 182.9 cm
Width: 5.6 cm
Output Voltage: 230 V
Depth: 5.1 cm
Net weight: 8.23 kg
mounting location: Side
Mounting preference: No preference
Input Plug Type: IEC 60309 32 A 2P + E
mounting mode: Rack-mounted
Rack units: 0U
USB compatible: No
mounting position: Vertical
Permissible voltage: 220…240 V
Max line current: 32 A
Input current limits: 32 A
Load capacity: 7400 VA
Network frequency: 50/60 Hz
Outlet type and quantity: 21 IEC 60320 C13, 3 IEC 60320 C19
————
Environment
————
product certifications: VDE
Standards: EN 55022 class A, EN 55024, EN 61000-3-2, EN 61000-3-3
Ambient air temperature for operation: -5…60 °C
Relative humidity: 5…95 %
Operating altitude: 0…10000 ft
Ambient air temperature for storage: -25…65 °C
Storage Relative Humidity: 5…95 %
Storage altitude: 0.0000000000…15240.0000000000 m
————-
Packing Units
————–
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 203.8 cm
Package 1 Width: 16.2 cm
Package 1 Length: 11.8 cm
Package 1 Weight: 10.5 kg
