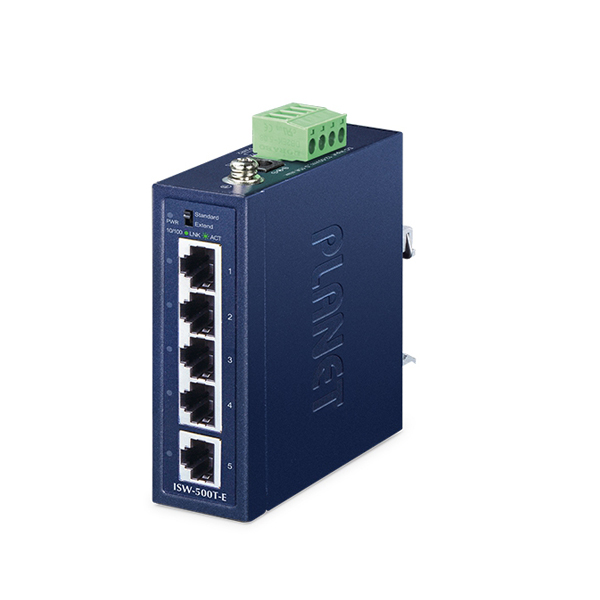

Planet ISW-500T-E

5 x Port 10/100/1000T IP40 Compact Industrial Switch



Compact Size for More Practicability and Convenience

PLANET ISW-500T-E Compact Industrial 5-Port 10/100TX Ethernet Switch, suitable for industrial use, features 5 100Mbps auto-negotiation ports, IP40-rated rugged yet compact case and a wide-ranging redundant power system (12~55V DC). The ISW-500T-E is able to operate in any harsh environment with operating temperature ranging from -40 to 75 degrees C.





As the trend for an IIoT (Industrial Internet of Things) infrastructure continues to grow, the ISW-500T-E is designed to simplify industrial network deployment with its Plug and Play feature. Beyond offering stable and reliable fast data, it also aligns with the AIoT (Artificial Intelligence of Things) vision by enabling seamless integration of intelligent systems. This allows the collection and analysis of valuable data, empowering real-time decision-making and enhancing operational efficiency across various industrial applications.



Distance Extended for Transmission of Data

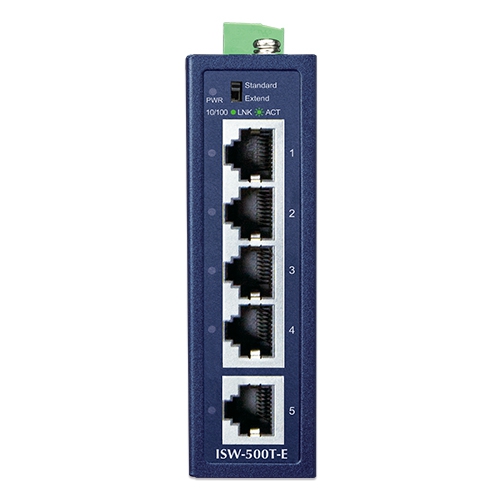

The built-in solid DIP switch provides “Standard” and “Extend” operation modes. The ISW-500T-E operates as a regular Ethernet switch in the “Standard” mode. In the “Extend” operation mode, the ISW-500T-E operates on a per-port basis in 10Mbps duplex mode, supporting data transmission over a distance of up to 250 meters, overcoming the typical 100-meter limitation of Ethernet UTP cable. This feature offers a cost-effective solution for extending Ethernet transmission distance without additional equipment.



Low Power Consumption for ESG Principles

The ISW-500T-E adopts advanced green networking technology that aligns with Environmental, Social, and Governance (ESG) principles, offering link-on cable length power-saving and link-down power-saving features. These capabilities enable the ISW-500T-E to maintain exceptionally low power consumption even under full-load operation, effectively conserving energy while delivering outstanding performance. Compared to the ISW-500T, the ISW-500T-E can reduce energy consumption by over 50%.

With Auto Power Savings and the IEEE 802.3az Energy-Efficient Ethernet (EEE) protocol, the ISW-500T-E can automatically detect cable link status and network traffic, adjusting its power consumption accordingly. When device activity is lower, the switch consumes less power, achieving greater energy efficiency.



Triple Power Input for High Availability Network System

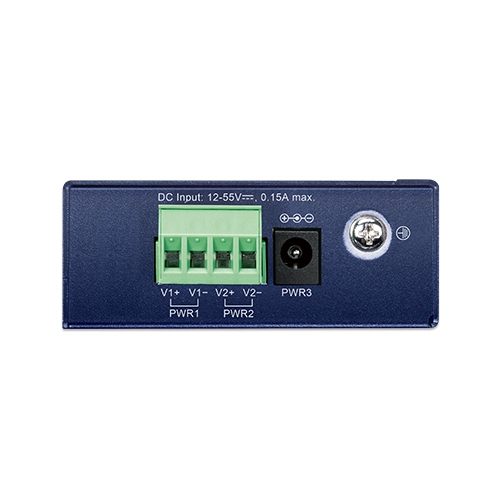

The ISW-500T-E features a robust triple power input system with wide-ranging voltages (12V~55V DC) incorporated into the customer’s automation network to enhance system reliability and uptime. In the example below, if one power supply fails, the hardware failover function will be activated automatically to keep powering the ISW-500T-E via the remaining power supplies alternatively, ensuring continuous operation without any interruptions.

High Switch Performance

The ISW-500T-E offers high-performance switch architecture. With the 5 10/100Mbps Ethernet ports providing non-blocking switch fabric and wire-speed throughput as high as 1Gbps and the 1K MAC address table, the ISW-500T-E can perform wire-speed packet transfer without the risk of packet loss. The flow control function enables the ISW-500T-E to provide fast and reliable data transfer.



Plug and Play

All of the RJ45 copper interfaces in the ISW-500T-E support 10/100Mbps auto negotiation for optimal speed detection through RJ45 Category 6, 5 or 5e cables. The standard auto-MDI/MDI-X support can detect the type of connection to any Ethernet device without requiring special straight-through or crossover cables.



Flexible and Easy Installation with Limited Space

The compact sized ISW-500T-E is specially designed to be installed in a narrow environment, such as wall enclosure. It can be installed by fixed wall mounting or DIN rail, thereby making its usability more flexible and easier in any space-limited location.





Specifications :

Hardware Specifications
Copper Ports	5 x 10/100BASE-TX RJ45 TP auto-MDI/MDI-X, auto negotiation
Connector	Removable 4-pin terminal block Pin 1/2 for Power 1; Pin 3/4 for Power 2 DC Jack Connector
DIP Switch	Standard Mode: In Standard Mode, all interfaces can communicate with each other, supporting a transmission distance of up to 100 meters with an adaptive transmission rate of 10/100Mbps. Extend Mode: In Link Extension Mode, data transmission on port 1-4 can reach up to 250 meters, with a reduced transmission speed of 10Mbps to ensure signal stability over long distances.
LED	1 x LED for system and power: Green: DC Power 1 1 x LED for each copper port : Green: 10/100Mbps LNK/ACT
Power Requirements	12~55V DC redundant power with revise polarity protection
Power Consumption / Dissipation	Max. 0.55 watts/1.88 BTU (Power on without any connection) Max. 1.1 watts/3.75 BTU (Ethernet full loading)
Dimensions (W x D x H)	30.2 x 76.1 x 100 mm
Weight	266g
Enclosure	IP40 metal case
Installation	DIN-rail kit and wall-mount ear
ESD Protection	6KV
EFT Protection	6KV
Network Cables	10/100BASE-T Cat. 3, 4, 5, 5e, 6 UTP cable (max. 100 meters) EIA/TIA-568 100-ohm STP (max. 100 meters)
Switch Specifications
Switch Processing Scheme	Store-and-Forward
Switch Fabric	1Gbps
Throughput (packet per second)	0.744Mpps@64bytes
Address Table	1K entries
Shared Data Buffer	448K bits
Flow Control	Back pressure for half duplex IEEE 802.3x pause frame for full duplex
Standards Conformance
Standards Compliance	IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3x Full-Duplex Flow Control IEEE 802.3az Energy Efficient Ethernet
Regulatory Compliance	FCC Part 15 Class A, CE
Stability Testing	IEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration)
Environment
Temperature	Operating: -40~75 degrees C Storage: -40~85 degrees C
Humidity	Operating: 10~90% Storage: 5~95% (non-condensing)
