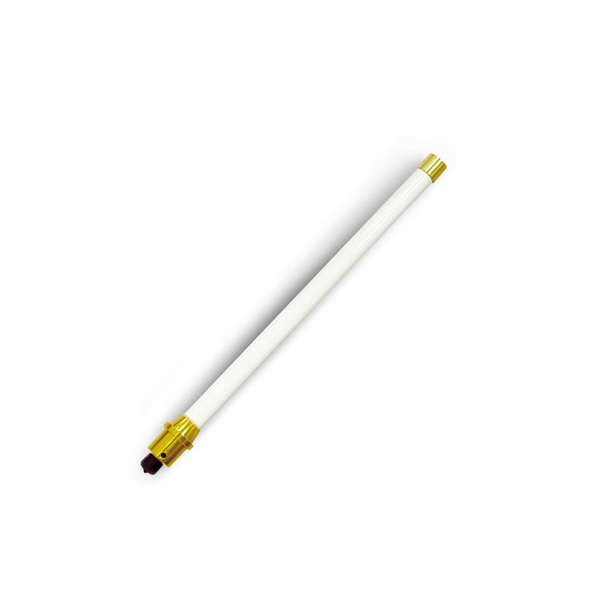

Planet ANT-OM8

8dBi Omni-directional Antenna



To commit itself to the wireless long distance connectivity, PLANET WireFree provides a variety of antennas, cables and other accessories for 2.4GHz and 5GHz ISM band applications where more RF gain power is required to increase the convergence of the installations in the wireless state.

• 360 degrees Horizontal Spread & 10 degrees Vertical Spread
• Connector: N-female
• Operating environment: outdoor



Specifications :

Product
Frequency	2400-2485MHz
Antenna Type	Omni-directional, General purpose
Gain (dBi)	8
SWR	<=1.3
Beamwidth Degree	Horizontal 360 Vertical 10
Mounting Type	Mast mount
Operating Temperature	-40 ∼ 70 degrees C
