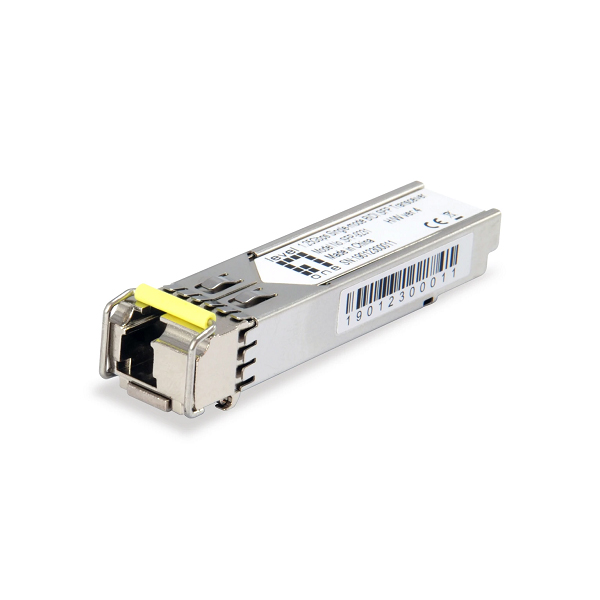

Levelone SFP-9231

1.25Gbps SM 10km 1550/1310 BIDI SFP Transceiver



Product Description :

• 1.25Gbps Bi-directional single fiber link
• IEEE 802.3z Gigabit Ethernet compliant
• Provides duplex LC connector
• Compatible with SFP Multi-Sourcing Agreement (MSA) standards
• Hot-swappable providing non-stop service
• RoHS compliant and Lead Free
• Supports Digital Diagnostics Monitoring Interface (DDMI) for easy status monitoring

The LevelOne SFP-9231 is a high performance, costeffective SFP transceiver. It provides up to 1,25 Gbps bi-directional data transfer rate at distances up to 10km on a single fiber core. These bi-directional SFP Transceivers allow data transfer in either direction through a single optical fiber by employing separate wavelengths travelling in either direction.

The SFP-9231 transmits using a wavelength of 1550nm and receives using a wavelength of 1310nm. When coupled with the LevelOne SFP-9221 transceiver which transmits at and receives at the opposite rates (1310nm TX and 1550nm RX) you get bi-direction data communication on a single fiber core.

The LevelOne SFP-9231 is, therefore, an optimal solution for a high number of fiber lengths in only a few fibers.



Specifications :

Power.
Power consumption.	1000 mW
General.
Model Number.	SFP-9231
Features 1.
Features.	• DDM (Digital Diagnostics Monitoring) • Hot-swappable
Others new
Approval and Compliance	CB, CE, FCC, FDA, RoHS, TÜV, UL
Performance 2.
Receiver sensitivity.	-20 dBm
Physical Specifications new
Color	Silver
Dimensions (W x D x H mm)	56 x 13 x 11 mm
Product Net Weight	18 gram
Miscellaneous.
Fiber Optical Mode.	Single-Mode
Transceiver Type.	BIDI SFP
Grade.	Commercial
System Specifications.
Data rate.	1.25 Gbps
Optical transmission power (dBm).	-9 to -3 dBm
Wavelength (nm).	TX 1550nm / RX 1310nm
Others.
Operating humidity.	5% RH ~ 85% RH
Operating temperature.	0°C ~ 70°C
Storage humidity.	5% RH ~ 85% RH
Storage temperature.	-40°C ~ 85°C
Package Contents.	• SFP-9231 • Quick Installation Guide • Declaration of Conformity
