Levelone POS-1002 POE SPLITTER

฿900.00 บาท (รวมภาษี)

รหัสสินค้า: POS-1002

มีสินค้าอยู่ 200

Levelone POS-1002

PoE Splitter



Product Description :

  • High Power Midspan PoE compliant to simplify deployment and installation
  • Multiple PoE repeaters can be deployed by daisy chain to extend range
  • Converts non-PoE devices with Power over Ethernet support

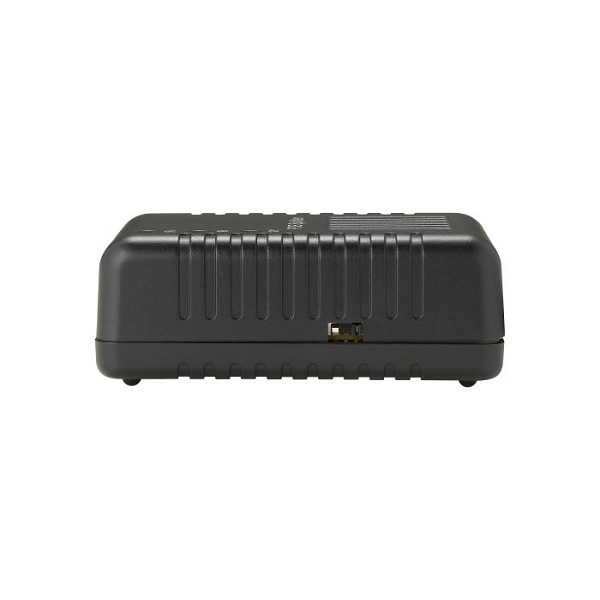

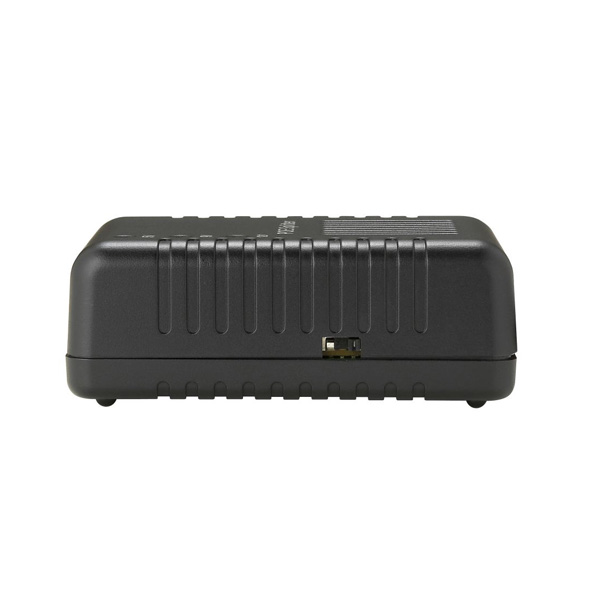

  • DIP switch for 5V, 9V, and 12V adjustable output power
  • Delivers power and data via a single Ethernet cable
  • Light weight and compact size

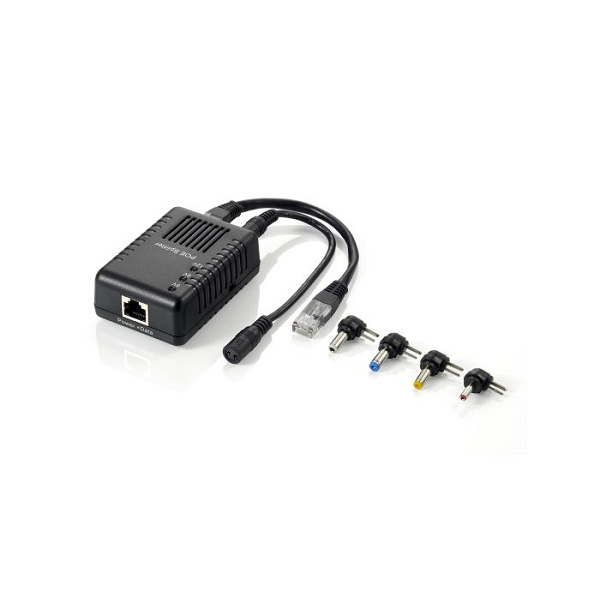

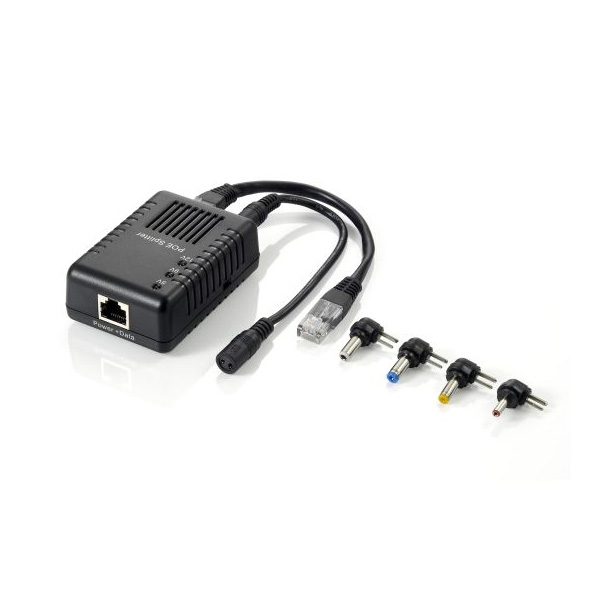

  • Provides interchangeable tips
  • IEEE 802.3af compliant

The LevelOne POS-1002 PoE Splitter splits a networked PoE signal into a separate power and Fast Ethernet data sources. This device allows administrators to run Fast Ethernet speed PoE cables over long distances, and then split the PoE signal into a separate data and power sources in order to runnon-PoE devices. This active PoE splitter is available in the following output voltages (5V,9V or 12V).Save installation and equipment cost when installing access points, IP cameras andother devicesin remote locations,with no need to install network devices near a power outlet. This compact splitter safeguards valuable network equipment with short circuit protection and quickly creates an integrated PoE and non-PoE network at Fast Ethernet speeds.



Specifications :

Port Configuration

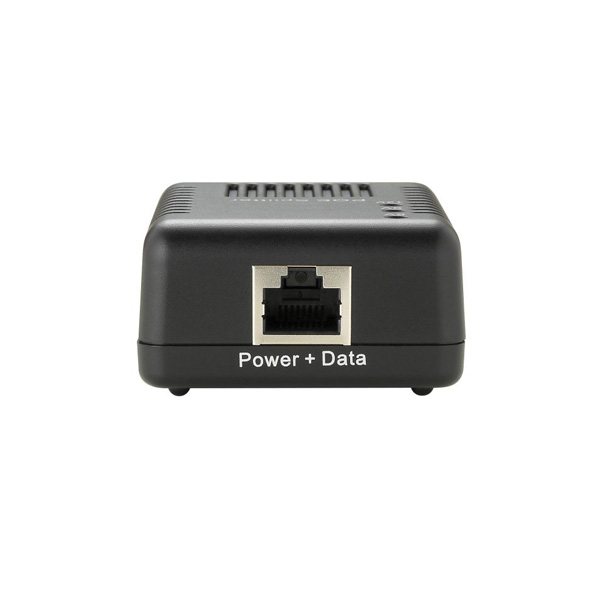

Data power RJ45 1
Data RJ45 1
Power.
Power consumption. <3W
A Testing Group – No Maintain, To be Deleted
Harmonized System (HS) code. 851762
Customs product code (TARIC). 8517620000
EAN. 4015867160701
General.
Color. Black
Model Number. POS-1002
Features 1.
Features. DC Pin:
(White )5.5*2.5*12 mm , (Blue)5.5*2.1*12 mm ,(Yellow) 4.8*1.7*12 mm ,(Red) 3.5*1.3*12 mm,
PoE Features. Output type VDC 5V/9V/12V.
Others.
Approval and Compliance. CE/FCC/RoHs
Operating humidity. 5% RH ~ 95% RH
Operating temperature. 0°C ~ 45°C
Package Contents. POS-1002
Quick Installation Guide
Physical Specifications.
Dimensions (W x D x H). 55 x 80 x 31 mm
Product weight (kg). 0,076
System Specifications.
Indicators. DC Power (Green)
Port Configuration. DC/RJ-45 (10/100 Mbps )
Standard. IEEE 802.3 10Base-T, Ethernet
IEEE 802.3u 100Base-TX, Fast Ethernet
IEEE 802.3af Power over Ethernet (PoE)
