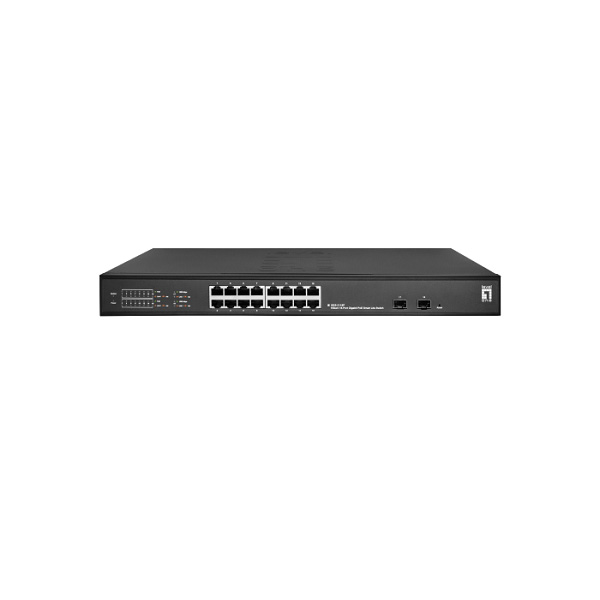

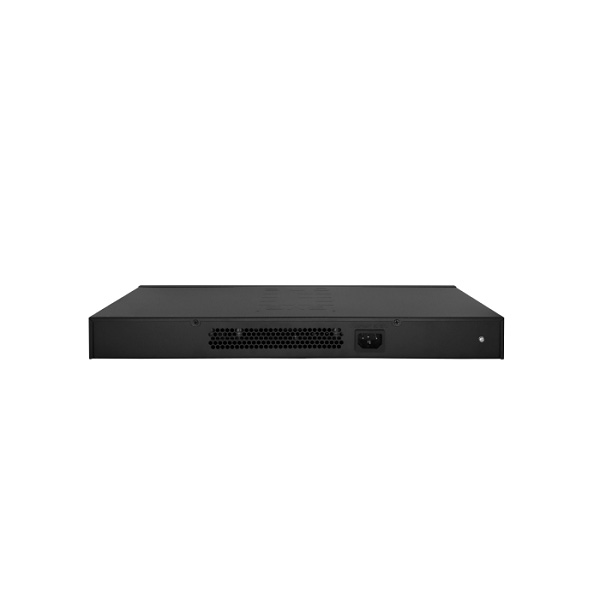

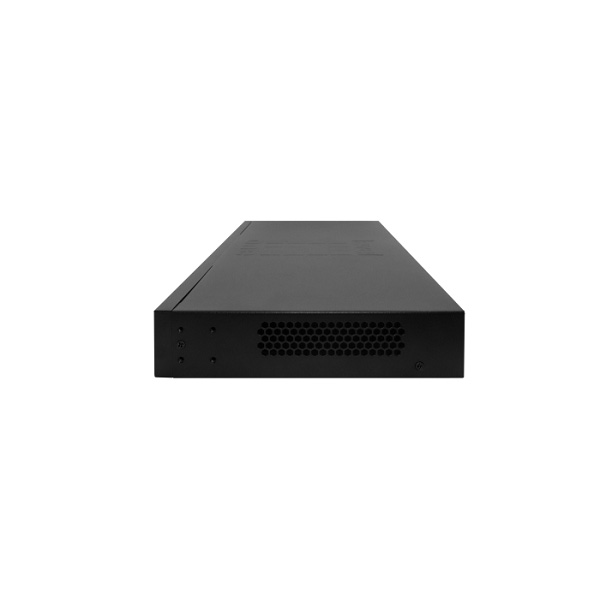

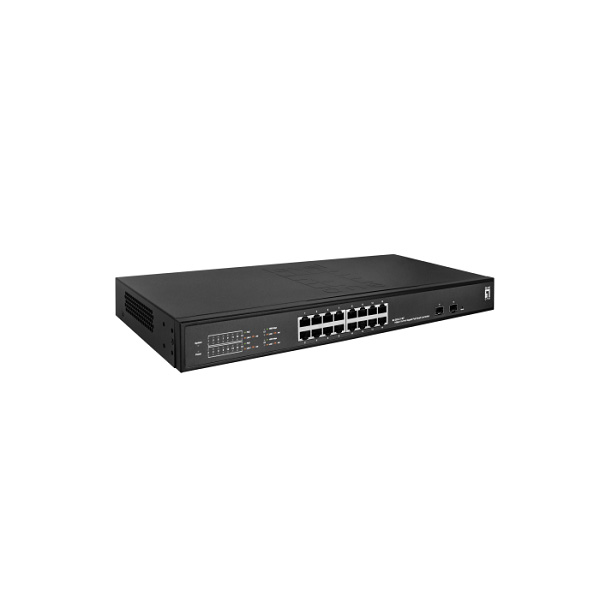

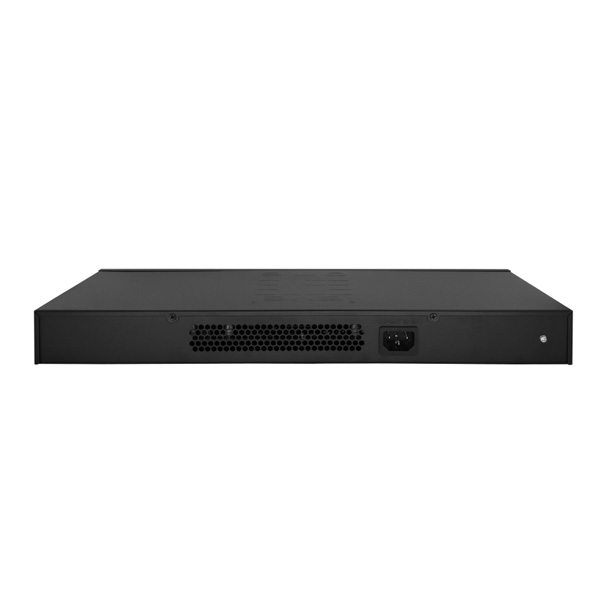

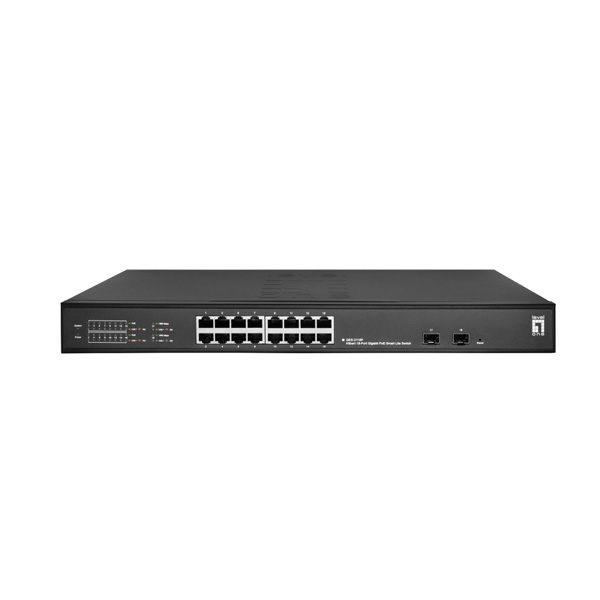

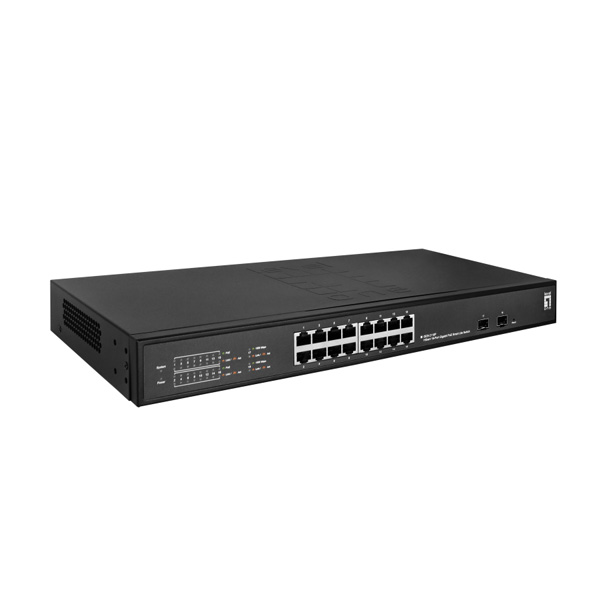

Levelone GES-2118P

16 x PoE + 2 x 100M/1G SFP L2-lite Managed PoE Switch

Product Description :

16 PoE-Plus Gigabit Ethernet ports supports PoE Watchdog and 2 Gigabit SFP
Total PoE power budget: 230W, up to 30W per port
IEEE 802.3af/at PoE compliant to simplify deployment and installation
Supports 8K MAC address auto-learning and auto-aging
9K jumbo frames to increase data transfer rates
IP Multicast Filtering through IGMP Snooping V1 / V2
802.1Q tag-based VLAN allows network segmentation to enhance performance and security
IEEE 802.1p QoS with 4 priority queues
Supports unknown unicast / broadcast / multicast storm control
Minimize carbon footprint with advanced energy efficient technology (IEEE 802.3az)
4KV surge protection, 6KV contact / 8KV air ESD protection
Web-based and smart lite Management
Supports LevelOne IP Locator for easier IP management.

The LevelOne GES-2118P Hilbert gigabit PoE smart lite switch is a next-generation Ethernet Switch offering powerful better PoE functionality and usability that delivers the cost-effectively business and transports Ethernet services via fiber or copper connections. GES-2118P delivers 16 (10M/100M/1G) RJ45/PoE+ (Support 802.3at/af, and total up to 230W) ports and 2 Gigabit SFP ports. can be matched with the latest LevelOne IP Locator, the software is the easiest to use switch discovery tool, it can search all Hilbert series switches, instantly know the forgotten IP and other info. Compatible with mainstream Windows and Mac operating systems.

The LevelOne GES-2118P provides high HW performance and environment flexibility for Enterprises. GES-2118P is ideal to deliver management simplicity, optimum user experience, and lower total cost of ownership.

Specifications :

Power.
Power consumption.	250W (full loading/PoE on)
A Testing Group – No Maintain, To be Deleted
Harmonized System (HS) code.	851762
Customs product code (TARIC).	8517620000
EAN.	4015867229224
General.
Model Number.	GES-2118P
Features 1.
Features.	L2 Switching Features ● IGMP Snooping ● Link Aggregation (Supports static link aggregation) ● Port Mirroring ● Cable Test VLAN ● Supports up to 32 VLANs (out of 4K VLAN IDs) ● MTU/Port/802.1Q VLAN Quality of Service (QoS) ● Support Port-based/802.1p/DSCP priority ● Support 4 priority queues ● Rate Limit ● Storm Control
Management.	● Web-based Graphic User Interface (GUI) ● Supports LevelOne IP Locator for easier IP management.
Others.
Approval and Compliance.	● CE ● UKCA ● FCC Part 15, Subpart B Class B ● RoHS
Operating humidity.	10% RH ~ 90% RH
Operating temperature.	0°C ~ 45°C
Storage humidity.	5% RH ~ 95% RH
Storage temperature.	-40°C ~ 70°C
Package Contents.	● GES-2118P ● Power Cord ● 19″ Rack Mount Kit ● Quick Installation Guide ● Declaration of Conformity
Performance 2.
Switching capacity.	36 Gbps
Physical Specifications.
Dimensions (W x D x H).	440 x 190 x 44.5 mm
Product weight (kg).	2.4 kg
Miscellaneous.
PoE Power Budget.	Total 230.00
PoE Supported.	Yes
Concurrent ports.	Total 18.00
Fanless.	No
Manageable.	Yes
Series.	HILBERT series
Grade.	Commercial
System Specifications.
Acoustic noise (dB).	30 dB (A)
Backplane (Gbps).	36
Data Rate.	1Gbps
Flash memory size.	2 MB
Packet forwarding rate.	26.784 Mpps
Heat dissipation.	81.89 (Btu/H)
Indicators.	Power, System, Link/Act, PoE
Jumbo frame (KB).	9 K
MAC address table.	8 K
Mount.	19″ rack mount, Desk mount
MTBF.	43,800 hrs
Packet buffer.	4.1 Mbits
Pin assignment and polarity.	1/2 (+), 3/6 (-)
Port Configuration.	16x 10/100/1000 Ethernet PoE+ ports, 2x 100/1000 SFP Ports
Power supply.	100-240 VAC, 50-60 Hz
Power supply included.	Yes
Standard.	● IEEE 802.3 10-BASE-T (Ethernet) ● IEEE 802.3u 100-BASE-TX (Fast Ethernet) ● IEEE 802.3ab 1000BASE-T (Gigabit Ethernet) ● IEEE 802.3z 1000BASE-X (Gigabit Ethernet) ● IEEE 802.3x Flow Control (full-duplex flow control) ● IEEE 802.3af Power over Ethernet (PoE) ● IEEE 802.3at Power over Ethernet Plus (PoE+) ● IEEE 802.3az: Energy Efficient Ethernet
