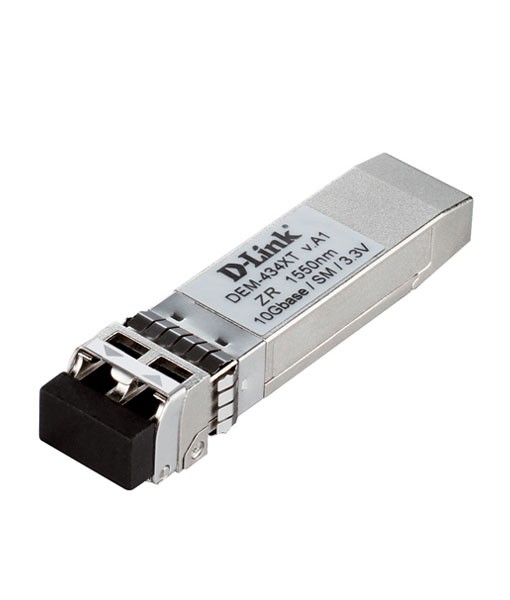

D-Link DEM-434XT

10GBase-ZR SFP+ Transceiver (Singlemode 1550nm) – 80km



Better 10G Ethernet Connectivity for Enterprise Deployments

D-Link’s 10G SFP+ Module series are hot-swappable SFP+ transceivers that plug into SFP+ slots on switches and support 10G Ethernet. The D-Link 10GBASE SFP+ Module Series transceivers offer customers a wide variety of 10G Ethernet connectivity options for data centers, enterprise wiring closets, and service provider transport applications.



10G Ethernet speeds

The transceivers all support 10G Ethernet, which results in very fast data transmissions of up to 10 Gbit/s. This is 10 times faster than Gigabit Ethernet and enables the switch to handle faster and higher data transmissions, making it very suitable for business needs.



Enhanced Small Form-factor Pluggable Format

The transceivers use the Enhanced Small Form-factor Pluggable format (SFP+). The SFP+ form factor is smaller than other form factors such as Xenpak, X2, and 10G XFP, ensuring lower costs, lower power disruption, and higher port density. They provide the necessary signal amplification for data to be transmitted to the network cable from the port, and vice versa, for the port to receive data from the network cable.



Hot-Pluggable

All D-Link transceivers are hot-pluggable. You can connect a transceiver while the system is powered on without causing any problems. This allows modules to be added or removed without interrupting the network.



Specifications :

Standard
Standard Compliance		IEEE-802.3ae, 10GBASE-LR
Form Factor Type		SFP+
Fiber Media Support		Multi-Mode
Distance Capacity		20km
Features		Hot Pluggable MSA Compliant RoHS Compliant
Speed		10Gbps
Connector		Simplex LC Connector
Single/Bi-Directional		WDM Bi-directional
WavelengthTX		1330nm, RX: 1270nm
Output Optical Power (TX Optical Power)		Max.: 0.5dBm Min.: -5.2dBm
Input Optical Power (RX Optical Power)		Max.: 0.5dBm Min.: -12.5dBm
Sensitivity		-12.5dBm
Cable Type		Single-mode 9/125 um fiber
Power		3.3V
Maximum Input Current		3.3V: 300mA
Minimum Power Budget		7.3dB
Maximum Power Budget		13dB
Heat Generated		3.6kJ/h
MTBF (hours)		1,920,000
DDM (Digital Diagnostics Monitoring)		No
Operating temperature		-40 to 85°C
Storage temperature		-40 to 85 °C
Operating humidity		5 to 85%
Storage humidity		5 to 95%
Dimensions		Compliant with SFF8432 14.8 x 56.5 x 11.85mm
Weight		22g
Bail Latch Color		Blue
EMI		CE, FCC, VCCI
Safety		UL, TUV, CDRH
