FPS-1032

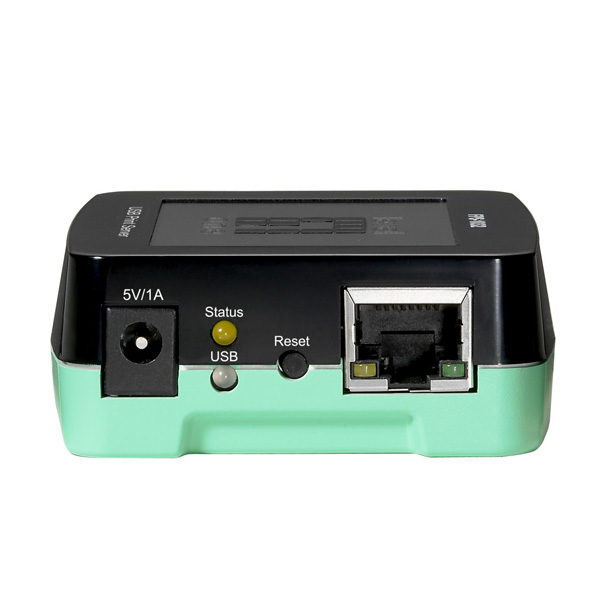

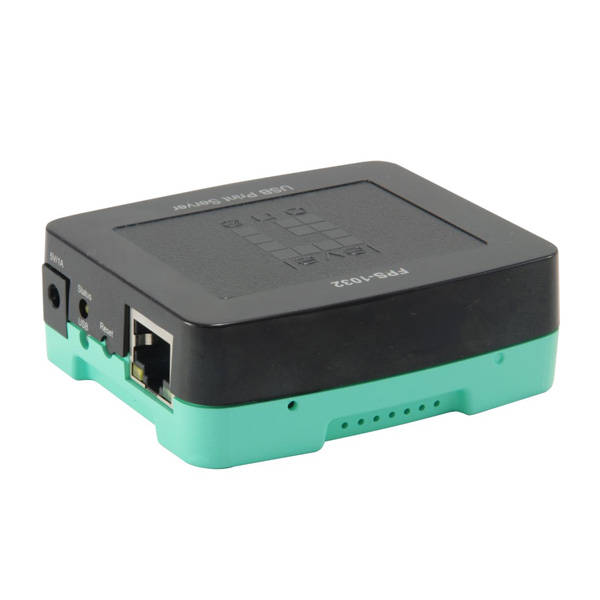

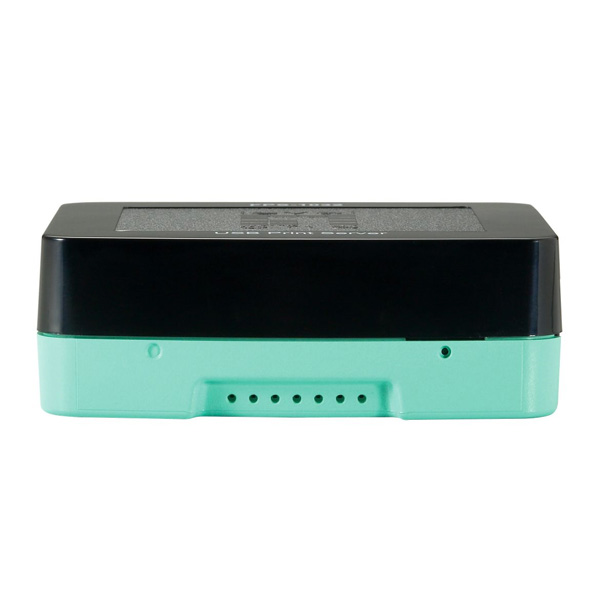

USB Print Server



Product Description :

• USB print server for network print sharing

• USB 2.0 interface

• Simple setup with user-friendly interface

• Support multiple network printing protocols

• Support multiple operating systems



The LevelOne FPS-1032 print server is an ideal network printing solution for small offices, home offices, schools and other businesses that require printer sharing over the same network. This print server is equipped with a 10/100Mbps autosensing Ethernet port and a USB 2.0 port that connects to USB printers.



Multi OS and Network Printing Protocol Support

The FPS-1032 is a print server with 1 USB port that supports Windows 7, 8 and 10 operating systems as well as Mac OS 8.1 and higher, UNIX/Linux and Netware (Bindery/NDS).

Network Protocol supported includes TCP/IP, IPX, NetBEUI, AppleTalk, LPR and SMB over TCP/IP for flexible use with different network clients connected to the same office network. The FPS-1032 also includes Internet Printing Protocol (IPP) support and Windows Print Monitor Technology to monitor printing jobs received.



Easy Installation Wizard

The LevelOne FPS-1032 is easily configurable using a Web Browser or the Windows based configuration program included with the CD-ROM. The print server is easily managed through a Web based user interface and the firmware is upgradeable through TFTP, the Windows set-up program or the Web based user interface.



Specifications :

Port Configuration
Fast Ethernet RJ45	1
General
Color	Black
EAN	4015867142233
Model Number	FPS-1032
Features
Features	Network Print Protocol Support : LPR,RAW TCP,IPP,SMB AppleTalk Netware Bindery/NDS Print Monitor printing
Miscellaneous
Printer Interface	USB
Others
Operating humidity	0% RH ~ 70% RH
Operating temperature	0°C ~ 45°C
Compatible operating systems	Windows ME/NT/2000/XP/2003/Vista/Win7 Mac OS 8.1 and higher UNIX/Linux and Netware (Bindery/NDS).
Approval and Compliance	CE, FCC
Storage humidity	0% RH ~ 80% RH
Storage temperature	-5°C ~ 65°C
Package Contents	FPS-1032 Netzadapter Quick Installation Guide Ressource CD (Bedienungsanleitung, Hilfsprogramm, QIG)
Physical Specifications
Product weight (kg)	0,52
Dimensions (W x D x H)	64.8 x 73.2 x 24.9 mm
System specifications
Power supply	Power adapter
Standards	IEEE 802.3, 802.3u Ethernet Standards
Indicators	LAN LED USB LED
Flash memory size	2 Mbytes
RAM size	16 Mbytes DDR2
