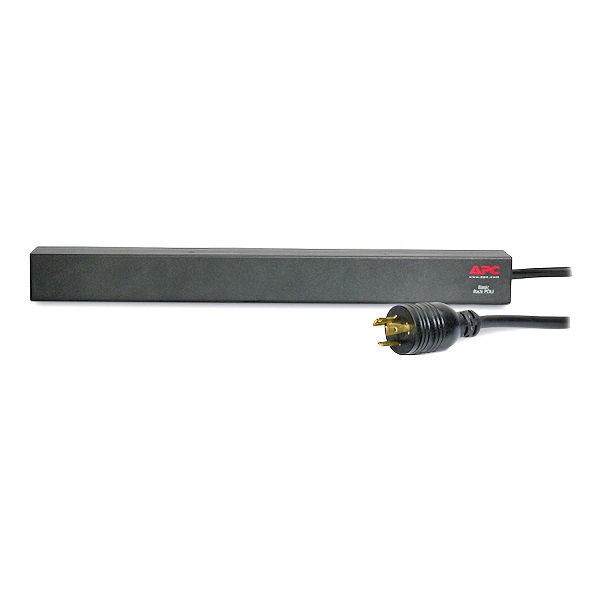

AP9566

APC NetShelter Basic Rack PDU, 1U, 16A, 208V, 12 C13 outlets



It is a basic rack PDU with a 1U horizontal mounting design. It supports a maximum input current of 20A and operates at 208V. The PDU features 12 IEC 60320 C13 outlets, providing ample connections for IT equipment. It includes a 12-foot power cord with a NEMA L6-20P plug. The unit is designed for reliable power distribution and includes an installation guide and rack mounting brackets.



Specifications :

Overview
———
Lead time: Usually in Stock

—–
Main
—–
Color: Black
Product or Component Type: PDU
PDU Type: Basic
Cord length: 11.98 ft (3.65 m)
Number of cables: 1
Provided Equipment: Installation guide, Rack Mounting brackets
Complementary Input Voltage: 200 V, 208 V, 230 V

———
Physical
———
Height: 1.7 in (44 mm)
Width: 17.6 in (447 mm)
Depth: 2.2 in (57 mm)
Net Weight: 5.5 lb(US) (2.5 kg)
Mounting Location: Front, Rear
Mounting preference: No preference
Mounting Mode: Rack-mounted
Rack units: 1U
Mounting position: Horizontal

——–
Input
——–
Input Plug Type: NEMA L6-20P
Line Rated Current: 16 A
Input current limits: 20 A
Load Capacity: 3328 VA
Input Frequency: 50/60 Hz

——-
Output
——-
Output Voltage: 208 V

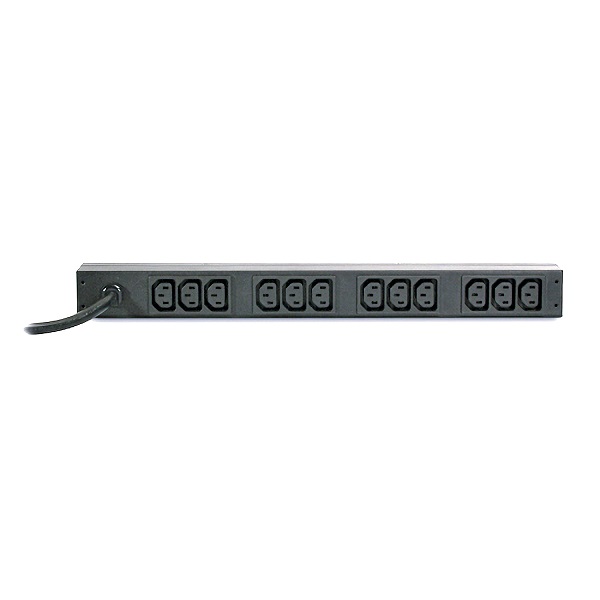

Outlet type and quantity: 12 IEC 60320 C13

———–
Environment
———–
Product Certifications: cUL Listed, UL Listed
Standards: UL 60950
Ambient Air Temperature for Operation: 32…113 °F (0…45 °C)
Relative Humidity: 0…95 %
Operating altitude: 0…10000 ft
Ambient Air Temperature for Storage: -13…149 °F (-25…65 °C)
Storage Relative Humidity: 0…95 %
Storage altitude: 0…50000 ft (0…15240 m)

——————————–
Ordering and shipping details
——————————–
GTIN: 731304213048

—————
Packing Units
—————
Unit Type of Package 1: PCE
Nbr. of units in pkg.: 1
Package 1 Height: 2.8 in (7 cm)
Package 1 Width: 9.02 in (22.9 cm)
Package 1 Length: 18.3 in (46.4 cm)
Package weight(Lbs): 8.02 lb(US) (3.64 kg)
