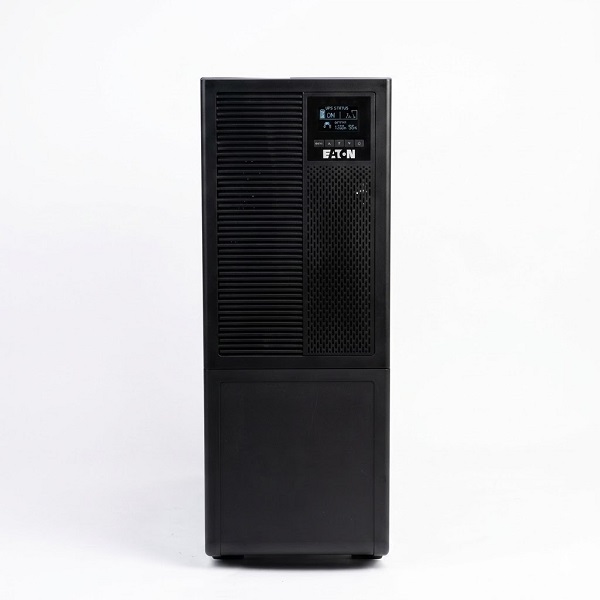

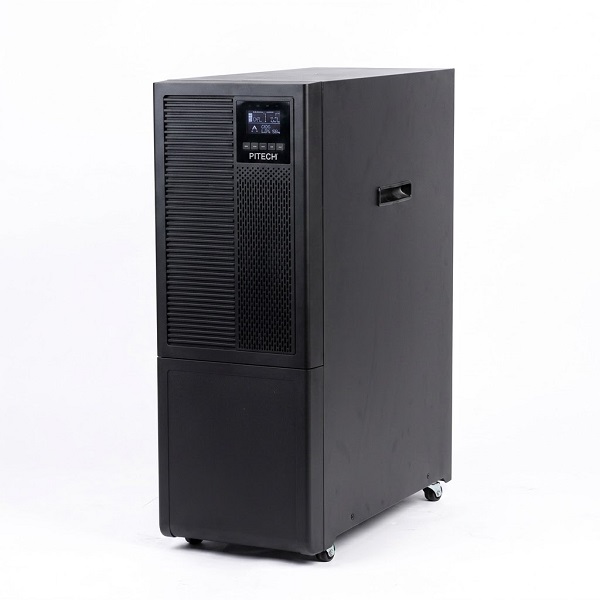

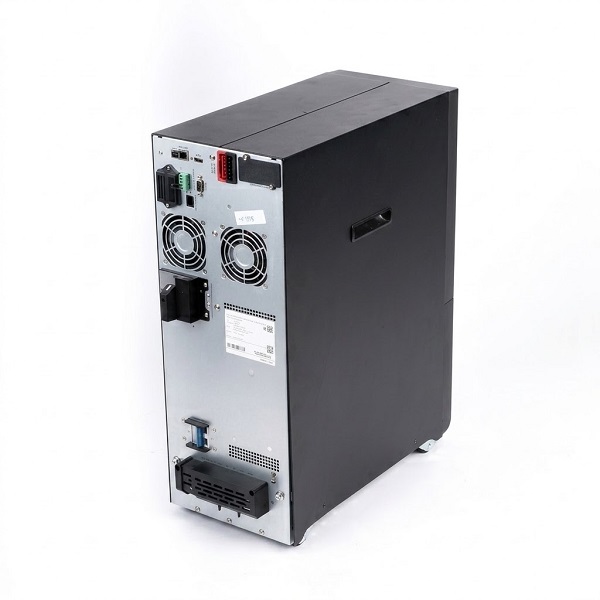

Syndome HE-10K-IOT

Features :

• DSP Control
• Parallel Redundancy up to 3 units
• Output PF 1.0 provide maximum power in compact size
• Wide Input Range 110-300VAC
• Online efficiency up to 95%, ECO up to 98%
• Frequency Converter Mode
• Input THDI < 5%
• Output THDv < 1% linear load
• Auto Self-Testing System
• Digital charger:0-4A adjustable / 0-12A adjustable
• Battery q’ty adjustable 16/17/18/19/20 per string
• Automatic detect additional EBM quantity for simplify
• 125% overload for 10 minutes
• Multiple Communication Port
• Wide operating environment 0-50 celsious
• Dot matrix LCD support up to 10 languages
• Mobile APP for monitoring, configuration, Support Android/IOS
• USB HID enable monitoring on UPS without software installation
• Build-in Maintenance Bypass Switch and Cabinet Wheel
• IP protection level: IP20
• Built-in Over Voltage Cut-Off device (OVCD) for Tough environment, fan lock detection, overtemp, overload warning to enhance the product reliability
• WLAN module for IoT connection, wireless connection (WIFI dongle) as optional
• Embedded Ethernet port solution for safe network connection to Cloud with IoT features trend

Specifications :

• ชื่อรุ่น : HE-10K-IOT
• กำลัง : 10000VA/10000W
• น้ำหนัก : 58.2 Kg. Ex. Batt
• ชนิดของแบตเตอรี่ : Sealed Lead Acid Maintenance Free
• ขนาด : 220 x 589 x 492 mm.
• Input : 110~ 300V 100% load, 110 ~ 160V derating to 50% load linearly
• Frequency Range : 50 / 60 Hz
• Output: 200/208/220/230/240 V ac ± 1% (Selectable)
• Transfer Time : 0 ms.
• Charging Time (to 90%): About 3 Hours
