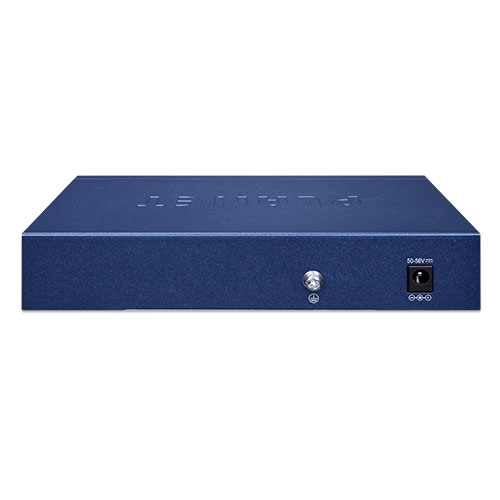

Planet POE-E304

1-Port 802.3bt PoE++ to 4-Port 802.3af/at Gigabit PoE Extender

Enhanced from the current highly-praised version, PLANET POE-E304 Version 3, 1-Port 802.3bt PoE++ to 4-Port 802.3af/at Gigabit PoE Extender adopts Airoha LAN controller solution. It come with original stable performance and one brand-new built-in solid DIP switch function with advanced features as follows:

Operates as switch architecture in the “Standard” operation mode
The “VLAN” mode operate as a Port-based VLAN isolation architecture
The ”Extend” mode makes port-1 to port-4, operates on a per-port basis at 10Mbps duplex operation but can transmit data over 250 meters distance

PoE Solution for Long-reach Distance

PLANET POE-E304 is a 1-Port 802.3bt PoE++ to 4-Port 802.3af/at Gigabit PoE Extender designed especially for the point to multipoint PoE application. The POE-E304 can obtain a maximum of 95-watt PoE power from IEEE 802.3bt PoE++ input port and supplies a maximum of 65-watt PoE power budget for 4 PoE output ports, extending both the reach of Gigabit Ethernet Data and IEEE 802.3af/802.3at Power over Ethernet over the standard 100m (328 ft.) Cat. 5/5e/6 UTP cable to 250m where up to 4 powered devices (PDs) can be powered at the same time. The POE-E304 provides a simple solution for adding PoE ports without running more cabling and achieves more flexible network applications without requiring an external power adapter.

DIP Switch for Operation Mode Selection

The POE-E304 offers “Standard”, “VLAN” or “Extend” mode. The POE-E304 operates as a normal Gigabit Ethernet Switch in the “Standard” operation mode.

The “VLAN” operation mode features port-based VLAN function that can help to prevent the connected clients’ multicast or broadcast storm from influencing each other.

In the “Extend” operation mode, the POE-E304 operates on a per-port basis at 10Mbps duplex operation but can transmit data over a distance of up to 250 meters overcoming the 100m limit on Ethernet UTP cable. With this brand-new feature, the POE-E304 provides an additional solution for distance extension, thus saving the cost of Ethernet cable installation.

DIP Switch Mode	Function
Standard (default)	This mode makes the POE-E304 operate as a general switch and all ports operate at 10/100/1000Mbps auto-negotiation.
VLAN	This mode makes the POE-E304 operate as a VLAN isolation switch and 1. Port 1 to port 4 will isolate respectively. 2. Port 1 to port 4 can only communicate with port 5 (uplink port).
Extend	This mode makes the POE-E304 operate as a distance extension switch and port 1 to port 4 can only transmit distance of 250m at speed of 10Mbps.

Plug and Play, Easy Cabling Installation

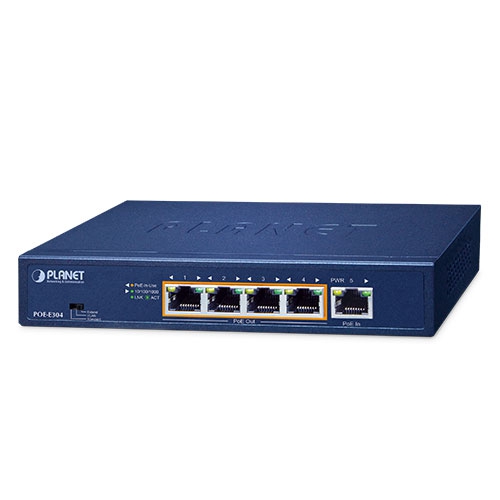

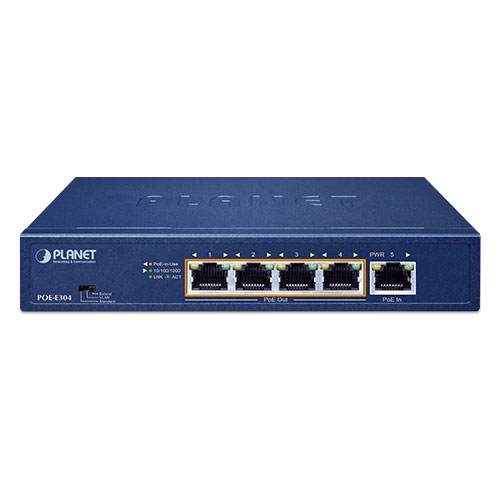

The POE-E304 can be easily installed by way of Plug and Play. It is used between a power source equipment (PSE) and the PD. The POE-E304 injects power to the PD without affecting the data transmission performance. The POE-E304 offers a cost-effective and quick solution to doubling the standard range of PoE from 100 to 250 meters. The POE-E304 is designed in a compact box containing 5 RJ45 ports, of which 1 “PoE IN” port functions as PoE (Data and Power) input and 4 “PoE OUT” ports on the other side functions as PoE (Data and Power) output. The “PoE OUT” port is also the power injector where DC voltage is transmitted over Cat. 5/5e/6 cable, and data and power are simultaneously transferred between the PSE and PD.

Specifications :

Hardware Specifications
Network Connector	PoE In Port 1 x 10/100/1000BASE-T Ethernet with 802.3bt PoE++ “Data + DC” in Auto MDI/MDI-X, auto-negotiation RJ45 connector PoE Out Port 4 x 10/100/1000BASE-T Ethernet with IEEE 802.3af/at PoE “Data + DC” out Auto MDI/MDI-X, auto-negotiation RJ45 connector
Switch Architecture	Store-and-Forward switch architecture
MAC Address Table	2K MAC address table with auto learning function
Packet Buffer	1 Mbits
Switch Fabric	10Gbps
Switch Throughput	7.44Mpps @ 64Bytes
Flow Control	IEEE 802.3x pause frame for full duplex Back pressure for half duplex
Jumbo Frame	16Kbytes
Enclosure	Metal case
Installation	Desktop/Wall mountable
Dimensions (W x D x H)	168 x 94 x 32 mm
Weignt	415g
ESD Protection	±8KV air gap discharge ±6KV contact discharge
Power Requirements	PoE In: IEEE 802.3bt or 4-pair 802.3at PoE+ compliant with voltage within 50V-56V DC External DC: 50~56V DC
Power Consumption	Max. 1.1 watts / 3.75 BTU (Power on without any connection) Max. 69.3 watts / 236 BTU (Full loading with 802.bt PoE++ Switch Input)
LED	System PWR (Amber) PoE Input Port (Port 5): 10/100/1000 LNK/ACT (Green) PoE Output Ports (Ports 1~4): 10/100/1000 LNK/ACT (Green) PoE: Power-in-use (Amber)
DIP Switch	Multi-operation mode options (Standard/VLAN/Extend) selection
Power over Ethernet
PoE Standard	PoE in Port IEEE 802.3bt PoE++ Type 4 standard PD IEEE 802.3at PoE+ end-span/mid-span PD Per PoE out Port IEEE 802.3at Power over Ethernet Plus end-span PSE
PoE Power	PoE in Port 50~56V DC, max. 95 watts Per PoE out Port 49~55V DC, max. 30.8 watts
Power Pin Assignment	PoE in Port 1/2(-), 3/6(+), 4/5(+), 7/8(-) or 1/2(+), 3/6(-), 4/5(+), 7/8(-) Per PoE out Port 1/2(-), 3/6(+)
PoE Power Budget	65 watts (max.) @ 802.3bt PoE++ Type 4 input
Standards Conformance
Regulatory Compliance	FCC Part 15 Class A, CE
Standards Compliance	IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3x Flow Control IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3bt Power over Ethernet Plus Plus IEEE 802.3az Energy Efficient Ethernet(EEE)
Environment
Operating	Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing)
Storage	Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing)
