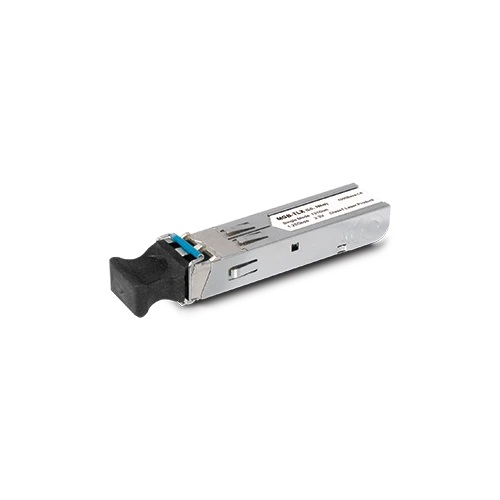

Planet MGB-LX

SFP-Port 1000BASE-LX mini-GBIC module – 20km



Features :

• Complies with the IEEE 802.3ab/802.3z Gigabit Ethernet standard
• One 1000Mbps LC fiber port
• Duplex LC connector
• Differential PECL inputs and outputs
• Single power supply 3.3V
• TTL signal detection indicator
• Hot pluggable
• Class 1 laser product complies with EN 60825-1
• Plug and Play Installation

The MGB family of the SFP Gigabit Ethernet module can be installed into PLANET Switch and Media Converter products with 1000BASE-LX SFP interface. The deployment distance can be 20 kilometers (Single-mode, LC). The SFP transceivers are hot-pluggable and hot-swappable. You can plug in and pull out the transceivers to/from any SFP port without having to power off the Switch/Media Converter.

The MGB-LX 1000BASE-LX transceiver is an ideal solution for -40℃ to 75℃ wide temperature industrial equipment with 1000BASE-LX SFP interfaces.



Specifications :

MGB-LX
PHY Type	IEEE 802.3z 1000BASE-LX
Fiber Type	Single-Mode
Connector	Dual LC/UPC
DDM	YES
Wavelength	1310nm
Maximum Distance	20km
Operating Temperature	0~60 degrees C
