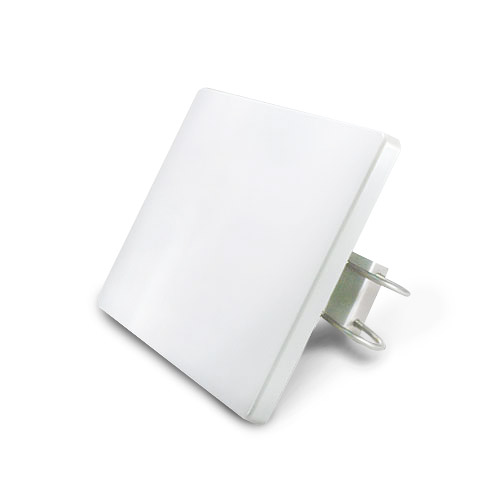

Planet ANT-FP18A

5GHz 18dBi Flat-Panel Direction Antenna



Product Description :

To commit itself to the wireless long distance connectivity, PLANET WireFree provides a variety of antennas, cables and other accessories for 2.4GHz and 5GHz ISM band applications where more RF gain power is required to increase the convergence of the installations in the wireless state.

• 10 degrees Horizontal Spread and 10 degrees Vertical Spread
• Connector: N-female
• Operating environment: outdoor



Specifications :

Product
Frequency	5100-5900MHz
Antenna Type	Uni-directional, flat panel
Gain (dBi)	18
SWR	<=2.0
Beamwidth Degree	Horizontal 10 Vertitcal 10
Mounting Type	Pole or wall mount
Operating Temperature	-40 ∼ 70 degrees C
