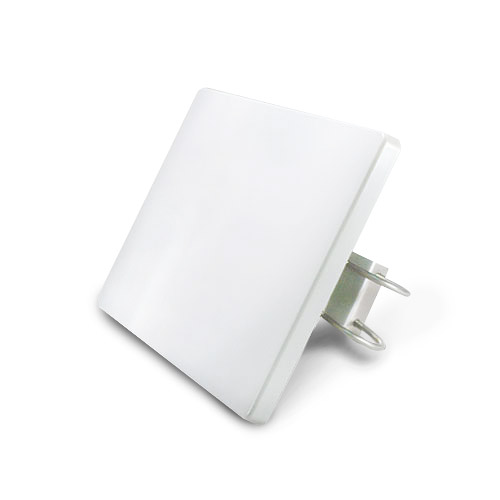

Planet ANT-FP18

2.4GHz 18dBi Flat-Panel Direction Antenna



Product Description :

To commit itself to the wireless long distance connectivity, PLANET WireFree provides a variety of antennas, cables and other accessories for 2.4GHz and 5GHz ISM band applications where more RF gain power is required to increase the convergence of the installations in the wireless state.

• 30 degree Horizontal Spread and 20 degrees Vertical Spread
• Connector: N-female
• Operating environment: outdoor



Specifications :

Product
Frequency	2400-2485MHz
Antenna Type	Uni-directional, flat panel
Gain (dBi)	18
SWR	<=1.5
Beamwidth Degree	Horizontal 30 Vertitcal 20
Mounting Type	Wall mount
Operating Temperature	-40 ∼ 70 degrees C
