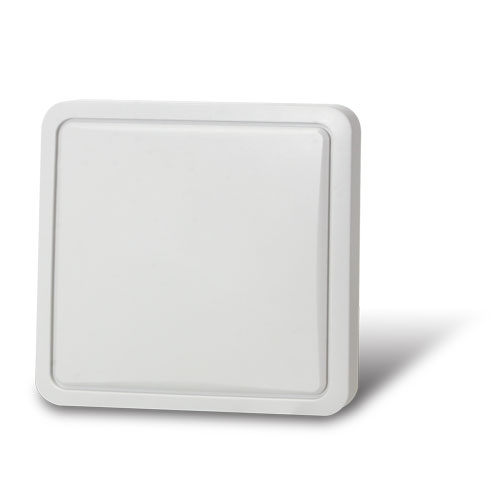

Planet ANT-FP14AD
5GHz 14dBi Flat Panel Dual Polarization Directional Antenna
Product Description :
PLANET ANT-FP14AD 5GHz 14dBi Flat Panel Dual Polarization Directional Antenna, with its compact housing and lightning protection system design, can be flexibly installed in any outdoor wireless environment to meet today’s wireless LAN requirements, such as wide wireless signal coverage and improved signal strength and quality.

- Designed to extend wireless coverage of 802.11a/n devices at frequency of 5GHz
- Intergrating two polarities into one antenna helps to reduce cost of deployment
- 14dBi high-gain antenna
- IP55-rated case
- Compact-sized housing and lightning protection system design

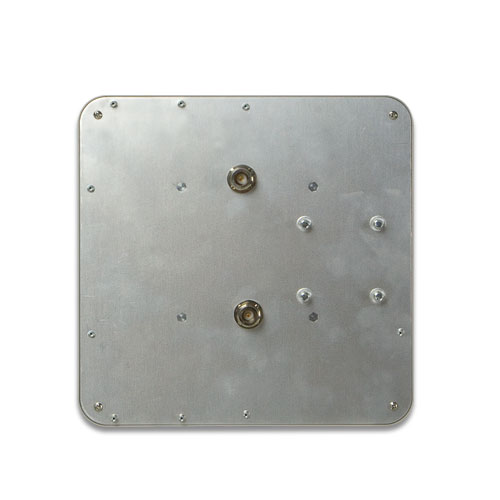

- Built-in two N-Type female connectors
- Easily-extended, point-to-point wireless covera
Specifications :
| Frequency Range | |
|---|---|
| Frequency Range | 5.15 ~ 5.85GHz |
| Max. Gain | 14dBi |
| Antenna Type | Uni-directional, flat panel |
| V.S.W.R. | <1.5 |
| Polarization | Horizontal and vertical (dual [polarization) |
| HPBW/Horizontal | 30 degrees |
| HPBW/Vertical | 30 degrees |
| Input Impedance | 50Ω |
| Connector | N-Type (female) x 2 |
| Environmental & Mechanical Characteristics | |
| Survival Wind Speed | Greater than 150mph |
| Temperature | -40 ~ 70 degrees C |
| Humidity | 95% @ 55 degrees C |
| Radome Color | Grayish-white |
| Radome Material | ABS, UV-resistant |
| Dimensions (W x D x H) | 228 x 15 x 228 mm (connector excluded) |
| Weight | 550g |
| Waterproof Rating | IP55 |

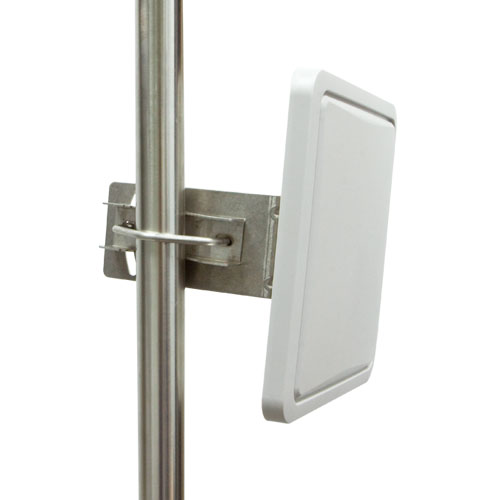

| Mount Type | Pole Mount |
