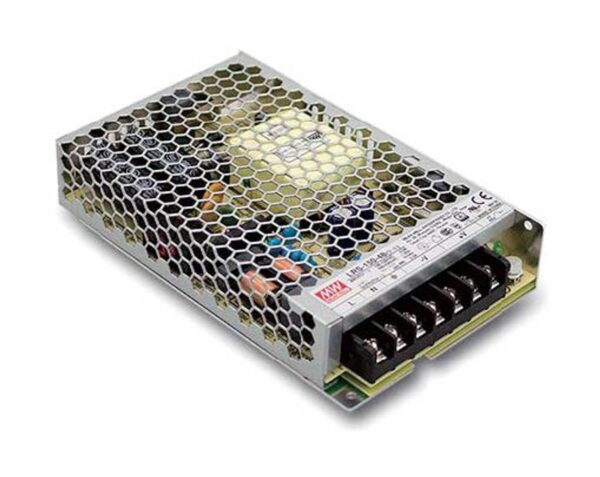

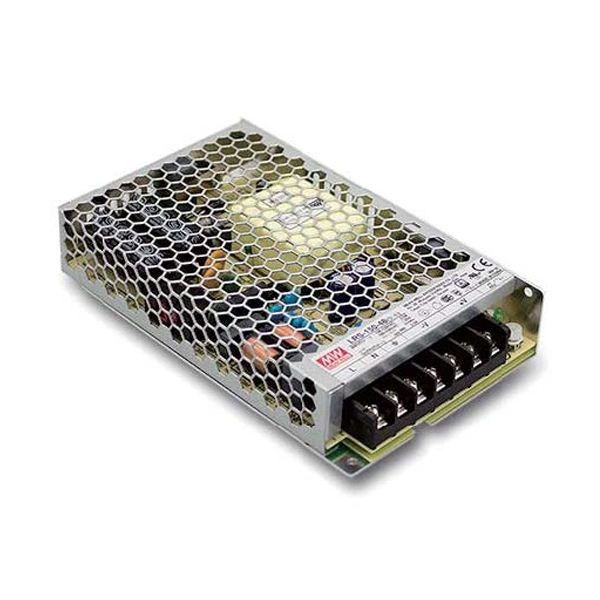

Meanwell LRS-150-12

150W 12V DC Industrial Power Supply



Product Description :

• AC input range selectable by switch
• Withstand 300VAC surge input for 5 second
• No load power consumption<0.5W
• Miniature size and 1U low profile
• High operating temperature up to 70°C
• Protections: Short circuit / Overload / Over Voltage / Over temperature
• Cooling by free air convection
• Compliance to IEC/EN 60335-1(PD3) and IEC/EN61558-1, 2-16 for household appliances
• Operating altitude up to 5000 meters
• Withstand 5G vibration test
• High efficiency, long life and high reliability
• LED indicator for power on
• Over voltage category III
• 100% full load burn-in test



Specifications :

Technical data
Brand	Mean Well
Item number	LRS-150-12
Series	LRS-150
Description	AC-DC Single output enclosed power supply; AC input select switch; Output 12Vdc at 12.5A; Up to 5G vibration; 1U low profile
Application	Household EN 60335 IT AV EN/UL/IEC 62368-1
Technology	AC/DC
Power Format	Box Type – Enclosed
Output Power (W)	150
Output Voltage (V)	12
Output Current (A)	12.5
Input Voltage (V)	170 – 264 85 – 132
IP Rating	No IP assigned
Width (mm)	97
Height (mm)	30
Depth (mm)	159
Dimming Technology	No Dimming
