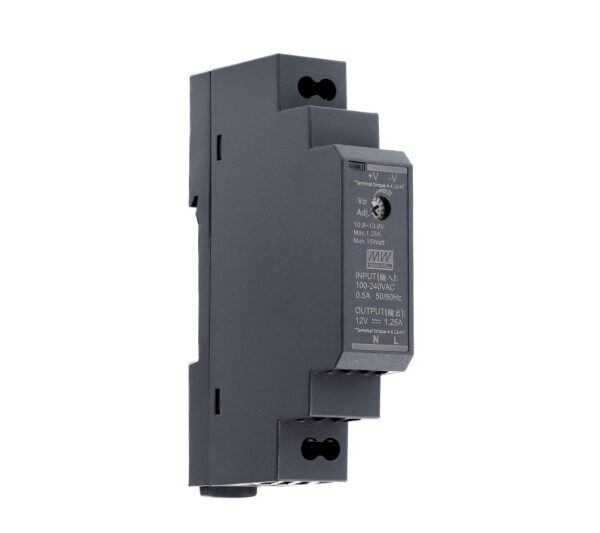

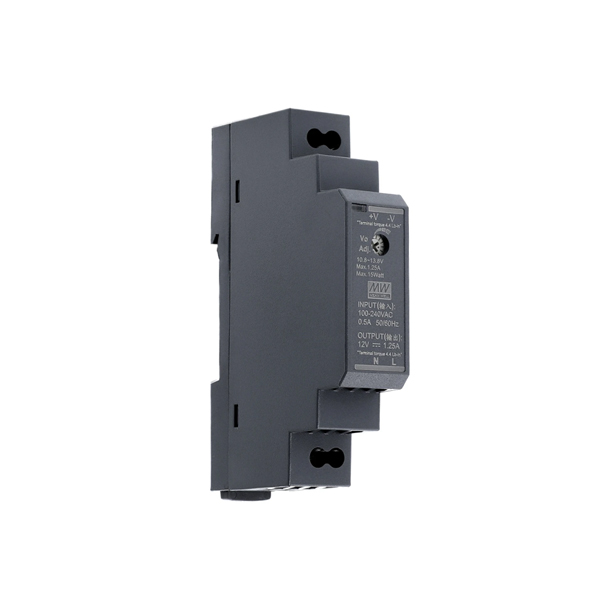

HDR-15-12

15W 12V DC Industrial DIN Rail Power Supply

Product Description :

• Ultra slim design 17.5mm (1SU) width
• Universal input 85~264VAC (277VAC operational)
• No load power consumption < 0.3W
• Isolation class II
• Pass Limited Power Source (LPS)
• Adjustable DC output voltage
• Short Circuit, Over Load, Over Voltage Protection
• Cooling by free air convection
• Operating Temperature -30~70C
• DIN Rail TS-35/7.5 or 15 mountable
• Over Voltage category III
• Power On LED Indicator

Specifications :

Technical data
Brand	Mean Well
Item number	HDR-15-12
Series	HDR-15
Description	AC-DC Ultra slim DIN rail power supply; Input range 85-264VAC; Output 12VDC at 1.25A; Pass LPS
Application	Installation UL 508 IT AV EN/UL/IEC 62368-1
Technology	AC/DC
Power Format	DIN rail
Output Power (W)	15
Output Voltage (V)	12
Output Current (A)	1.25 1.25
Input Voltage (V)	110/230 universal input 85 – 264
IP Rating	No IP assigned
Width (mm)	17.5
Height (mm)	90
Depth (mm)	54.5
Dimming Technology	No Dimming
