Levelone OSW-1061 8 x 1G POE RJ45 + 2 x 1G/100M SFP L2 Managed All-in-One Outdoor Cabinet

฿18,710.00 บาท (รวมภาษี)฿17,485.98 (ไม่รวมภาษี)

รหัสสินค้า: OSW-1061

มีสินค้าอยู่ 200

Product successfully added to the Quote List

Levelone OSW-1061

8 x 1G POE RJ45 + 2 x 1G/100M SFP L2 Managed All-in-One Outdoor Cabinet

Product Description :

Port configuration: 8 x 10/100/1000Mbps PoE RJ45 ports and 2 x Gigabit SFP uplink slots for flexible copper/fiber deployment
Simplified fiber handling: Includes 4 x SC fiber tray slots for neat and secure fiber organization inside the enclosure
PoE capability: IEEE 802.3af/at compliant with a total 185W PoE budget to power cameras, APs and other PDs
Extended reach: Supports 250m Extended PoE in 10Mbps mode to connect distant outdoor devices without extra repeaters
Industrial outdoor design: IP55-rated weatherproof enclosure for wall, pole or cabinet mounting in harsh environments
Robust protection: Built-in 6KV surge and 6KV contact / 8KV air ESD protection to reduce lightning and power spike damage
Reliable performance: Gigabit wire-speed forwarding with IEEE 802.3x Flow Control to help prevent packet loss
L2 managed features: Web-based management interface with a full suite of Layer 2 controls for small outdoor networks
Ideal applications: Designed for outdoor IP surveillance, wireless backhaul, remote buildings and industrial sites

The LevelOne OSW-1061 is a 10-port L2 managed Gigabit PoE switch engineered for outdoor and harsh industrial deployments. It provides 8 x 10/100/1000Mbps RJ45 PoE ports and 2 x Gigabit SFP uplink slots, delivering flexible copper and fiber connectivity for IP cameras, access points and other PoE-powered devices at the edge of the network.

Compliant with IEEE 802.3af/at, the OSW-1061 offers a generous 185W PoE power budget, allowing multiple high-power devices to be powered from a single switch. Extended PoE support up to 250 meters in 10Mbps mode helps reach distant devices without additional repeaters, while IEEE 802.3x Flow Control ensures reliable data transmission even under heavy load.

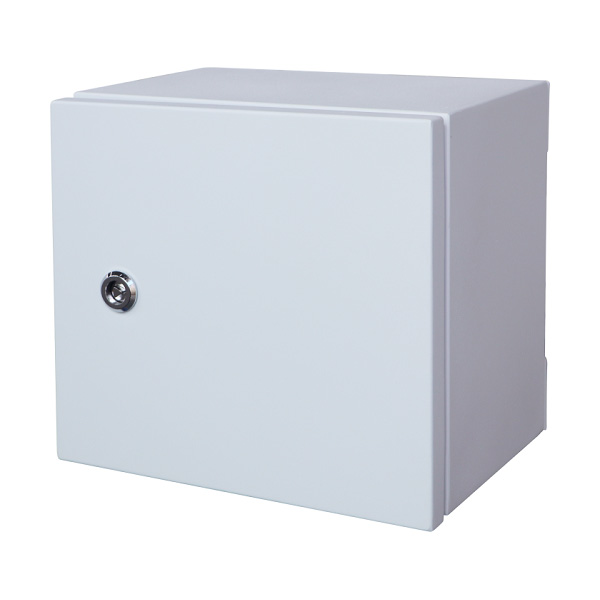

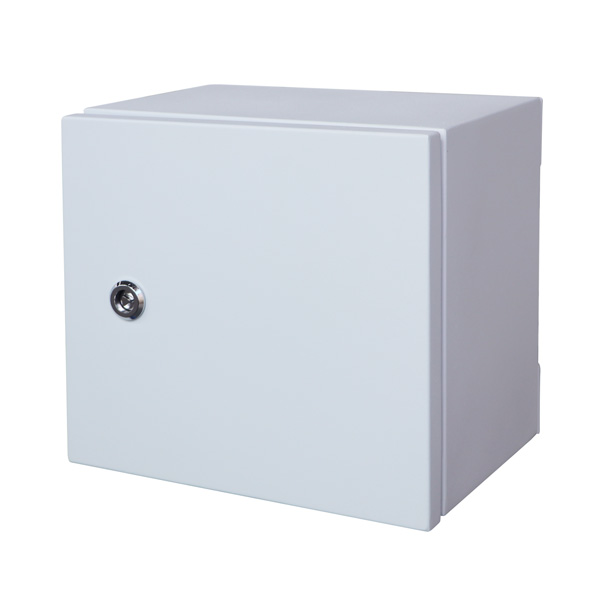

Housed in an IP55-rated weatherproof box, the OSW-1061 is built to withstand rain, dust and temperature variations in outdoor cabinets, on poles or on walls. Integrated 6KV surge and ESD protection helps safeguard connected equipment against lightning and electrical disturbances. With web-based management and a full suite of L2 features, the OSW-1061 simplifies configuration, monitoring and maintenance of outdoor surveillance, wireless backhaul and industrial automation networks.

Specifications :

Power.
Power consumption.	200 Watt
General.
Color.	White
Model Number.	OSW-1061
Features 1.
Features.	Quality of Service (QoS): ● Traffic classification based on IEEE 802.1p CoS ● IPv4/IPv6 precedence/ type of service (ToS) / DSCP based Rate Limiting – Ingress policer egress shaping and rate control Spanning Tree: ● Bridge Protocol Data Units (BPDU) IEEE 802.1D MAC Bridges ● IEEE 802.1d Spanning Tree Protocol (STP) ● IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) ● IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) ● Virtual Local Area Network (VLAN): 802.1Q tag-based VLAN – up to 4K VLANs and 4K VLAN IDs Port-based VLAN ● Port Isolation ● Port Mirror /Remote Mirror ● Broadcast / Multicast / Unknown Storm Control 802.1X ● ACL ● Port Security ● MAC Filter ● IP Source Guard SSH ● System Password protection NTP/SNTP ● Firmware upgrade /download (HTTP/TFTP/FTP) RMON/ SNMP ● Management Access (Console / SNMP/ Web / Telnet) Memory Flash Log ● Event /Error Log DHCP v4/v6 Snooping ● DHCP Snooping Option82
Physical Specifications.
Dimensions (W x D x H).	280x200x250
Product weight (kg).	8
Miscellaneous.
PoE Power Budget.	Total 185.00
PoE Supported.	Yes
Concurrent ports.	Total 10.00
Fanless.	No
Manageable.	Yes
Grade.	Industrial
System Specifications.
IP grade.	IP55
Backplane (Gbps).	20
Data Rate.	1Gbps
Flash memory size.	120
Packet forwarding rate.	14.88Mpps
Indicators.	Power/Link Act
Jumbo frame (KB).	9K
MAC address table.	8K

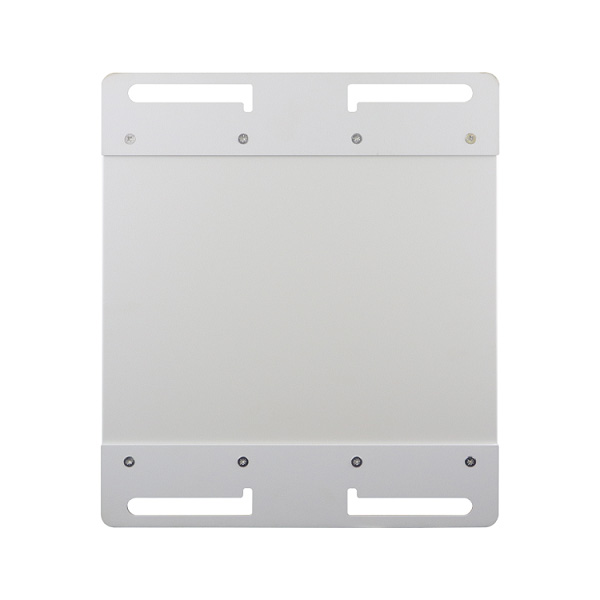

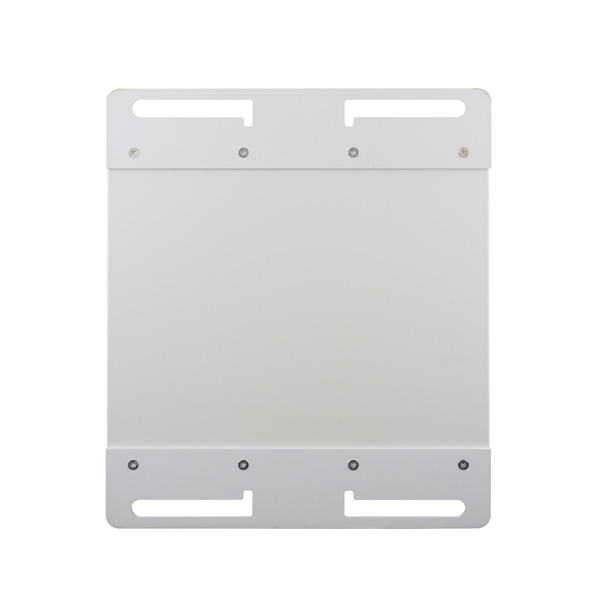

Mount.	Pole mount
MTBF.	4,000,000 hours
Pin assignment and polarity.	1/2 (+), 3/6 (-)

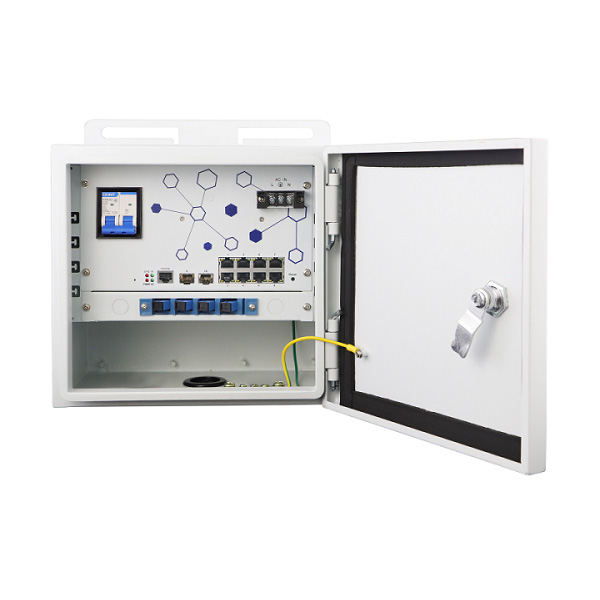

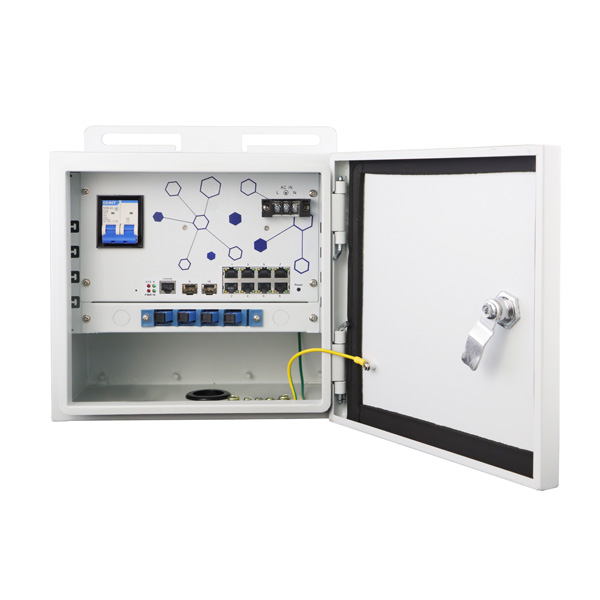

Port Configuration.	10/100/1000 Mbps PoE x 8, SFP x2 , SC Fiber Tray x4 , AC IN
Power input.	VAC100-240V, 50/60Hz
Power Output.	PoE output max. 185W
Power supply.	Industrial Power included
Power supply included.	Yes
RAM size.	1M
Standard.	● IEEE 802.3 10BASE-T ● IEEE 802.3u 100BASE-TX (Fast Ethernet) ● IEEE 802.3ab 1000BASE-T (Gigabit Ethernet) ● IEEE 802.3x Full Duplex and flow control ● IEEE 802.3z Gigabit Ethernet over Fiber-Optic ● IEEE 802.3ah OAM ● IEEE 802.3af Power over Ethernet ● IEEE 802.3at Power over Ethernet Plus ● IEEE 802.3bt Power over Ethernet ++ ● IEEE 802.1ag CFM (ITU-T Y.1731 Performance monitoring) ● IEEE 802.1s Multiple Spanning Tree (MSTP) ● IEEE 802.1X authentication ● IEEE 802.1ab (LLDP) ● IEEE 802.3ad Link aggregation control protocol ● IEEE 802.1w Fast Spanning Treel ● IEEE 802.1d Standard Spanning Tree ● IEEE 802.1p priority tags ● IEEE 802.3ah OAM ● IEEE 802.1ag CFM (ITU-T Y.1731 Performance monitoring) ● IEEE 802.1v Protocol-based VLAN ● IEEE 802.1Q tag-based VLAN – up to 256 VLANs and 1~4095 VLAN IDs
Others.
Approval and Compliance.	CE/FCC
Operating humidity.	0% RH ~ 90% RH
Operating temperature.	-20°C ~ 65°C
Storage humidity.	0% RH ~ 90% RH
Storage temperature.	-40°C ~ 75°C

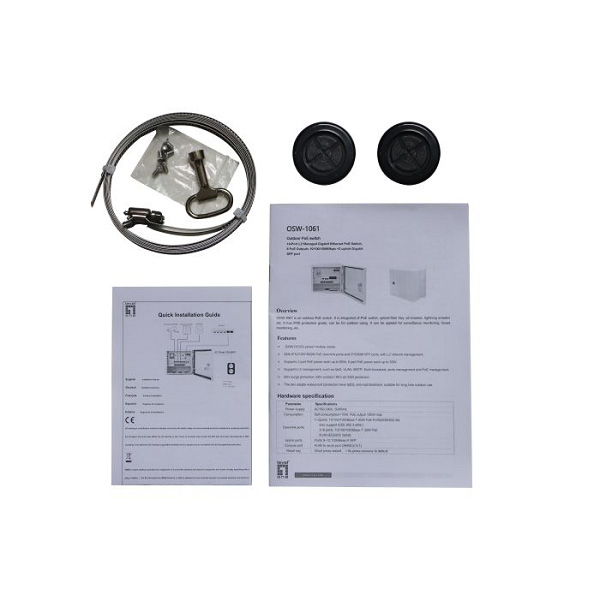

Package Contents.	QIG ECDoC Pole Mount Ring 7″ Waterproof Pad x 2 Box Key
Other Info
Harmonized System (HS) code.	851762
Customs product code (TARIC).	8517620000
EAN.	4015867236444
