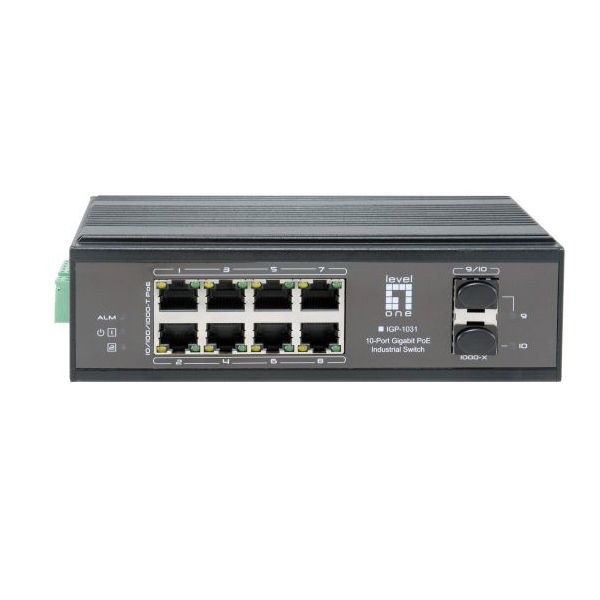

Levelone IGP-1031

8 x GbE 802.3at + 2 x 1G SFP Unmanaged Industrial PoE Switch



Product Description :

  • 10/100/1000Mbps wire speed transmission and reception
  • Built-in 8 PoE ports for PoE devices
  • 8 Gigabit Ethernet ports and 2 Gigabit SFP slots
  • 6KV surge protection level on each port
  • ESD and surge protection
  • Supports the PoE auto-check function,which is specially designed to solve the problems of equipment frozen. It can automatically detect the frozen PD equipment and restart the port’s output of PoE, and restart the PD device. It gently reduces the maintenance difficulty of engineering.
  • Powerful DIP switch button configuration for PoE Auto-Check, and Extension mode / Default mode / VLAN mode features.
  • Supports DIN-rail installation

LevelOne IGP-1031 Industry Ethernet Switch provides 8 PoE ports 10/100/1000Base plus 2 port Gigabit SFP to enable high speed network at mission-critical environment. With the industrial standard DIN-rail mount; this switch can be easily installed in the cabinet, plus the clearly visible status LEDs provide simple monitoring of port link activity. Moreover, the SFP slots support pluggable modules that enabling you to choose from a variety of transceivers. This switch is Power Sourcing Equipment (PSE), and it is fully complied with IEEE802.3af/at  PoE standard at maximum 30W each port power budget. It helps to save infrastructure wiring costs dramatically by eliminating electric wiring and less UPS needed. Also, it is compatible with IEEE802.3af standard PD devices.



Specifications :

Port Configuration
Gigabit RJ45/SFP combo 2
Gigabit RJ45 8
802.3af/at PoE 8
Power.
Power Redundancy. Dual Power Input
Power consumption. <15W without PoE
General.
Model Number. IGP-1031
Features 1.
Features. PoE Auto-check : If detect the frozen PD device, switch will restart it.
IEEE 802.3af/at
MTBF: 400k hours
Others new
Approval and Compliance CE, FCC
Physical Specifications new
Color Black
Dimensions (W x D x H mm) 165 x 114 x 50 mm
Product Net Weight 1000 gram
Miscellaneous.
PoE Power Budget. Total 240.00
PoE Supported. Yes
Concurrent ports. Total 10.00
Fanless. Yes
Manageable. No
Grade. Industrial
System Specifications.
Backplane (Gbps). 20
Data Rate. 1Gbps
Indicators. Power :Red
Act/Link :Green
10/100/1000 Green
PoE :Yellow
MAC address table. 8K

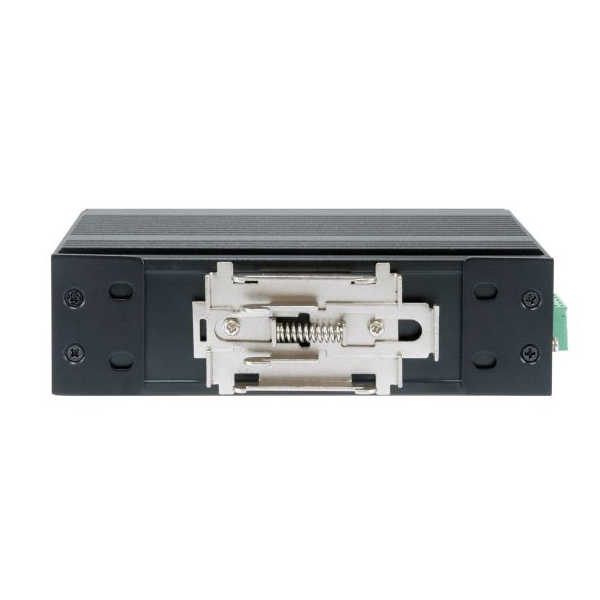

Mount. DIN rail mount
Packet buffer. 1M
Pin assignment and polarity. 1/2 (+), 3/6 (-)
Port Configuration. 8*10/100/1000 RJ-45(PoE), 2*1000 Mbps SFP

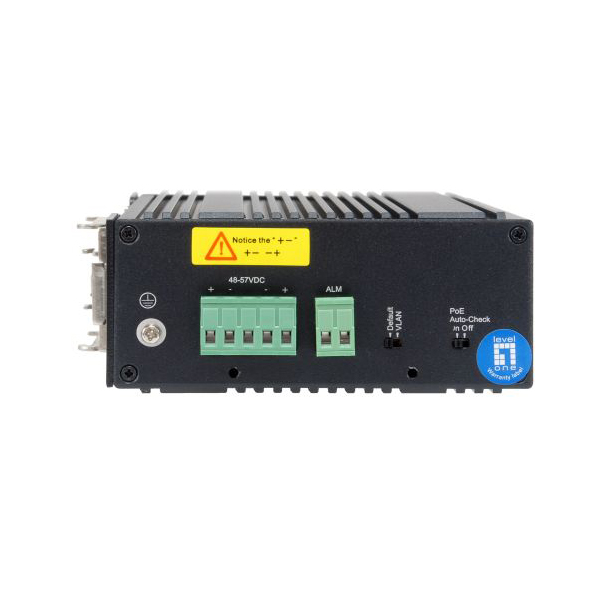

Power input. Redundant Dual DC 48V-57V
Power supply. VDC 48~57V
Power supply included. No
Standard. IEEE 802.3 10-BASE-T, Ethernet
IEEE 802.3u 100-BASE-TX, Fast Ethernet
IEEE 802.3ab 1000Base-T Gigabit Ethernet
IEEE 802.3z 1000Base-X Gigabit Ethernet
IEEE802.3x Flow Control and Back Pressure
IEEE802.3af for POE
IEEE802.3at for POE+
Others.
Operating humidity. 0% RH ~ 95% RH
Operating temperature. -40°C ~ 75°C
Storage humidity. 0% RH ~ 95% RH
Storage temperature. -40°C ~ 85°C
Package Contents. IGP-1031
Power Terminal Block
Quick Installation Guide
