Levelone IGP-0432 2 X GBE POE 802.3AT 30W + 2 X 1G SFP UNMANAGED INDUSTRIAL POE SWITCH
฿2,650.00 บาท (รวมภาษี)
รหัสสินค้า: IGP-0432
มีสินค้าอยู่ 200
Levelone IGP-0432
2 x GbE PoE 802.3at 30W + 2 x 1G SFP Unmanaged Industrial PoE Switch
Product Description :
- Industrial PoE Ports: 2 x 10/100/1000Base-T PoE ports and 2 x Gigabit SFP slots for flexible copper and fiber deployment
- PoE Power Budget: IEEE 802.3af/at compliant with up to 30W per port and 60W total PoE budget for IP cameras, APs and other PDs
- Gigabit Performance: 10/100/1000 Mbps wire-speed transmission with auto-negotiation and auto-MDI/MDIX on all copper ports
- Rugged Reliability: IP30 metal enclosure with -40°C to 75°C operating temperature for harsh industrial and outdoor environments
- Electrical Protection: 6KV surge protection plus ESD protection on each port to ensure stable operation in noisy power conditions
- PoE Auto-Check: Automatic detection and restart of frozen PoE devices to reduce on-site maintenance and improve uptime
- Flexible Mounting: Supports DIN-rail installation for easy integration into industrial cabinets and control panels

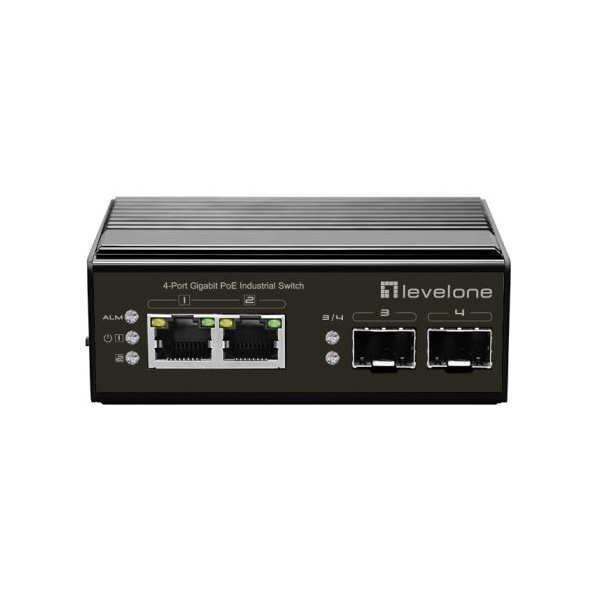

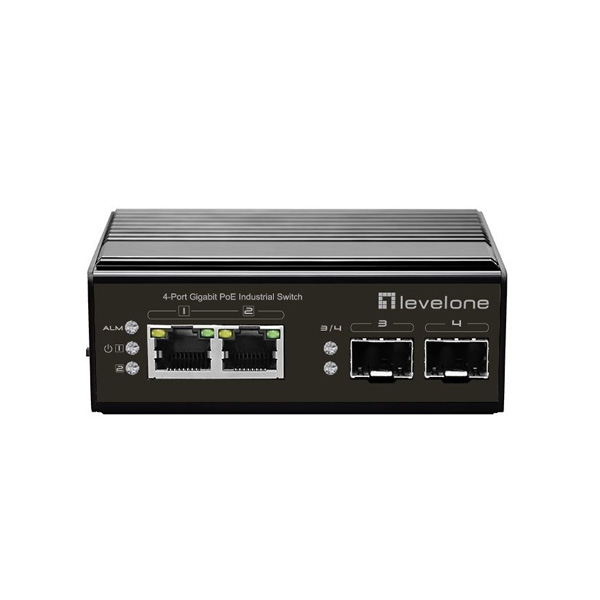

The LevelOne IGP-0432 is a compact 4-port Gigabit Industrial PoE Switch designed for mission-critical networks that require reliable performance in harsh environments. It provides 2 x 10/100/1000Base-T PoE ports for connecting powered devices such as industrial IP cameras and wireless access points, plus 2 x Gigabit SFP slots for flexible fiber uplinks over longer distances.
Fully compliant with IEEE 802.3af/at, the IGP-0432 delivers up to 30W per PoE port and a total PoE power budget of 60W, helping reduce installation costs by eliminating separate power lines and minimizing UPS requirements. The industrial-grade IP30 metal housing, DIN-rail mounting and wide operating temperature range from -40°C to 75°C make it ideal for factories, outdoor cabinets, transportation and utility applications.
To ensure stable operation, the switch integrates 6KV surge protection, ESD safeguards and a PoE auto-check function that automatically detects frozen PD devices and restarts PoE output to recover connectivity. Together with wire-speed Gigabit performance and clear front-panel LEDs, the IGP-0432 offers an easy-to-deploy, robust solution for industrial Ethernet networks.
Specifications :
| Power. | |
|---|---|
| Power Redundancy. | Dual Power Input |
| Power consumption. | <5W |
| A Testing Group – No Maintain, To be Deleted | |
| Harmonized System (HS) code. | 851762 |
| Customs product code (TARIC). | 8517620000 |
| EAN. | 4015867228180 |
| General. | |
| Model Number. | IGP-0432 |
| Others. | |
| Approval and Compliance. | CE/FCC IEC61000-4-2(ESD: 6KV:contact / 8KV:air) IEC61000-4-5(Surge: 6KV) |
| Operating humidity. | 0% RH ~ 95% RH |
| Operating temperature. | -40°C ~ 75°C |
| Storage humidity. | 0% RH ~ 95% RH |
| Storage temperature. | -40°C ~ 85°C |
| Package Contents. | IGP-0432 Power Terminal Block Quick Installation Guide |
| Physical Specifications. | |
| Dimensions (W x D x H). | 130 x 110 x 62 mm |
| Product weight (kg). | 0.3 |
| Miscellaneous. | |
| PoE Power Budget. | Total 60.00 |
| PoE Supported. | Yes |
| Concurrent ports. | Total 4.00 |
| Fanless. | Yes |
| Manageable. | No |
| Grade. | Industrial |
| System Specifications. | |
| Backplane (Gbps). | 8 |
| Data Rate. | 1Gbps |
| Indicators. | Power Alarm/Act PoE 10/100/1000Mbps |
| MAC address table. | 8K |
| Mount. | DIN rail mount |
| Packet buffer. | 5.95 Mpps |
| Pin assignment and polarity. | 1/2 (+), 3/6 (-) |
| Port Configuration. | 2 port 10/100/1000 Mbps RJ45 and 2 port Gigabit SFP |
| Power input. | Redundant Dual DC 48V-57V |
| Power Output. | Provides 2 PoE ports, up to 30W single port,Total PoE Budget 60W |
| Power supply. | VDC 48~57V, (Power supply unit is to be ordered separately) |
| Power supply included. | No |
| Standard. | IEEE 802.3u 100-BASE-TX (Fast Ethernet) IEEE 802.3ab 1000BASE-T (Gigabit Ethernet) IEEE 802.3x Full Duplex and flow control IEEE 802.3z Gigabit Ethernet over Fiber-Optic IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus |
