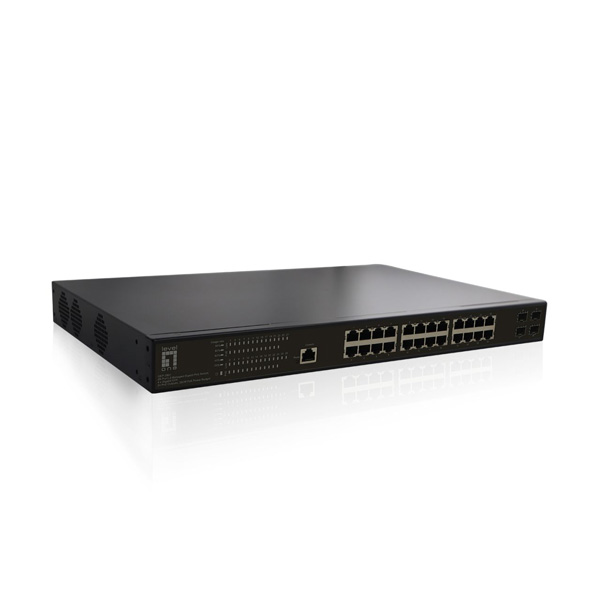

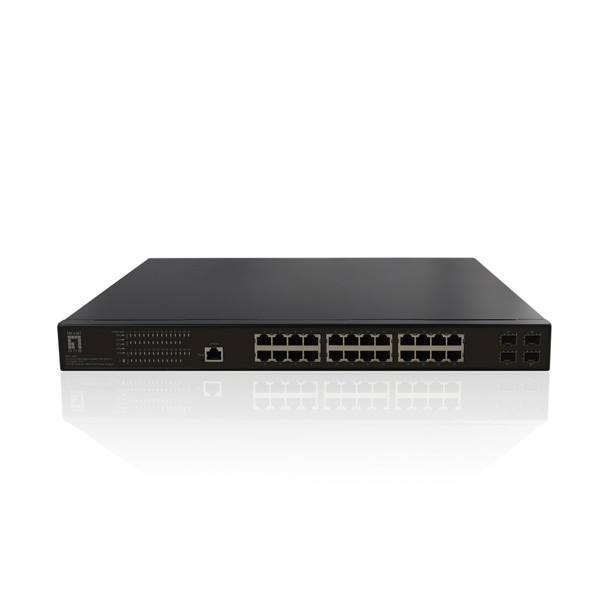

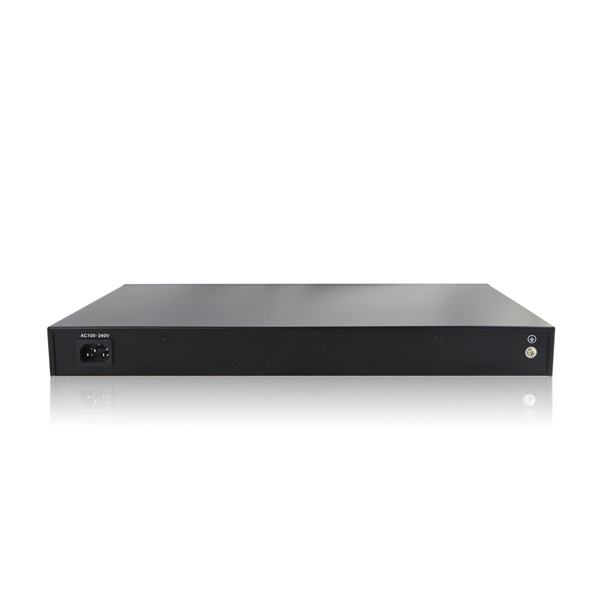

Levelone GEP-2861

24GE + 4SFP L2 Managed PoE Switch, 390W

Product Description :

24 Gigabit PoE ports and 4 Gigabit SFP slots
Total PoE power budget: 390W, up to 30W per port
Supports VLAN (Tag-based, Q-in-Q)
QoS control for traffic prioritization and bandwidth management
IEEE 802.3ad LACP for auto port aggregation
IEEE 802.1x Access Control to improve network security
IEEE 802.1d/w/s Spanning Tree Protocol (STP) and port mirroring
6KV Surge Protection, 6KV Contact / 8KV Air ESD protection

Specifications :

Power.
Power consumption.	Self-consumption<20W, PoE output 390W max.
General.
Color.	Black
Model Number.	GEP-2861
Features 1.
Features.	Quality of Service (QoS): ● 8 hardware Priority Queues per port ● Traffic classification based on IEEE 802.1p CoS ● IPv4/IPv6 precedence/ type of service (ToS) / DSCP based Rate Limiting – Ingress policer egress shaping and rate control Spanning Tree: ● Bridge Protocol Data Units (BPDU) IEEE 802.1D MAC Bridges ● IEEE 802.1d Spanning Tree Protocol (STP) ● IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) ● IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) ● Virtual Local Area Network (VLAN): 802.1Q tag-based VLAN – up to 4K VLANs and 4K VLAN IDs Port-based VLAN ● Port Isolation ● Port Mirror /Remote Mirror ● Broadcast / Multicast / Unknown Storm Control 802.1X ● ACL ● Port Security ● MAC Filter ● Event /Error Log DHCP v4/v6 Snooping ● DHCP Snooping Option82
Management.	● SSH ● WEB (HTTP) ● SNMP v1/v2c/v3 ● RMON ● LLDP ● System Log(Syslog) Information ● Firmware upgrade /download (HTTP/TFTP/FTP) RMON/ SNMP ● Management Access (Console / SNMP/ Web / Telnet) Memory Flash Log ● System Password protection NTP/SNTP
Security.	● Port Security ● MAC address filter ● ARP Association (Manual, ARP scanning, DHCP snooping) up to 200 entries ● ARP Protection ● DoS (Denial of Service) ● Classification of packages based on: End.MAC, IP End, TCP / UDP Ports, Protocol Type ● 802.1x Autentication (port-based e MAC-based)
Non-disclosure.
Embedded system.	VxWorks
Performance 2.
Switching capacity.	56 Gbps
Physical Specifications.
Dimensions (W x D x H).	442 x 285 x 44 mm
Product weight (kg).	4
Miscellaneous.
PoE Power Budget.	Total 390.00
PoE Supported.	Yes
Concurrent ports.	Total 28.00
Fanless.	No
Manageable.	Yes
Grade.	Commercial
System Specifications.
Backplane (Gbps).	56
Data Rate.	1Gbps
Indicators.	● System ● Link/Active/Speed ● PoE
Jumbo frame (KB).	10
MAC address table.	16 K
Mount.	19″ rack mount, Desk mount
Packet buffer.	4 Mbits
Pin assignment and polarity.	1/2 (+), 3/6 (-)
Port Configuration.	4x 100/1000 SFP Ports, 24x 10/100/1000 Ethernet PoE+ ports, 250 meters PoE capability with 10 Mbps configuration per port
Power supply.	AC power
Power supply included.	Yes
Standard.	● IEEE 802.3 10-BASE-T ● IEEE 802.3u 100-BASE-TX, Fast Ethernet ● IEEE 802.3ab 1000BASE-T, Gigabit Ethernet ● IEEE 802.3z 1000BASE-X, Gigabit Ethernet ● IEEE 802.1p Quality of Service (QoS) ● IEEE 802.1Q Virtual LANs (VLANs) ● IEEE 802.1d Spanning Tree Protocol (STP) ● IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) ● IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) ● IEEE 802.3x Flow Control ● IEEE 802.3ad Link Aggregation Control Protocol (LACP) , LACP Trunk (8 Trunks) ● IEEE 802.3af (PoE) ● IEEE 802.3at (PoE+)
Standards.	IEEE 802.3 10-BASE-T, Ethernet, IEEE 802.3u 100-BASE-TX, Fast Ethernet, IEEE 802.3ab 1000BASE-T, Gigabit Ethernet, IEEE 802.3af Power over Ethernet (PoE), IEEE 802.3at Power over Ethernet Plus (PoE+), IEEE 802.3az Energy-Efficient Ethernet, IEEE 802.1Q Virtual LANs (VLANs), IEEE 802.1D Spanning Tree Protocol (STP), IEEE 802.1w Rapid Spanning Tree Protocol (RSTP), IEEE 802.1s Multiple Rapid Spanning Tree Protocol (MSTP), IEEE 802.1X authentication, IEEE 802.1ab Link Layer Discover Protocol (LLDP), IEEE 802.3ad Link Aggregation Control Protocol (LACP), IEEE802.3z 1000Base-SX/LX
Others.
Approval and Compliance.	● FCC Part 15, Subpart B, Class A(sDoC), ANSI C63.4 -2014 ● CE ● RoHS
Operating humidity.	0% RH ~ 95% RH
Operating temperature.	-10°C ~ 50°C
Storage humidity.	0% RH ~ 95% RH
Storage temperature.	-40°C ~ 85°C
Package Contents.	● GEP-2861 ● Power Cord ● 19″ Rack Mount Kit ● Quick Installation Guide ● Declaration of Conformity
Other Info
Harmonized System (HS) code.	851762
Customs product code (TARIC).	8517620000
EAN.	4015867227848
