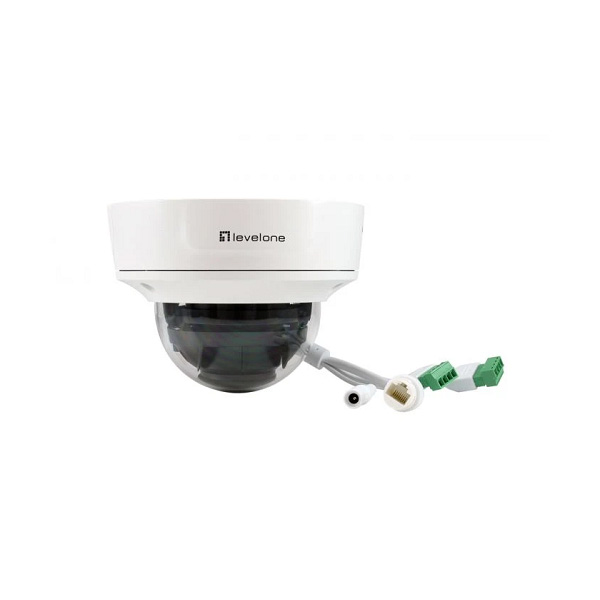

Levelone FCS-3098 GEMINI ZOOM IP CAMERA, 8-MP, H.265, 802.3AF, 4.3X OPTICAL ZOOM, IR 40 METER, IP67, TWO-WAY AUDIO
Levelone FCS-3098 GEMINI ZOOM IP CAMERA, 8-MP, H.265, 802.3AF, 4.3X OPTICAL ZOOM, IR 40 METER, IP67, TWO-WAY AUDIO
  1. Levelone FCS-3098 GEMINI ZOOM IP CAMERA, 8-MP, H.265, 802.3AF, 4.3X OPTICAL ZOOM, IR 40 METER, IP67, TWO-WAY AUDIO
  2. Levelone FCS-3098 GEMINI ZOOM IP CAMERA, 8-MP, H.265, 802.3AF, 4.3X OPTICAL ZOOM, IR 40 METER, IP67, TWO-WAY AUDIO

Levelone FCS-3098 GEMINI ZOOM IP CAMERA, 8-MP, H.265, 802.3AF, 4.3X OPTICAL ZOOM, IR 40 METER, IP67, TWO-WAY AUDIO

฿10,160.00 บาท (รวมภาษี)

รหัสสินค้า: FCS-3098

มีสินค้าอยู่ 200

Levelone FCS-3098

2MP IR200M PTZ 32x H.265 Network Camera



Product Description :

  • 8-Megapixel high-definition resolution
  • Video compression: H.264/H.265
  • Supports 4.3X optical zoom
  • Features WDR (Wide Dynamic Range) to enhance visibility under extremely bright or dark environments
  • Vandal-proof IK10-rated housing
  • Weatherproof IP67-rated housing
  • Built-in infrared LEDs for night viewing up to 40m
  • Built-in Micro SDHC/SDXC card slot for local storage



Specifications :

Features 1.
Features. Video:
Rotate, Mirror, Privacy mask, Saturation, Brightness, Contrast, Sharpness, Gain, White balance adjustable by client software or web browserEvent:
Supports human and vehicle targets classification.
Line crossing detection,
Intrusion detection.
Face detection
Securely:
Password protection, Complicated password, Https encryption, IP address filter, Security audit log, Basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication.
Miscellaneous.
2-way audio. Yes
DI/DO. Yes
IR LED for night vision. Yes
Max. Resolution. 8 Megapixels
Resistance. Weatherproof, Vandalproof
IP Camera series. GEMINI
Camera Type. Dome
Zoom type. Motorization
PoE Supported. Yes
System Specifications.
Angle of view (°). FOV 108° to 30°, vertical FOV 56° to 17°, diagonal FOV 131° to 35°
Audio format. G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio system. Mono
Image sensor. 1/2.8″ Progressive Scan CMOS
Indicators. Power/Link Act
IR cut filter. Yes
IR range. 40 Meter
Lens. Varifocal lens, Motorized Lens, 2.8 to 12 mm
Minimum illumination (lux). Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Mount. Ceiling mount
Port Configuration. 10 /100Mbps PoE ,DI/DO(Terminal black), Audio in/Out (Terminal black), VDC connector
Power consumption. 12 VDC ± 25%, 0.88 A, max. 10.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection,

PoE: 802.3af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5 W
Power supply included. No
Protocols. Http, Https, NTP, IPv4, IPv6, TCP, UDP, RSTP, FTP, DHCP, PPPoE, TLS, SSL, SMTP, UPNP
Resolution. Main Stream:
50 Hz:
20 fps (3840 × 2160)
25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)60 Hz:
20 fps (3840 × 2160)
30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
Shutter time. 1/3 s to 1/100,000 s
Standard. TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
Standards. IEEE 802.3 10-BASE-T, Ethernet, IEEE 802.3x Full-duplex Flow Control, IEEE 802.3af Power over Ethernet (PoE), IEEE 802.1X authentication
Supported storage capacity. 512 GB
Video format. H.265/H.264/MJPEG
Weatherproof rating. IP67
Others.
Approval and Compliance. CE/FCC/RoHs

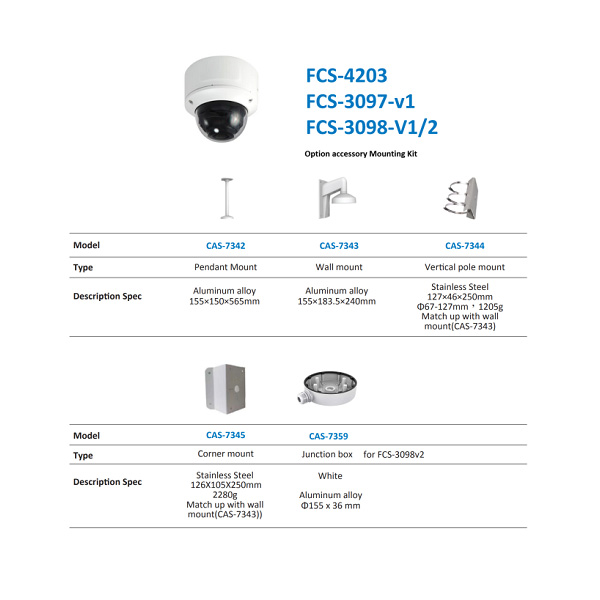

Compatibility. Ooption accessory Mounting Kit :

CAS-7359 Junction Box
Operating humidity. 5% RH ~ 95% RH
Operating temperature. -30°C ~ 60°C
Supported browsers. Plug-in required live view: IE 11, Edge
Plug-in free live view : Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
Compatible operating systems. Web Client Language:
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Storage humidity. 5% RH ~ 95% RH
Storage temperature. -10°C ~ 70°C
Package Contents. Screw Kit
QIG
General.
Color. White
EAN. 4015867228647
Model Number. FCS-3098
Physical Specifications.
Dimensions (W x D x H). Ø 153.3 mm × 111.6 mm (Ø 6.1″ × 4.4″)
Product weight (kg). 0.8
