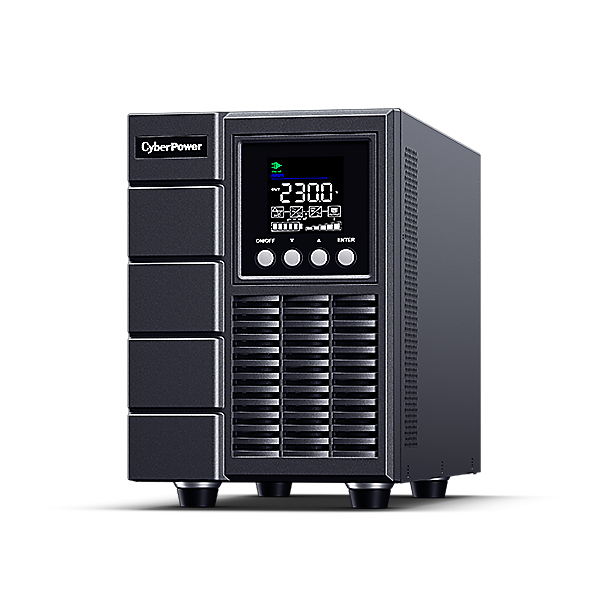

CyberPower OLS2000EA

CyberPower OLS2000EA is a high-performance UPS featuring online double-conversion topology, which provides seamless Pure Sine Wave power for mission-critical devices such as NAS and servers, DVRs/surveillance systems, transportation and infrastructure, and emergency systems. It’s typically integrated in the back office, server room, and data center environment.

The UPS is designed with color LCD panel for users to monitor power system and configure settings easily. This model is generator compatible and also adopts ECO mode to conserve power. The product can be connected to Emergency Power Off (EPO) switch, which allows users to shut off UPS immediately during emergency. The variable speed fans provide automatic thermal management based on power load to reduce noise and provide greater comfort for users.

Features :

• Online (Double Conversion) UPS Topology

• Generator Compatible

• Zero Transfer Time

• Surge and Spike Protection

• Color LCD Panel

• Serial Connectivity Port

• PowerPanel Management Software

• Tower Form Factor

• ECO Mode

• Overload Protection

• Smart Battery Management (SBM)

• EMI and RFI Filtration

• Variable Speed Fans

• Emergency Power Off (EPO) Port

• SNMP/HTTP Remote Management Capability (Optional)

Specifications :

General
Phase	Single Phase
Form Factor	Tower
UPS Topology	Online Double Conversion
Energy Saving Technology	ECO Mode Efficiency > 95%
Active PFC Compatibility	Yes
Input
Generator Compatibility	Yes
Nominal Input Voltage (Vac)	230 ± 10%
Input Voltage Range (Vac)	200 ~ 300
Adjustable Voltage Range (Vac)	0~30% Load for 80 ~ 300 Vac 0~50% Load for 120 ~ 300 Vac 0~75% Load for 160 ~ 300 Vac 0~100% Load for 200 ~ 300 Vac
Input Frequency (Hz)	50 ± 10 60 ± 10
Input Frequency Detection	Auto-sensing
Rated Input Current (A)	9
Input Power Factor	0.98
Input Connector Type	IEC C14
Detachable Power Cord Plug Type	NEMA 5-15P x 1
Power Cord Length (ft.)	5
Power Cord Length (m.)	1.5
Output
Capacity (VA)	2000
Capacity (Watts)	1800
On Battery Waveform	Pure Sine Wave
On Battery Voltage(s) (Vac)	208 ± 1% 220 ± 1% 230 ± 1% 240 ± 1%
Output Voltage Setting	Configurable
On Battery Frequency (Hz)	50 ± 0.5% 60 ± 0.5%
Output Frequency Setting	Configurable
Power Factor	0.9
ECO Mode Voltage Tolerance	±15%
Overload Protection	Internal Current Limiting, Circuit Breaker, Fuse
Overload Protection (Line Mode)	110~120% Load for 1 min, >120% Load Immediately
Overload Protection (Battery Mode)	110~120% Load for 10 sec, >120% Load Immediately
Overload Protection (Bypass Mode)	>130% Load Immediately
Crest Factor	3:1
Harmonic Distortion (Linear Load)	THD＜3%
Harmonic Distortion (Non-linear Load)	THD＜5%
Internal Bypass	Automatic Bypass, Manual Bypass
Outlet(s) – Total	4
Outlet Type	IEC C13 x 2  AS x 2
Outlet(s) – Battery & Surge Protected	4
Typical Transfer Time (ms)	0
Battery
Runtime at Half Load (min)	13.1
Runtime at Full Load (min)	3.8
Runtime at 1200W ( min )	9.5
Typical Recharge Time (Hours)	4
Maximum Charging Current (A)	1.5
Start On Battery	Yes
Smart Battery Management (SBM)	Yes
User-replaceable	No
Battery Type	Sealed Lead-acid
Compatible Extended Battery Module (EBM)	BPSE24V40A
Max. EBM Quantity (pcs)	3
Surge Protection & Filtering
Surge Suppression (Joules)	345
EMI/RFI Filtration	Yes
Management & Communications
LCD Panel	Yes
LCD Types	Color LCD
LCD Information Display	Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information, Event & Log
LCD Setting & Control	Mode Setting, Alarm Setting, Input & Output, Battery Setting
HID Compliant USB Port(s)	1
Serial Port	RS232
Dry Contact (with Relay)	Yes
Emergency Power Off (EPO) Port	Yes
Audible Alarms	Battery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault, Replace Battery
Management Cable (pcs)	USB Cable x1
Power Management Software	PowerPanel Business (Recommended)
SNMP/HTTP Remote Monitoring	Yes – with optional RMCARD205
Physical
Enclosure Construction	Metal
Color	Black
Physical Size – UPS Module
Dimensions (WxHxD) (mm.)	151 x 225 x 394
Weight (kg.)	16.9
Environmental
Operating Temperature (°F)	32 ~ 104
Operating Temperature (°C)	0 ~ 40
Operating Relative Humidity (Non-condensing) (%)	0 ~ 95
Operating Elevation (feet/meters)	0-4,921 feet (0-1,500 meters)
Storage Temperature (°F)	-4 ~ 122
Storage Temperature (°C)	-20 ~ 50
Storage Relative Humidity (Non-condensing) (%)	10 ~ 90
Storage Elevation (feet/meters)	0-4,921 feet (0-1,500 meters)
Online Thermal Dissipation (BTU/hr)	682
Variable Speed Fans	20 steps automatically
Certifications
Certifications	CE
RoHS	Yes
