AP9559

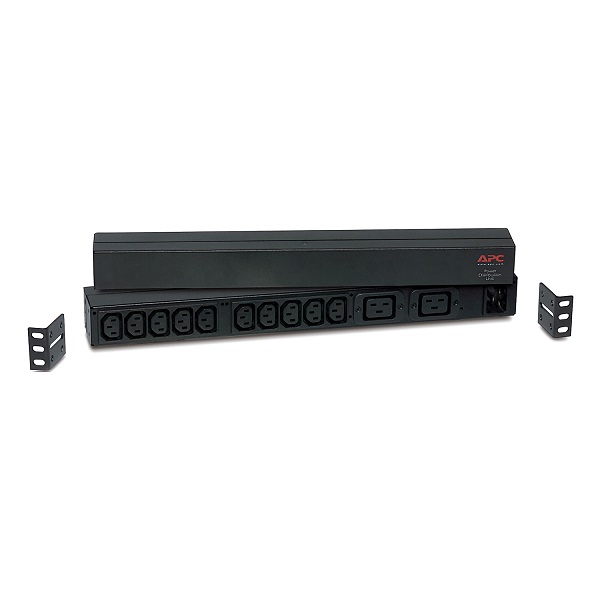

APC Rack PDU,Basic, 1U, 16A,208&230V, (10)C13 & (2)C19

It is a basic rack PDU with a 1U horizontal mounting design. It supports a maximum input current of 16A and operates at 208 and 230V. The PDU features 10 IEC 60320 C13 outlets and 2 IEC 60320 C19 outlets, providing flexibility for connecting various IT equipment. It includes an 8.2-foot power cord with an IEC 60320 C20 plug. The unit is designed for reliable power distribution and includes rack mounting brackets and a user manual.

Specifications :

Overview
———
Lead time: Usually in Stock
—–
Main
—–
Name: AP9559
Colour: Black
Product or component type: PDU
PDU type: Basic
Cord length: 2.5 m
Number of cables: 1
Provided equipment: User manual, Rack mounting brackets
————–
Complementary
————–
Input Voltage: 200 V, 208 V, 230 V
Height: 4.4 cm
Width: 44.7 cm
Output Voltage: 120 V, 208 V, 230 V
Depth: 5.7 cm
Net weight: 0.98 kg
mounting location: Front, Rear
Mounting preference: No preference
Input Plug Type: IEC 60320 C20
mounting mode: Rack-mounted
Rack units: 1U
mounting position: Horizontal
Permissible voltage: 90…250 V
Max line current: 16 A
Input current limits: 16 A
Load capacity: 3680 VA
Network frequency: 50/60 Hz
Outlet type and quantity: 10 IEC 60320 C13, 2 IEC 60320 C19
————
Environment
————
product certifications: cUL listed, CE, UL listed, VDE, Victoria
Ambient air temperature for operation: 0…45 °C
Relative humidity: 0…95 %
Operating altitude: 0…10000 ft
Ambient air temperature for storage: -25…65 °C
Storage Relative Humidity: 0…95 %
Storage altitude: 0.0000000000…15240.0000000000 m
————–
Packing Units
————–
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 16.5 cm
Package 1 Width: 48.3 cm
Package 1 Length: 15.2 cm
Package 1 Weight: 2.355 kg
