AR3340

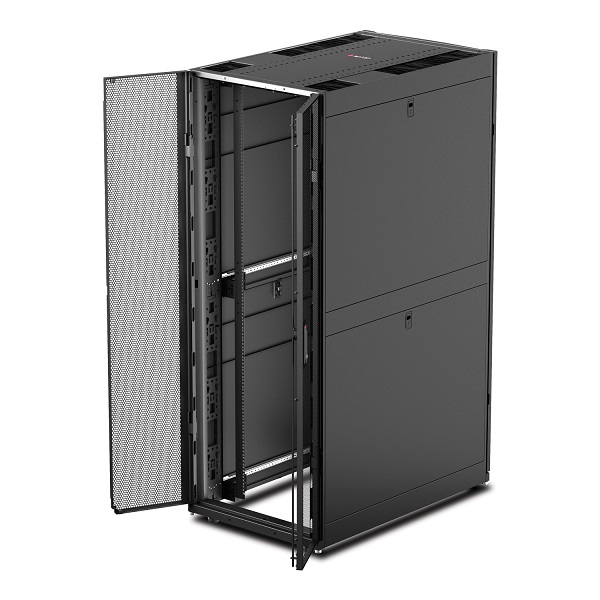

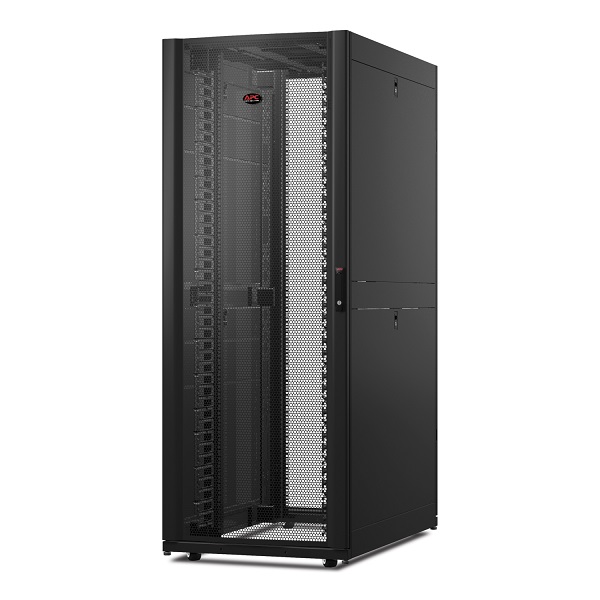

APC NetShelter SX, Networking Rack Enclosure, 42U, Black, 1991H x 750W x 1200D mm

An industry standard server rack ready for medium to high density environments with height designed to easily fit through standard doorways. Network rack design enables faster deployment of network switches and an optimized rack mounting space designed specifically for cable and airflow management of large core networking switches and Storage Area Network (SAN) directors. Deeper rack design provides enough rack mounting space for even the deepest devices and still plenty of room for vertically mounting Rack PDUs and cable management.

Specifications :

Overview
———
Presentation: NetShelter SX Networking Enclosure expands Schneider Electric’s superior IT enclosure line with improved support for high density networking applications. Integrated high density cable managers and improved cable access roof provide support for large cable bundles. When combined with the Side Airflow Duct Kit, the Networking Enclosure ensures complete isolation of cold intake and hot exhaust air for large switches and SAN directors.
Lead time: Usually in Stock

—–
Main
—–
Product or component type: Rack enclosure
number of rack unit: 42U
Provided equipment: Baying hardware, Key(s), Keyed-alike doors and side panels, Leveling feet, Mounting hardware, Pre-installed casters, Side panels, Vertical cable managers

———
Physical
———
Height: 199.1 cm
Width: 60 cm
Depth: 120 cm
Net weight: 161.36 kg
Colour: Black
Mounting preference: No preference
mounting mode: Not rack-mountable
Maximum mounting depth: 95.89 cm
minimum mounting depth: 27.94 cm
rack width: 19″
Marking: 14 gauge EIA mounting rail, 16 gauge front door, 16 gauge post, 16 gauge rear door, 18 gauge roof, 18 gauge side panels
Permanent permissible load: 1020.6 kg dynamic, 1701.0 kg static

————
Conformance
————
Standards: UL 2416, UL 60950-1, EIA-310E

————–
Packing Units
————–
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 211.8 cm
Package 1 Width: 132.08 cm
Package 1 Length: 85.09 cm
Package 1 Weight: 183.18 kg
