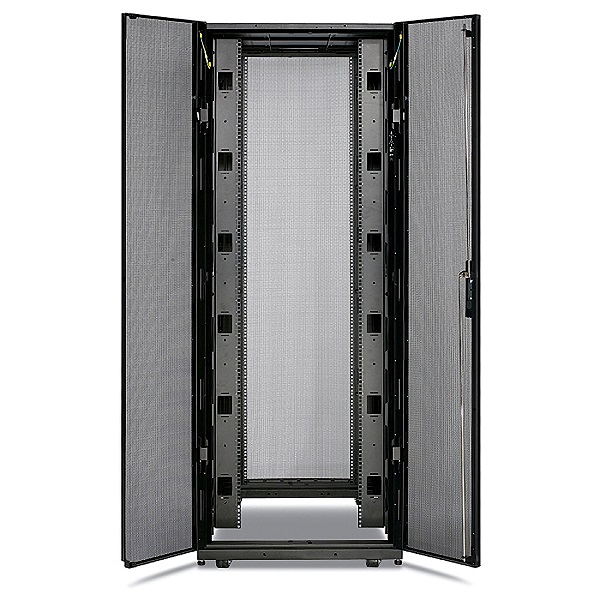

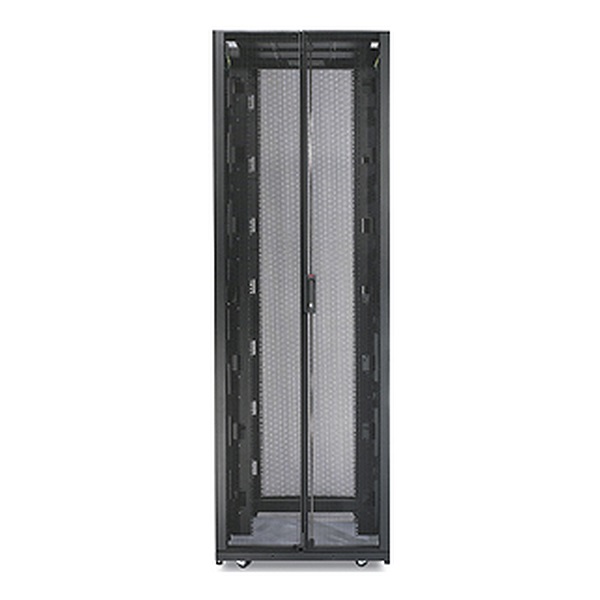

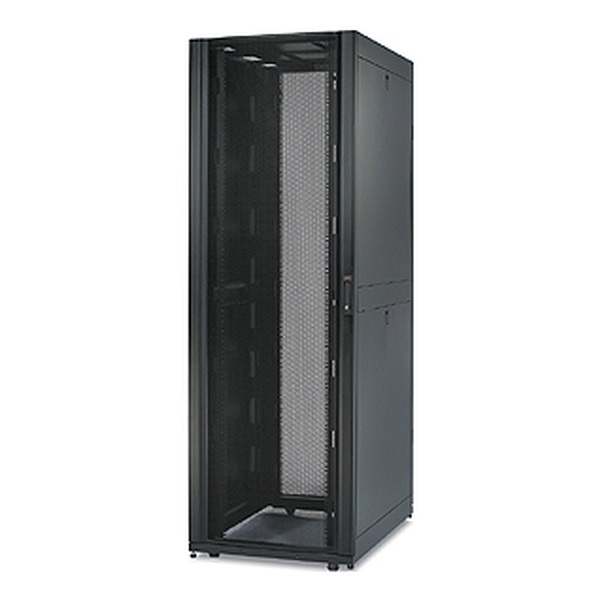

AR3150

APC NetShelter SX, Server Rack Enclosure, 42U, Black, 1991.4H x 750W x 1070D mm

An industry standard server rack ready for medium to high density environments with height designed to easily fit through standard doorways. Wide rack design allows for additional space beside the vertical mounting rails for passing cabling from front-to-back in the enclosure. It provides plenty of clearance at the back for Rack PDUs and cable managers not to interfere with IT device hot swappable components.

Specifications :

Overview
———
Lead time: Usually in Stock

—–
Main
—–
Product or component type: Rack enclosure
number of rack unit: 42U
Provided equipment: Baying hardware, Key(s), Keyed-alike doors and side panels, Leveling feet, Mounting hardware, Pre-installed casters, Side panels

———
Physical
———
Height: 199.1 cm
Width: 75 cm
Depth: 107 cm
Net weight: 155.96 kg
Colour: Black
Mounting preference: No preference
mounting mode: Not rack-mountable
Maximum mounting depth: 91.49 cm
minimum mounting depth: 26.19 cm
rack width: 19″
Marking: 14 gauge EIA mounting rail, 16 gauge front door, 16 gauge post, 16 gauge rear door, 18 gauge roof, 18 gauge side panels
Permanent permissible load: 1020.6 kg dynamic, 1701.0 kg static

————
Conformance
————
Standards: UL 2416, UL 60950-1, EIA-310E

————–
Packing Units
————–
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 211.7 cm
Package 1 Width: 85.1 cm
Package 1 Length: 115.6 cm
Package 1 Weight: 168.18 kg
