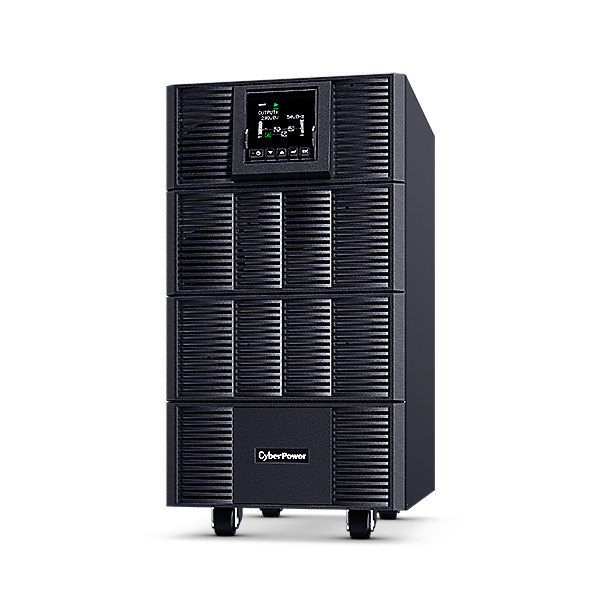

CyberPower OLS6KEA UPS OLS Tower 6000VA/6000W PF1

CyberPower OLS6KEA UPS OLS Tower 6000VA/6000W PF1

฿77,150.00 (รวมภาษี)
฿72,102.80 (ไม่รวมภาษี)

รหัสสินค้า: OLS6KEA

มีสินค้าอยู่ 100

CyberPower OLS6KEA



CyberPower OLS6KEA is a high-efficiency UPS featuring online double-conversion topology, which provides seamless Pure Sine Wave power for mission-critical devices such as NAS and servers, DVRs/surveillance systems, transportation and infrastructure, and emergency systems. It’s typically integrated into the back office, server room, and data center environment.

The UPS features a high output power factor, delivering more usable power than conventional UPS. The intuitive tiltable color LCD panel allows users to easily monitor the system and configure the settings. The number of connected Extended Battery Modules (EBM) can be automatically detected to reckon UPS’s runtime. Besides, the battery charging current is adjustable via LCD setting to reduce charging time. It is also designed with relay-type dry contacts to support specific UPS event notifications for easy management and is compatible with power management software to perform real-time monitoring and configuration.



Features :

  • Online (Double Conversion) UPS Topology

  • High Output Power Factor

  • UPS Parallel Expansion (Optional)

  • Maintenance Bypass Switch

  • Extended Battery Module Auto-detection

  • Tiltable LCD Panel

  • Emergency Power Off (EPO) Port

  • Zero Transfer Time

  • ECO Mode

  • Pure Sine Wave Output

  • Overload Protection

  • Adjustable Charging Current

  • Color LCD Panel

  • Relay-type Dry Contact

  • PowerPanel Management Software

  • SNMP/HTTP Remote Management Capability (Optional)



Specifications :

OLS6KEA
General
Topology Online Double Conversion
Energy Saving Technology ECO Mode Efficiency > 98%
Active PFC Compatibility Yes
Output Expansion (Max. Units) 4 (Optional)
Input
Generator Compatibility Yes
Nominal Input Voltage (Vac) 230
Input Voltage Range (Vac) 110 ~ 300
Input Frequency (Hz) 50 ± 10, 60 ± 10
Input Frequency Detection Auto-sensing
Rated Input Current (A) 30
Input Power Factor 0.99
Input PFC Type Yes
Input Connector Type Hardwire Terminal Block
Output
Capacity (VA) 6000
Capacity (Watts) 6000
On Battery Waveform Pure Sine Wave
On Battery Voltage(s) (Vac) 200 ± 1%, 208 ± 1%, 220 ± 1%, 230 ± 1%, 240 ± 1%
Output Voltage Setting Configurable
On Battery Frequency (Hz) 50 ± 0.1%, 60 ± 0.1%
Output Frequency Setting Configurable
Power Factor 1
Overload Protection Internal Current Limiting, Circuit Breaker, Fuse
Overload Protection (Line Mode) 105-150% Load for 10 sec, >150% Load for 1.5 sec
Overload Protection (Battery Mode) 105-130% Load for 10 sec, >130% Load for 3 sec
Overload Protection (Bypass Mode) 110-120% Load for 30 min, 120-130% Load for 2 min, 130-150% Load for 15 sec, >150% Load Immediately
Harmonic Distortion (Linear Load) THD<1.5%
Harmonic Distortion (Non-linear Load) THD<2%
Outlet(s) – Total 1
Outlet Type Hardwire Terminal Block x 1
Typical Transfer Time (ms) 0
Battery
Runtime at Half Load (min) 9.3
Runtime at Full Load (min) 2.3
Typical Recharge Time (Hours) 4
Adjustable Charging Current (A) 1 – 4
Smart Battery Management (SBM) Yes
Automatic Battery Self-test During Power-on Yes
User-Replaceable Yes
Battery Type Sealed Lead-acid
Compatible Extended Battery Module (EBM) Yes
Max. EBM Quantity (pcs) 10
Surge Protection & Filtering
Surge Suppression (Joules) 1335
EMI/RFI Filtration Yes
Management & Communications
LCD Panel Yes
LCD Types Color LCD
HID Compliant USB Port(s) 1
Serial Port RS232
Dry Contact (with Relay) Yes
Emergency Power Off (EPO) Port Yes
Power Management Software PowerPanel Business (Recommended)
SNMP/HTTP Remote Monitoring Yes – With optional RMCARD205
Cloud Service Yes – 90 Days Free Trial with PowerPanel Personal/Business
Physical
Form Factor Tower
Physical Size – UPS Module
Dimensions (WxHxD) (mm) 270 x 520 x 460
Weight (kg) 32
Environmental
Operating Temperature (°C) 0 – 40
Operating Relative Humidity (Non-Condensing) (%) 0 – 95
Certifications
Certifications CE
RoHS Yes
