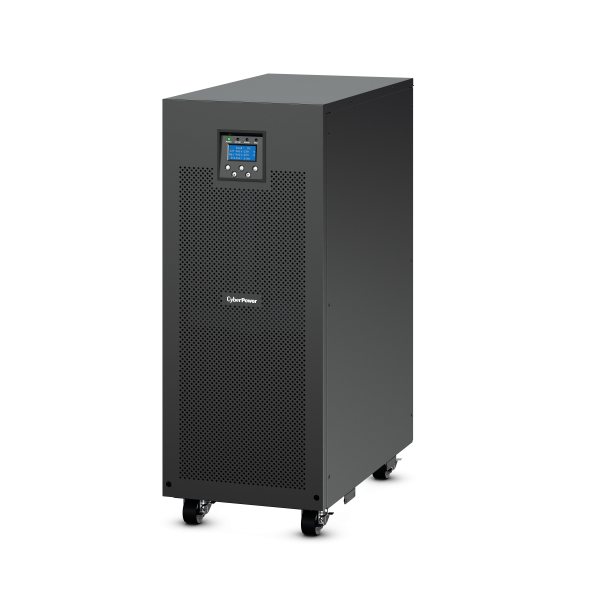

CyberPower OLS3S20KE 20KVA w/ 40pcs*9AH BAT

CyberPower OLS3S20KE 20KVA w/ 40pcs*9AH BAT

฿240,100.00 (รวมภาษี)
฿224,392.52 (ไม่รวมภาษี)

รหัสสินค้า: OLS3S20KE

มีสินค้าอยู่ 100

CyberPower OLS3S20KE(XL)



CyberPower OLS3S20KE(XL) guarantees power backup protection for IT equipment, servers, workstations, NAS/Storage devices, telecom devices, networking devices, security/emergency systems, and surveillance systems. The UPS adopts double-conversion topology to provide high-quality power output with additional ECO Mode to conserve power and save on energy costs. The UPS supports parallel expansion to allow the connections of multiple UPS units, achieving system redundancy. It is compatible with generators to prolong power continuity, and maintenance bypass switch to provide quick and safe maintenance without having to shut down UPS and connected equipment. The product can be connected to Emergency Power Off (EPO) switch, allowing users to shut off UPS immediately during emergency.

The UPS can employ Extended Battery Modules (EBM) to prolong runtimes, and its built-in Smart Battery Management (SBM) enhances battery charging process to extend battery lifetime. This model also features multifunction LCD readout to display information of power and battery conditions. The PowerPanel Power Management Software allows user to perform real-time monitoring and remote management of the UPS.



Features :

  • Three-phase Design

  • ECO Mode

  • Dual Inputs

  • Pure Sine Wave Output

  • LCD Status Display

  • Battery Cold Start

  • Smart Battery Management (SBM)

  • PowerPanel Management Software

  • Online (Double Conversion) UPS Topology

  • UPS Parallel Expansion

  • Generator Compatible

  • Maintenance Bypass Switch

  • Emergency Power Off (EPO) Port

  • Extended Battery Module (EBM)

  • SNMP/HTTP Remote Management Capability (Optional)



Specifications :

General
Phase Three Phase
Form Factor Tower
UPS Topology Online Double Conversion
Energy Saving Technology ECO Mode Efficiency > 97%
Normal Mode Efficiency (%) 94%
Battery Mode Efficiency (%) 92%
Active PFC Compatibility Yes
Parallel Expansion (Max. Units) 4
Input
Dual Power Inputs Yes
Generator Compatibility Yes
Nominal Input Voltage (Vac) Line to Neutral (L-N): 220, 230, 240 Vac
Line to Line (L-L): 380, 400, 415 Vac
Input Voltage Range (Vac) Line to Neutral (L-N): 176 ~ 276 Vac
Line to Line (L-L): 305 ~ 478 Vac
Configurable Voltage Range (Vac) Line to Neutral (L-N): 110 ~ 276 Vac
Line to Line (L-L): 190 ~ 478 Vac
Input Frequency (Hz) 50 ± 5
60 ± 6
Rated Input Current (A) 90.9
Input Power Factor 0.99
Input Connector Type Hardwire Terminal Block
Output
Capacity (VA) 20000
Capacity (Watts) 18000
On Battery Waveform Pure Sine Wave
Output Voltage Setting Configurable
Output Frequency Setting Configurable
Rated Output Voltage (Vac) Line to Neutral (L-N): 208, 220, 230, 240 Vac
Output Frequency (Hz ± %) 50 ± 0.1
60 ± 0.1
Power Factor 0.9
ECO Mode Voltage Tolerance ±10%
Overload Protection Internal Current Limiting, Circuit Breaker, Fuse
Overload Protection (Line Mode) 100~110% Load for 5 min
110~130% Load for 1 min
130~150% Load for 10 sec
>150% Load for 2 sec
Overload Protection (Battery Mode) 100~110% Load for 1 min
110~130% Load for 10 sec
>130% Load for 2 sec
Overload Protection (Bypass Mode) >130% Load Immediately
Crest Factor 3:1
Harmonic Distortion (Linear Load) THD < 2%
Harmonic Distortion (Non-linear Load) THD < 5%
Internal Bypass Automatic Bypass
Maintenance Bypass Yes
Outlet(s) – Total 1
Outlet Type Hardwire Terminal Block x 1
Outlet(s) – Battery & Surge Protected 1
Typical Transfer Time (ms) 0
Battery
Runtime at Half Load (min) 12.8
Runtime at Full Load (min) 1.5
Runtime at Half Load (For Specific Battery) 1.8 mins at 18AH
Runtime at Full Load (For Specific Battery) 1.5 mins at 18AH
Typical Recharge Time (Hours) 8
Maximum Charging Current (A) 2
Compatible Battery Types VRLA
Recharge Power (%) Default 2.67% (Selectable from 1~5% x UPS Capacity)
Recharge Power Setting Configurable
Charger Voltage Tolerance (%) ≤1%
Start On Battery Yes
Smart Battery Management (SBM) Yes
Battery Type Sealed Lead-acid
Battery Solution Internal Battery
Battery Quantity (pcs) 40
Reserved Space for Internal Battery 40
Battery Voltage (V) ±240
Compatible Extended Battery Module (EBM) BPSE240V82A
Max. EBM Quantity (pcs) 15
External Battery Quantity 12V x 40pcs
Surge Protection & Filtering
Surge Suppression (Joules) 445
EMI/RFI Filtration Yes
Management & Communications
LCD Panel Yes
LCD Information Display Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information, Event & Log
LCD Setting & Control Mode Setting, Alarm Setting, Input & Output, Battery Setting, Fault & Warning, Communication, Event & Log, Security Setting
LED Indicators Line Mode, Battery Mode, Bypass Mode, UPS Fault
HID Compliant USB Port(s) 1
Dry Contact (with Relay) Optional
Emergency Power Off (EPO) Port Yes
Audible Alarms Battery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault
Management Cable (pcs) USB Cable x1
Power Management Software PowerPanel Business (Recommended)
SNMP/HTTP Remote Monitoring Yes – with optional RMCARD205
Physical
Enclosure Construction Metal
Color Black
Ingress Protection IP20
Physical Size – UPS Module Dimensions (WxHxD):
13.78 x 35.04 x 25.59 in.
350 x 890 x 650 mm
Weight 379.2 lbs (172 kg)
Physical Size – Battery Module Dimensions (WxHxD):
10.24 x 28.27 x 21.65 in.
260 x 718 x 550 mm
Weight 273.4 lbs (124 kg)
Shipping Dimensions Dimensions (WxHxD):
18.31 x 44.49 x 31.10 in.
465 x 1130 x 790 mm
Weight 418.9 lbs (190 kg)
Environmental
Operating Temperature (°F) 32 ~ 104
Operating Temperature (°C) 0 ~ 40
Operating Relative Humidity (Non-condensing) (%) 0 ~ 90
Operating Elevation (feet/meters) ≤1000, Load Derated 1% per 100m from 1000m and 2000m
Storage Temperature (°F) 5 ~ 113
Storage Temperature (°C) -15 ~ 45
Storage Relative Humidity (Non-condensing) (%) 0 ~ 95
Storage Elevation (feet/meters) 0-49,213 feet (0-15,000 meters)
Online Thermal Dissipation (BTU/hr) 3487
Audible Noise at 1.5M from Surface of Unit (dBA) 60
Certifications
Certifications CE
RoHS Yes
WARRANTY
Product Warranty Period (Year) 2
Battery Warranty Period (Year) 2
