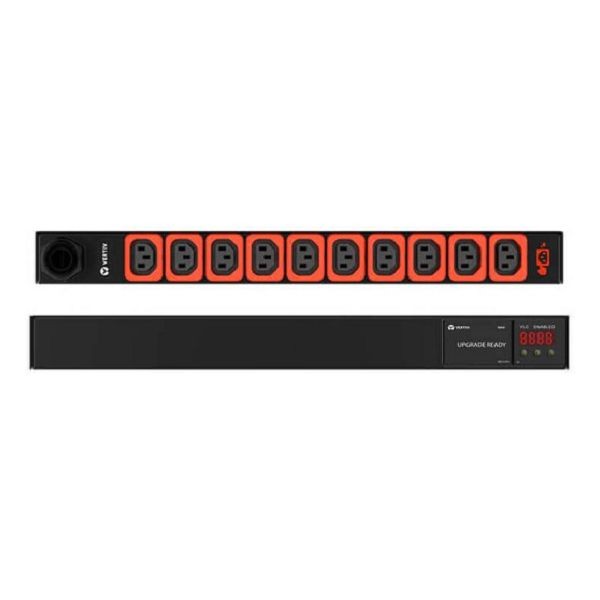

Vertiv 14240227 Geist Rack Metered PDU: 16A Rated, IEC309 Input, U-Lock 10xC13 + U-Lock 0xC19, Black, 1U, Upgradeable

Vertiv 14240227 Geist Rack Metered PDU: 16A Rated, IEC309 Input, U-Lock 10xC13 + U-Lock 0xC19, Black, 1U, Upgradeable

฿14,310.00 (รวมภาษี)
฿13,373.83 (ไม่รวมภาษี)

รหัสสินค้า: 14240227

การรับประกัน: 1 Year Warranty

มีสินค้าอยู่ 100

Vertiv 14240227

Geist Rack Metered PDU: 16A Rated, IEC309 Input, U-Lock 10xC13 + U-Lock 0xC19, Black, 1U, Upgradeable



CI10049L – rPDU, Metered Upgradeable, 16A, 230V, 3.6kW, 1RU, Horizontal (10) Locking IEC C13, 3m power cord with 2P+E (IP44), Black Powder Coat.



Benefits :

  • Reliable power distribution to critical IT equipment.

  • Avoid accidental overloads when deploying or moving critical server equipment with instant access to power consumption metrics on the local digital display.

  • Every unit is 100% tested for reliability and functionality to ensure units function as designed.

  • Standard three-year warranty, upgraded to five years with product registration.



Features :

  • The local LED display provides real-time power data for instant feedback when deploying or moving critical IT equipment.

  • Available in vertical and horizontal rackmount form factors.

  • Flexibility to meet a broad range of requirements, with a variety of electrical and receptacle configurations available.

  • Simple and quick installation in all standard racks or cabinets with included mounting brackets.

  • Simple and convenient configuration options for cord lengths and chassis colors.



Specifications :

Monitoring Input power monitoring. Local high visibility LED display. Input and per Phase power monitoring available via VLC using the Vertiv rPDU Scanner app.
Monitoring Level 1 Phase (A) Monitoring (kWh, W, VA, PF, V, A)
Power Measurements Compliant with ANSI C12.1 and IEC 62053-21 at 1% Accuracy Class Requirements
Quantity Of Inputs 1
Voltage 230V
Current 16A
VA per Input (Load Capacity) 3.6kW
Frequency 50/60Hz
Over Current Protection None
Switch None
Scrolling / Rotatable Digital Display Yes
Power Cable Wire Gauge 2.5mm²
Power Cable Length 3m
Power Entry Location Left Rear
Plug Type IEC60309 2P + E, 16A, 250V, Splash proof IP44
Combined Total Receptacle/Socket Quantity 10
Receptacle/Socket Type #1 U-Lock IEC C13
└ Quantity 10
└ U-Lock Color 1 circuit (Orange)
└ Maximum Output per Receptacle/Socket 10A
└ Voltage per Receptacle/Socket 230V
Internal RMS Voltage Sensor Yes
Internal RMS Current Sensor Yes
Maximum Operating Temperature 60℃ / 140°F
Material / Finish Heavy Steel – Powder Coat Finish Black
Configuration 1U, Horizontal Rackmount
Adjustable Mount Brackets Yes
Product Warranty 5-year limited warranty (if registered within 120 days), otherwise 3 years
Certification / Agency Approvals CE, EN55032 & EN55024, IEC62368-1, RoHS
