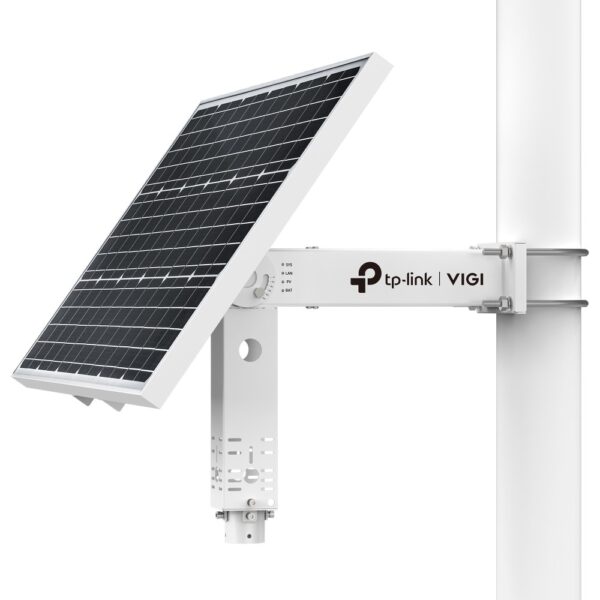

TP-Link VIGI SP9030

VIGI Intelligent Solar Power Supply System

Solar Panel (Photovoltaic Panel)
Power	90 W
Voltage	18 V
Dimensions (L x W x H)	998×516×30 mm (39.3×20.3×1.2 in)

Battery
Type	Lithium
Intelligent Auxiliary Heat	Yes
Battery Capacity	31.2 Ah
Voltage	10.8 V
Max. Output Voltage	12.6 V
Life	More than 500 cycles
Dimension	242×70×65 mm (9.5×2.8×2.6 in)
Charging Condition	• 0°C~45°C • -30°C~45°C (With intelligent auxiliary heating)
Discharging Condition	• -20°C~60°C • -30°C~60°C (With intelligent auxiliary heating)

Angle Adjustment (Manual)
Range	5°/15°/25°/35°/45°/55°

HARDWARE
Interface	• 1× 10/100 Mbps RJ45 • 1× Photovoltaic Panel Connector • 3× 5.5mm DC Power Plugs (#1, #2: 9V-12.6 VDC/2A, #3: 12 VDC/2A)
Indicator LED	• Quantity: 4 (1× SYS Indicator, 1× LAN Indicator, 1× PV Indicator, 1× BAT Indicator) • Color: Blue

SOFTWARE FEATURES
Load Control	Yes
High and Low Temperature Protection	Yes
Overdischarge Protection	Yes
Power Consumption Statistics	Yes
Displays Real-time Load Status	Yes
Battery Level Display	Yes
Time Zone Selection	Yes
Region Selection	Yes
Schedule Saving	Yes
Firmware Remote Update	Yes
Remote Reboot	Yes
Local LAN Management	Yes
Smart Charging Control	-30°C~5°C
Account Management	Yes
Web Management	Yes
Remote Reset	Yes
Remote Message Push	Yes

OTHERS
Certification	• CB, PSE (Battery) • CE, FCC, VCCI, IC, IP66
Package Content	• VIGI SP9030 • Quick Start Guide • Waterproof Cable Attachments • Mounting Accessories
Box Dimensions (W X D X H)	1110×615×225 mm (43.7×24.2×8.9 in)
Weight	• Product Weight: 15 kg • Package Weight: 17.5 kg
Environment	• Operating Temperature: -30°C-60°C (With intelligent auxiliary heating) • Operating Humidity: 10%~90%RH, Non-condensing
