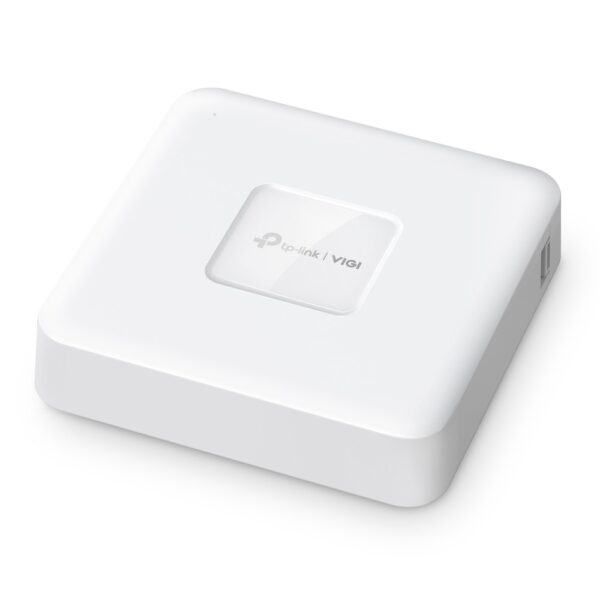

TP-Link VIGI NVR1104H-4P

VIGI 4 Channel PoE+ Network Video Recorder

Video and Audio
IP Video Input	4-Channel
Incoming Bandwidth	80 Mbps
Outgoing Bandwidth	60 Mbps
HDMI Output Resolution	1 Channel, Resolution: 3840×2160/30Hz, 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz
VGA Output Resolution	1 Channel, Resolution: 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz
Video Output Mode	HDMI/VGA Simultaneous Output
Multi-View Display	1/4

DECODING
Audio Compression	G.711A/G.711U/G.726
Video Compression	H.265+/H.265/ H.264+/H.264
Record Resolution	8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback	4 Channel
Capability	• 25fps: 2-ch @ 8MP, 4-ch @ 4MP • 30fps: 4-ch @ 4MP, 3-ch @ 5MP

Record Management
Record Mode	• Manual Recording • Scheduling Recording • Motion Detection Recording
Playback Mode	• Instant Playback • Regular Playback • Tag Playback • Event Playback
Backup Mode	• Regular Backup • Video Clip Backup
Playback Function	• Play • Pause • Stop • Fast Forward • Fast Backward • Play By Frame • Full Screen • Video Clip • Export Clip • Digital Zoom • Lock Recording • Audio On/Off

External Interface
Network Interface	1, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
USB Interface	2× USB 2.0
Audio Interface	1-ch RCA Input; 1-ch RCA Output
Alarm In/Out	N/A
Serial Interface	N/A
Power	1× DC Jack
Reset Button	1
Speaker	1; Real-time Audio Output without Needing Peripherals.
eSATA	N/A
HDMI	1
VGA	1

HARD DISK
SATA	1 SATA Interface
Capacity	Up to 16 TB Capacity for Each HDD

PoE
Standard	802.3at/af Compliant
Interface	1- 4, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
PoE Budget	53 W Available for All PoE+ Ports, 30 W Max per Port

Alarm
General Alarm	• Motion Detection • Video Tampering • Scene Change Detection • Line-Crossing Detection • Intrusion Detection • Region Entering Detection • Region Exiting Detection • Loitering Detection • Object Abandoned/Removal Detection • Vehicle Detection • Human Detection • Abnormal Sound Detection • Smart Frame Note: The alarm function requires the use of a camera.
Anomaly Alarm	• Video Loss • Offline and IP Conflict • Disk Exception • Login Exception
Alarm Linkage	• Recording • White Light Alarm • Buzzer • Log • Audible Alarm Note: The alarm function requires the use of a camera.

INTERFACES
Network Interface	1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
USB Interface	2× USB 2.0

GENERAL
Storage Temperature	-40–70 °C
Storage Humidity	10%~90% RH Non-Condensing
Package Content	VIGI Network Video Recorder Power Adapter HDD Screws Mouse Quick Installation Guide
Working Temperature	• NVR: -10–55 °C • Power Adapter: 0–40 °C
Working Humidity	10%~90% RH Non-Condensing
Dimensions( W X D X H )	200.3 × 200.3 × 43 mm
Power Supply	53.5V DC/1.31A
Max. Power Consumption	4.82 W (without disk)
Certifications	CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI

VIDEO/IMAGE
Video Input	4-Channel IP Video Input, up to 8MP Resolution
Recording Resolution	8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/ DCIF/2CIF/CIF/QCIF
HDMI Output Resolution	1 Channel, Resolution: 3840×2160/30Hz,1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1024×768/60Hz, 1280×720/60Hz
VGA Output Resolution	1 Channel, Resolution: 1920×1080/60Hz,1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1024×768/60Hz, 1280×720/60Hz
