HPE S1T23A

HPE Networking Instant On Access Point Dual Radio Tri Band 2×2 Wi‑Fi 6E (RW) AP32



The HPE Networking Instant On Access Points AP32 is a Wi-Fi CERTIFIED 6™ access point with 6 GHz spectrum capabilities to support Wi-Fi 6E compatible devices. With this dedicated band you’ll experience lower latency and faster transmit rates (up to 3.6 Gbps) for your Wi-Fi 6 enabled devices. Support over 100 devices with this 2×2 tri-band wireless access point and bring the cloud closer to your edge.



Features :

802.11ax Wi-Fi Certified 6E

• HPE Networking Instant On AP32 access points feature Orthogonal Frequency-Division Multiple Access (OFDMA), allowing multiple Wi-Fi 6 capable clients to be handled simultaneously per channel. This improves efficiency by boosting overall capacity, reducing latency, and improving end-user experience.
• Target Wake Time (TWT): Ideal for IoT devices that communicate infrequently, TWT establishes a schedule for when clients need to communicate with an AP. This reduces power consumption and can extend the battery life of clients.
• Multiple Input, Multiple Output (MIMO): Allows the access point to serve multiple clients (Wi-Fi 5 and Wi-Fi 6) simultaneously.

Safeguard your Network with WPA-Enterprise Features

• HPE Networking Instant On AP32 access points come with top-level security features, always on, out of the box, such as WPA2/WPA3 and Enhanced Open support for protecting your wireless network.
• Use the HPE Networking Instant On mobile app or web portal to see where clients on your network are going with the application’s insight.
• Block certain types of traffic in the mobile app or web portal to keep your network safe and employees productive.

Wi-Fi 6E 6 GHz Band to Fast-Track your Devices

• HPE Networking Instant On Access Point AP32 is ready to elevate your growing network needs with Wi-Fi 6E.
• This Tri-band, dual radio access point offers different broadcasting configurations: 6 GHz and 5 GHz for impressive throughput, 2.4 GHz and 6 GHz to support IoT and the most recent wireless devices, and 2.4 GHz and 5 GHz for businesses not yet ready to use the latest wireless standards.
• Easily manage and update the HPE Networking Instant On AP32 band setting in the HPE Networking Instant On mobile app from anywhere.



Specifications :

SKU	S1T23A
Brand	Aruba
Name	(S1T23A) Access Point “Aruba” Instant On AP32
Model	Instant On Access Point Dual Radio Tri Band 2×2 Wi‑Fi 6E AP32

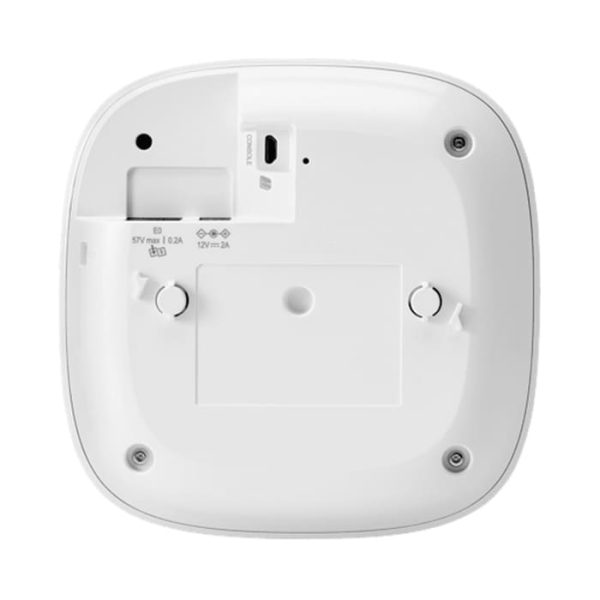

Interface	1x 2.5GbE BaseT Uplink DC Power Connector LED status Indicators Reset/LED control button Kensington security slot
Connectivity Standard	Wi-Fi 11ax
Radio coverage	2.4 GHz 802.11ax (Wi-Fi 6E) 5 GHz 802.11ax (Wi-Fi 6E) 6 GHz 802.11ax (Wi-Fi 6E)
Wi-Fi Antennas	Dual Omnidirectional 2×2 MIMO
Power Consumption	DC: 11.0W PoE: 12.9W
Input voltage	PoE: 802.3bt (class 6) or 802.3at (class 4) DC power (12V)
Mounting	Ceiling/Wall mount clip
Dimension	160mm x 160mm x 39mm
Weight	520g
