HPE R7J27A

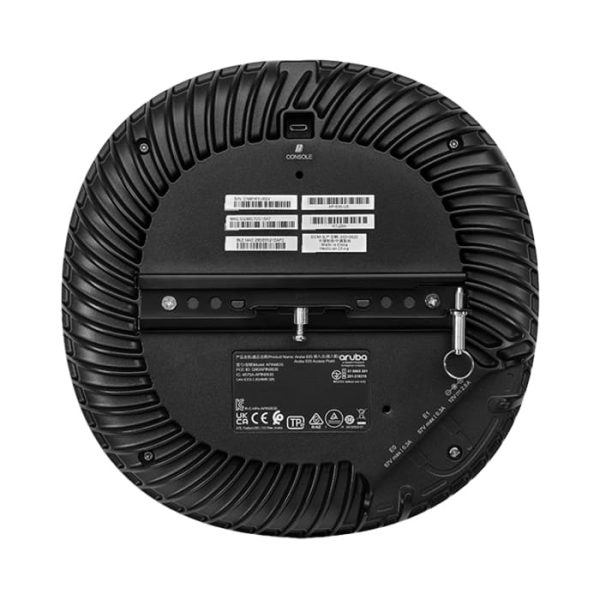

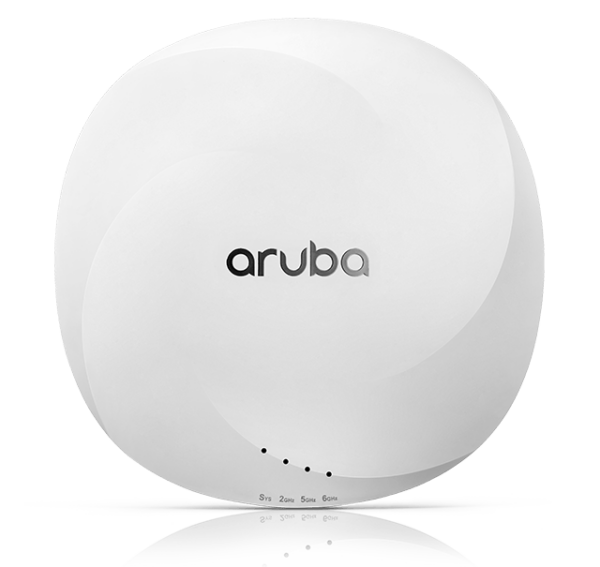

Aruba AP-635 (RW) Campus AP



Unlock the 6GHz band to provide fast, resilient, and secure Wi-Fi 6E connectivity.



First enterprise-grade Wi-Fi 6E solution

For enterprises who will need more wireless capacity and wider channels to grow, Aruba 630 Series APs take advantage of the 6 GHz band via three dedicated radios.

More wireless capacity with ultra tri-band filtering

Aruba 630 Series APs take advantage of the 6 GHz band and include ultra tri-band filtering and dual 2.5 Gbps ethernet ports to eliminate coverage gaps and deliver fast, secure connectivity.

Business continuity

Ensures high availability with two 2.5 Gbps HPE® Smart Rate ethernet ports for hitless failover for both data and power.

Built-in security

Includes Wi-Fi 6E standards such as WPA3 and Enhanced Open and WPA2-MPSK for stronger encryption and authentication.

Role-based access

Improves security and ease of management by allowing IT to centrally configure and automatically enforce role-based policies across wired and wireless networks.

Client steering

Steers traffic from the noisy 2.4 GHz band to the preferred 5 GHz or 6 GHz band based on device capabilities and dynamically steers traffic to load balance APs.



Specifications :

SKU	R7J27A
Brand	HPE Aruba
Model	Aruba AP-635 (RW) Campus AP
Interface	E0, E1: Two Ethernet wired network ports (RJ-45) -Auto-sensing link speed (100/1000/2500BASE-T) and MDI/MDX -2.5Gbps speed complies with NBase-T and 802.3bz specifications -POE-PD: 48Vdc (nominal) 802.3at/bt POE (class 4 or higher) -802.3az Energy Efficient Ethernet (EEE) -Link aggregation (LACP) support between both network ports for redundancy and increased capacity DC power interface: 12Vdc (nominal, +/- 5%), accepts 2.1mm/5.5mm center-positive circular plug with 9.5mm length USB 2.0 host interface (Type A connector)
Wi-Fi Radio Specifications	2×2 MIMO with peak antenna gain of 4.6dBi in 2.4GHz, 7.0dBi in 5GHz and 6.3dBi in 6GHz
Wi-Fi Antennas	Internal antenna
Dimension	220mm (W) x 220mm (D) x 51mm (H)
Weight	1300g
Power sources and consumption	Maximum (worst-case) power consumption (without / with a USB device attached): DC powered: 20.7W / 26.4W POE powered: 23.8W / 29.4W This assumes that up to 5W is supplied to the attached USB device Maximum (worst-case) power consumption in idle mode: 8.7W / 14.2W (DC) or 11.7W / 17.2W (POE) Maximum (worst-case) power consumption in deep-sleep mode: 1.1W (DC) or 1.9W (POE)
Mounting	Optional
