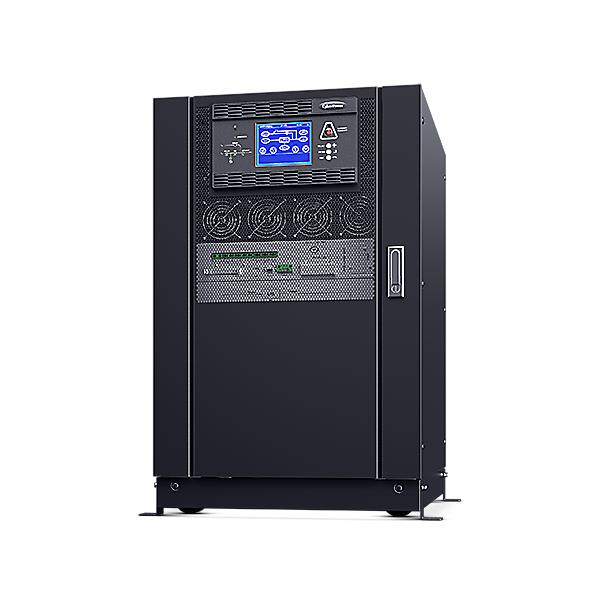

CyberPower HSTP3T60KE 60KVA/54KW 400/230VAC 3PHASE w/o BAT

CyberPower HSTP3T60KE 60KVA/54KW 400/230VAC 3PHASE w/o BAT

฿433,130.00 (รวมภาษี)
฿404,794.39 (ไม่รวมภาษี)

รหัสสินค้า: HSTP3T60KE

มีสินค้าอยู่ 100

CyberPower HSTP3T60KE



CyberPower HSTP3T60KE 3-Phase online UPS provides long-lasting power backup for data closets, transportation and infrastructure, and emergency systems. With parallel expansion capability, the HSTP3T (3-Phase) Series UPS is ideal for critical applications in server rooms, data centers, industrial factories, and power generation plants that require high capacity, high reliability, and extended runtimes.

With integrated IGBT technology and intelligent DSP-based control, the UPS produces less input total harmonic distortion (THDi) and achieves higher power efficiency up to 98% in Economy Mode, making it the most efficient UPS in the industry. Higher operating efficiency equates to lowered BTU heat dissipation and lowered idle power consumption, resulting in an operating expense reduction and a lower carbon footprint.

To improve operating efficiency, the UPS system works in bypass mode under normal conditions, during which the inverter is kept on standby. During power failures, the UPS switches to battery mode and supplies backup power to the connected critical load.



Features :

  • Three-phase Design

  • Hot-swappable Power Modules

  • LCD Touch Panel

  • UPS Parallel Expansion

  • Generator Compatible

  • Overload Protection

  • LCD Status Display

  • SNMP/HTTP Remote Management Capability (Optional)

  • Online (Double Conversion) UPS Topology

  • ECO Mode

  • Color LCD Panel

  • Dual Inputs

  • Pure Sine Wave Output

  • Maintenance Bypass Switch

  • Emergency Power Off (EPO) Port

  • PowerPanel Management Software



Specifications :

General
Phase Three Phase
Form Factor Tower
UPS Topology Online Double Conversion
Energy Saving Technology ECO Mode Efficiency > 98%
Normal Mode Efficiency (%) 95%
Battery Mode Efficiency (%) 95%
Active PFC Compatibility Yes
Parallel Expansion (Max. Units) 4
Input
Dual Power Inputs Yes
Generator Compatibility Yes
Nominal Input Voltage (Vac) Line to Neutral (L-N): 220, 230, 240 Vac
Line to Line (L-L): 380, 400, 415 Vac
Input Voltage Range (Vac) Line to Neutral (L-N): 132 ~ 276 Vac
Line to Line (L-L): 228 ~ 478 Vac
Configurable Voltage Range (Vac) 220 ~ 250 Vac
Line to Line (L-L): 380 ~ 435 Vac
Input Frequency (Hz) 50 ± 3
60 ± 3
Input Frequency (Configurable) (Hz) 50 ± 1
50 ± 5
60 ± 1
60 ± 5
Input Frequency Range (Hz) 40 ~ 70
Rated Input Current (A) 83
THDI (%) <3% (Linear Load)
Input Power Factor 0.99
Input Connector Type Hardwire Terminal Block
Output
Capacity (VA) 60000
Capacity (Watts) 54000
On Battery Waveform Pure Sine Wave
Output Voltage Setting Configurable
Output Frequency Setting Configurable
Rated Output Voltage (Vac) Line to Neutral (L-N): 220, 230, 240 Vac
Line to Line (L-L): 380, 400, 415 Vac
Output Voltage Tolerance (%) 1%
Output Frequency (Hz ± %) 50 ± 0.1
60 ± 0.1
Power Factor 0.9
ECO Mode Voltage Tolerance ±10%
Overload Protection Internal Current Limiting, Circuit Breaker, Fuse
Overload Protection (Line Mode) 105~110% Load for 60 min
110~125% Load for 10 min
125~150% Load for 1 min
>150% Load Immediately
Overload Protection (Battery Mode) 105~110% Load for 60 min
110~125% Load for 10 min
125~150% Load for 1 min
>150% Load Immediately
Overload Protection (Bypass Mode) 125~130% Load for 10 min
130~150% Load for 1 min
150~400% Load for 1 sec
>400% Load Immediately
Crest Factor 3:1
Harmonic Distortion (Linear Load) THD <1%
Harmonic Distortion (Non-linear Load) THD <5%
Internal Bypass Automatic Bypass, Manual Bypass
Maintenance Bypass Yes
Outlet Type Hardwire Terminal Block x 1
Typical Transfer Time (ms) 0
Battery
Compatible Battery Types VRLA, AGM, Gel, Wet, Lithium-ion
Recharge Power (%) Default 10% (Selectable from 1~20% x UPS Capacity)
Recharge Power Setting Configurable
Charger Voltage Tolerance ( % ) ≤ 1 %
Smart Battery Management (SBM) Yes
User-replaceable No
Battery Solution Extended Battery
Battery Voltage (V) ±240 (480)
Compatible Extended Battery Cabinet (EBC) SMBF17, SMBF20, SMBF26, SMBF33, SMBF40, SMBF65, BCA100N125, BCA12N63, BCA20N125, BCA40N125
External Battery Quantity 12V x 40 (Default)/32/34/36/38/42/44pcs (32/34pcs require UPS power de-rating)
Surge Protection & Filtering
EMI/RFI Filtration Yes
Management & Communications
LCD Panel Yes
LCD Types Color LCD, LCD Touch Panel
LCD Information Display Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information, Event & Log
LCD Setting & Control Mode Setting, Input & Output, Battery Setting, Communication, Event & Log, Security Setting, Language
LED Indicators Yes
Serial Port RS232 x 1 + RS485 x 1 + Dry Contact x 1
Dry Contact (with Relay) Yes
Emergency Power Off (EPO) Port Yes
Audible Alarms Battery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault, Replace Battery
Power Management Software PowerPanel Business (Recommended)
SNMP/HTTP Remote Monitoring Yes – with optional RMCARD205
Physical
Enclosure Construction Metal
Color Black
Ingress Protection IP20
Physical Size – UPS Module
Dimensions (WxHxD) (mm.) 600 x 950 x 980
Weight (kg.) 170
Shipping Dimensions
Dimensions (WxHxD) (mm.) 755 x 1150 x 1130
Weight (kg.) 203.5
Environmental
Operating Temperature (°C) 0 ~ 40
Operating Relative Humidity (Non-condensing) (%) 0 ~ 95
Operating Elevation (feet/meters) ≤1000, Load Derated 1% per 100m from 1000m and 2000m
Storage Temperature (°C) -40 ~ 70
Storage Relative Humidity (Non-condensing) (%) 0 ~ 95
Certifications
Certifications CE, IEC62040-1, IEC62040-2
