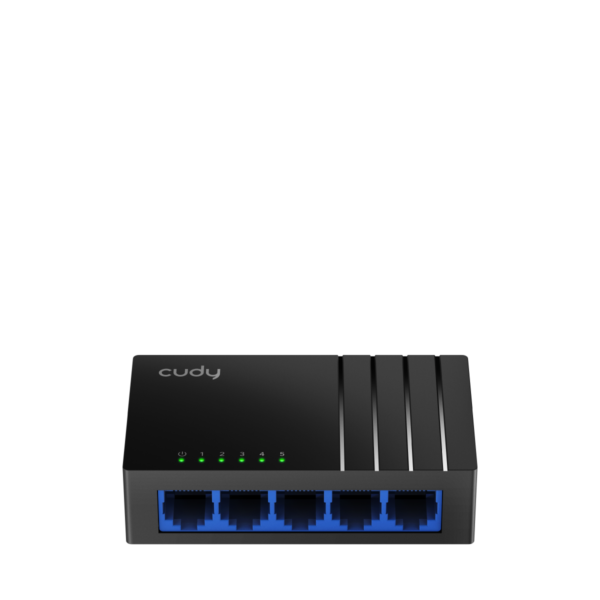

Cudy GS105D

5-Port Gigabit Unmanaged Switch

Model Version	GS105D 4.0
Interfaces	Gigabit RJ45 Ports	5
	LED	Power Speed/Link/ACT of Each Ethernet Port
	Power Input	DC Jack
Performance	Copper Speed and Distance	Cat. 3 or higher cable: 100 meters at 10 Mbps Cat. 5 or higher cable: 100 meters at 100 Mbps Cat. 5e or higher cable: 140 meters at Gigabit
	MAC Address Table	2048
	Max Switching Capacity	10 Gbps
	Max Forwarding Rate	7.44 Mpps
	Jumbo Frame	15 KB
	Packet Buffer	3 Mbit
Power	Basic Power Saving	True
	Power Methods	DC
	DC	5V⎓0.55A
	Power Adapter	Input: 100-240V~, 50/60Hz Output: 5V⎓0.55A
	Max Power Consumption	2W
	Idle Power Consumption	1.4W
Switching	802.3 Protocols	802.3x Flow Control 802.3i 10BASE-T 802.3u 100BASE-TX 802.3ab 1000BASE-T
Reliability	EMS	IEC/EN 61000-4-2, Level 2 ESD: Contact: 4kV; Air: 8kV IEC/EN 61000-4-5, Level 3 Surge: 2kV
	Environment	Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing
Mechanical	Dimension	88×52.5×24 mm 3.46×2.07×0.94 inches
	Product Weight	52 g (1.83 oz.)
	Casing Material	Plastic
	Installation	Desktop Wall-mount
Package Content	GS105D Power Adapter Installation Guide
