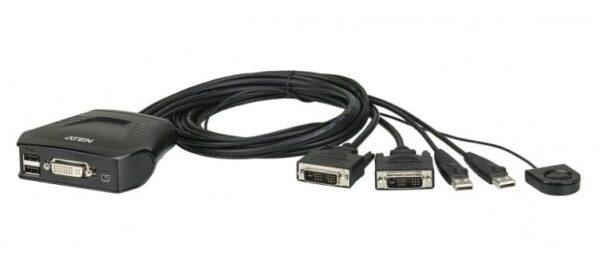

Aten CS22D

2-Port USB DVI KVM Cable



The CS22D 2-Port USB DVI KVM Switch is a control unit that allows access to two computers from a single USB and DVI console (keyboard, video and mouse). With the CS22D, you can access the computers conveniently via a Remote Port Selector.

The CS22D´s compact all-in-one design makes it ideal for multiplatform desktop applications.



Features

• One DVI-D video console controls two DVI-D USB interface computers

• Computer Selection via Remote Port Selector

• OS Support: Windows 2000, Windows XP, Windows Vista, 7, Mac, Sun and Linux

• Superior video quality- up to 1920 x 1200@60Hz

• Supports USB hot-plugging

• Non-powered

• Supports USB 2.0 device



Diagram



Specification

Computer Connections			2
Port Selection			Remote Port Selector
Connectors	Console	Keyboard	1 x USB Type A Female (Black)
		Mouse	1 x USB Type A Female (Black)
		Video	1 x DVI-I Female (Black)
		Power	1 x mini USB Type B Female (Black, Optional)
	Computer ports	KB/MS	2 x USB Type A Male (Black)
		Video	2 x DVI-D Male (Black)
LEDs	Selected		2 (Green)
Resolution			DVI-D: 1920 x 1200 @ 60 Hz
Power Consumption			5V, 2.5W
Environment	Operation Temperature		0 – 50˚C
	Storage Temperature		-20 – 60˚C
	Humidity		0 – 80% RH, Non-condensing
Physical Properties	Housing		Plastic
	Weight		0.33 kg
	Dimensions ( L x W x H )		9.95 x 9.36 x 3.01 cm



Package Contents

• 1x CS22D 2-Port USB DVI KVM Switch

• 1x User Instructions
