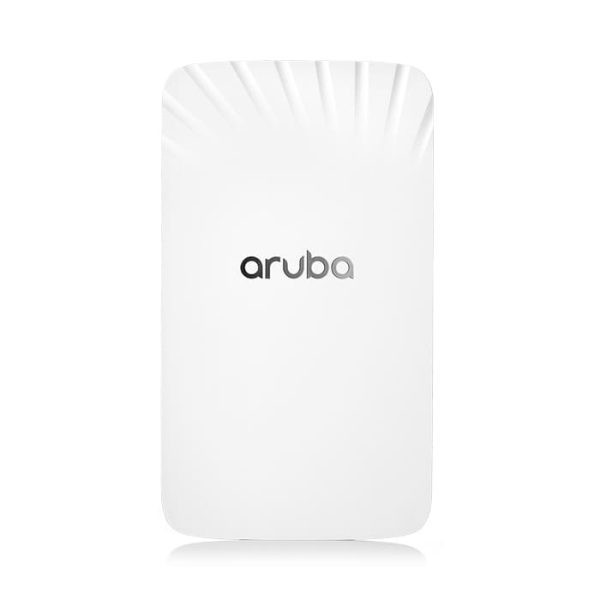

HPE Aruba Networking AP-503H (RW) Dual Radio 802.11ax 2×2 1+2 Ethernet Unified Hospitality AP



Features :

Wi-Fi 6 Performance for Hotels, Dorms, and Remote Offices

• HPE Aruba Networking 500H Series Unified Hospitality Access Points deliver a maximum combined data rate of 1.5 Gbps with 2 spatial streams to meet the needs of low and medium density environments.

• The AP provides Wi-Fi CERTIFIED™ with support for Wi-Fi 6 features such as OFDMA, bidirectional MU-MIMO, and target wait time (TWT) to drive improved efficiency. It handles multiple Wi-Fi 6 capable clients on each channel simultaneously, regardless of device or traffic type.

• Enhanced wireless experience with HPE Aruba Networking ClientMatch technology removes sticky client issues by steering a client to the AP where it receives the best radio signal.



Flexible Deployment and Unified Management

• The HPE Aruba Networking 500H Series Unified Hospitality Access Points can be installed on a wall for hotel or residence hall environments or installed with optional desktop stand for tabletop deployment.

• The AP manages with HPE Aruba Networking Central, an AI-powered solution that simplifies IT operations, improves agility, and reduces costs by unifying management of campus, branch, remote, data center, and IoT networks from one dashboard.

• The AP-503H model has three 1 Gbps Ethernet ports (1 x 1 Gbps uplink, 2 x 1 Gbps downlink). The AP-505H model has five Ethernet ports (1 x 2.5 Gbps uplink, 4 x 1 Gbps downlink), supports PoE out on two ports, and includes a USB port.

• Product bundles for remote desktop use include access point, desk mount, power adapter, and power cord (US and EU only).

• Zero Touch Provisioning provides ease of implementation in branch offices and remote sites, without on-site technical expertise.



Ready for IoT

• The HPE Aruba Networking 500H Series Unified Hospitality Access Points support1 Bluetooth 5 and Zigbee® wireless protocols through an integrated IoT radio. The AP-505H model also has an integrated USB port to support a range of IoT devices.

• The AP simplifies deploying and managing IoT location services, asset-tracking services, security solutions, and IoT sensors.

• HPE Aruba Networking Central client insights uses deep packet inspection to provide additional context and behavioral information that help verify devices are receiving proper policy enforcement and continuously monitor for rogue devices.



Simple and Secure Access

• The HPE Aruba Networking 500H Series Unified Hospitality Access Points offer enhanced security with Dynamic Segmentation to remove time-consuming and error-prone task of managing complex and static VLANs, ACLs and subnets by dynamically assigning policies and keeping traffic protected and separated.

• It offers stronger encryption and authentication with WPA3, protected credentials/keys storage for guest access with Enhanced Open, and user and IoT access policy enforcement firewalls (PEF).

• WPA3 and Enhanced Open security increases enterprise-level security by providing stronger guest access protections without increasing complexity.

• Trusted Platform Module (TPM) secures credentials, keys, and boot code.



Specifications :

SKU	R3V36A
Brand	Aruba
Name	(R3V36A) Access Point “Aruba” AP-503H
Model	Aruba Networking AP-503H Dual-radio 802.11ax 2×2 Unified Hospitality AP with 1+2 Ethernet
Interface	E0(Uplink): 1x (10/100/1000BASE-T) RJ45 POE-PD 802.3af POE (class 3) E1-E2: 1x (10/100/1000BASE-T) RJ45
Connectivity Standard	Wi-Fi 11ax
Radio coverage	2.4 GHz 802.11ax (Wi-Fi 6) 5 GHz 802.11ax (Wi-Fi 6)
Wi-Fi Antennas	2x semi-directional antennas for 2×2 MIMO
Power Consumption	DC : 14W POE: 10.0W
Input voltage	DC: 12Vdc
Mounting	wall/desk mounting
Dimension	86 x 150 x 40mm
Weight	290g
