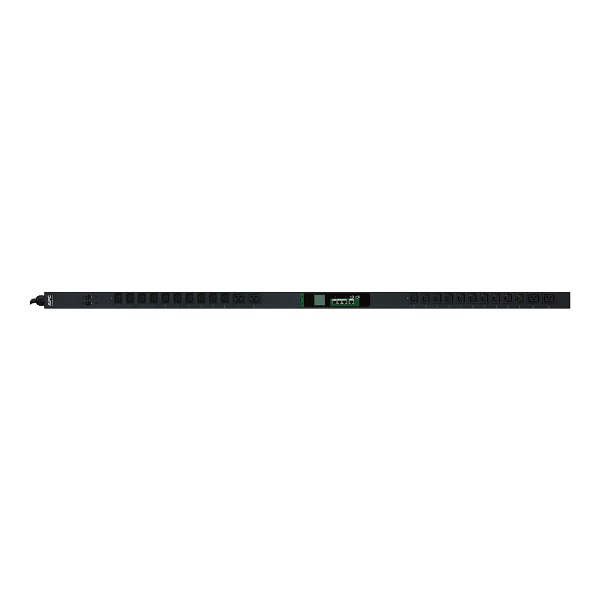

EPDU1132S

APC Easy Rack PDU, Switched, 0U, 1 Phase, 7.4kW, 230V, 32A, 20 x C13 and 4 x C19 outlets, IEC60309 2P+E inlet

APC Easy Switched Rack PDU EPDU1132S is Easy-to-install and easy-to-use PDU, making rack power distribution easy and intelligent. This provides on/off outlet switching, advanced power management, load monitoring and much more features than the average power strip. EPDU1132S has IEC 60309 32A 2P+E type inlet, twenty IEC C13 and four IEC C19 type outlet sockets. This is vertical rack mountable PDU in ultra light weight and smart, multifunctional new designed display. Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack. Remotely manage outlets so users can turn outlets off that are not in use (prevent overloads) or recycle power to locked-up equipment (minimize costly downtime and avoid travel time to equipment) Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Command Line Interface. Allows users to access, configure, and manage units from remote locations to save valuable time. Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. Connect and manage multiple PDUs from one IP address to simplify and speed deployment while saving the cost required in having a dedicated network connection for each PDU Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. Allows users to configure the sequence in which power is turned on or off for each outlet. This helps avoid in-rushes at start-up, which can cause overloaded circuits and dropped loads Sequencing also allows users to predetermine which piece of equipment is turned on first so other equipment dependant on that unit will function properly. Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits. The packaging includes cable, installation guide and horizontal mounting brackets for quick and easy mounting in the enclosure.

Specifications :

Overview
———
Lead time: Usually in Stock

—–
Main
—–
Name: EPDU1132S
Colour: Black
Product or component type: PDU
PDU type: Switched
Cord length: 3.00 m
Number of cables: 1
Provided equipment: Installation guide, Toolless mounting kit, Vertical mounting brackets

————–
Complementary
————–
Input Voltage: 200 V, 208 V, 230 V
Height: 173.8 cm
Width: 5.5 cm
Output Voltage: 230 V
Depth: 6.2 cm
Net weight: 7.9 kg
mounting location: Side
Mounting preference: No preference
Input Plug Type: IEC 60309 32 A 2P + E
mounting mode: Rack-mounted
Rack units: 0U
mounting position: Vertical
Input current limits: 32 A
Load capacity: 7360 VA
Network frequency: 50/60 Hz
Outlet type and quantity: 20 IEC 60320 C13, 4 IEC 60320 C19

————
Environment
————
product certifications: CE, EAC, TÜV
Ambient air temperature for operation: -5…45 °C
Relative humidity: 5…95 %
Operating altitude: 0…10000 ft
Ambient air temperature for storage: -25…65 °C
Storage Relative Humidity: 5…95 %
Storage altitude: 0.0000000000…15240.0000000000 m

————–
Packing Units
————–
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 195 cm
Package 1 Width: 11 cm
Package 1 Length: 16 cm
Package 1 Weight: 9 kg
