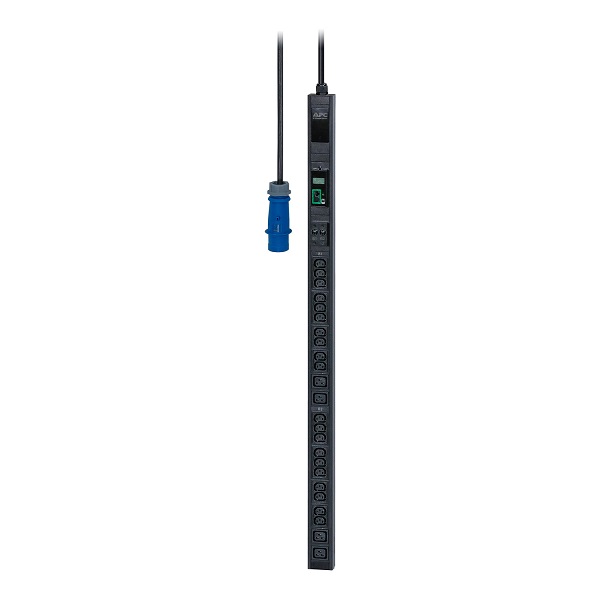

APC EPDU1132M Easy Rack PDU, Metered, 0U, 1 Phase, 7.4kW, 230V, 32A, 20 x C13 and 4 x C19 outlets, IEC60309 2P+E inlet

฿18,778.50 (รวมภาษี)

฿17,550.00 (ไม่รวมภาษี)

รหัสสินค้า: EPDU1132M

มีสินค้าอยู่ 100

Product successfully added to the Quote List

EPDU1132M

Name: APC EPDU1132M Easy Rack PDU, Metered, 0U, 1 Phase, 7.4kW, 230V, 32A, 20 x C13 and 4 x C19 outlets, IEC60309 2P+E inlet
Brand: APC
SKU: EPDU1132M
Availability: InStock

APC Easy Rack PDU, Metered, 0U, 1 Phase, 7.4kW, 230V, 32A, 20 x C13 and 4 x C19 outlets, IEC60309 2P+E inlet

APC Easy Metered Rack PDU EPDU1132M is Easy-to-install and easy-to-use PDU, making rack power distribution easy and intelligent. This provides real-time remote monitoring, power management of connected loads, and much more features than the average power strip. EPDU1132M has IEC 60309 16A 2P+E type inlet, twenty IEC C13 and four IEC C19 type outlet sockets. This is integrated with Hydraulic-magnetic circuit breakers (in units with 32A input current). This is vertical rack mountable PDU in ultra light weight and smart, multifunctional new designed display. Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack. Full-featured user friendly network management web interface provides standards-based management via Web, SNMP, and Command Line Interface. Allows users to access, configure, and manage units from remote locations to save valuable time. Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits. Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. The packaging includes installation guide, user manual toolless mounting kit and vertical mounting brackets for quick and easy mounting in the enclosure. This can operate from -5° to +45°C temperation range and comes with 1 year of standard warranty.

Specifications :

Overview
———
Lead time: Usually in Stock

—–
Main
—–
Name: EPDU1132M
Colour: Black
Product or component type: PDU
PDU type: Metered
Cord length: 3.00 m
Number of cables: 1
Provided equipment: Installation guide, Toolless mounting kit, User manual, Vertical mounting brackets
————–
Complementary
————–
Input Voltage: 200 V, 208 V, 230 V
Height: 117.5 cm
Width: 6.2 cm
Output Voltage: 230 V
Depth: 4.44 cm
Net weight: 3.72 kg
mounting location: Side
Mounting preference: No preference
Input Plug Type: IEC 60309 32 A 2P + E
mounting mode: Rack-mounted
Rack units: 0U
mounting position: Vertical
Permissible voltage: 220…240 V
Max line current: 32 A
Input current limits: 32 A
Load capacity: 7360 VA
Network frequency: 50/60 Hz
Outlet type and quantity: 20 IEC 60320 C13, 4 IEC 60320 C19
————
Environment
————
product certifications: CE, TÜV, EAC, RCM
Ambient air temperature for operation: -5…45 °C
Relative humidity: 5…95 %
Operating altitude: 0…10000 ft
Ambient air temperature for storage: -25…65 °C
Storage Relative Humidity: 5…95 %
Storage altitude: 0.0000000000…15240.0000000000 m
————-
Packing Units
————–
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 132 cm
Package 1 Width: 11 cm
Package 1 Length: 16 cm
Package 1 Weight: 4.48 kg
