AR3107

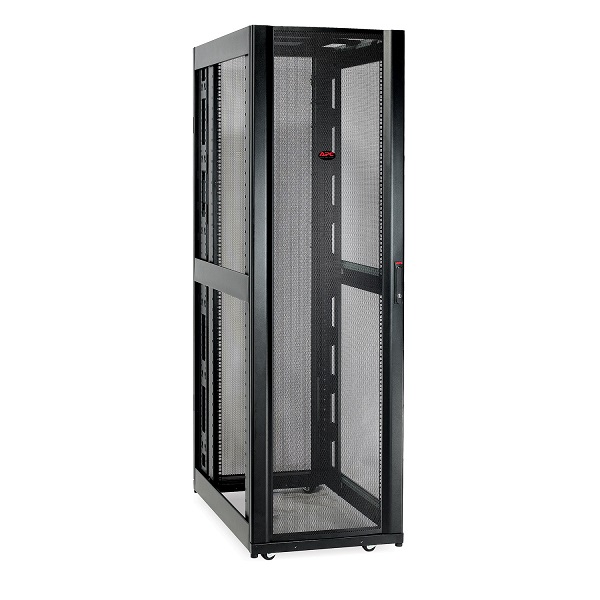

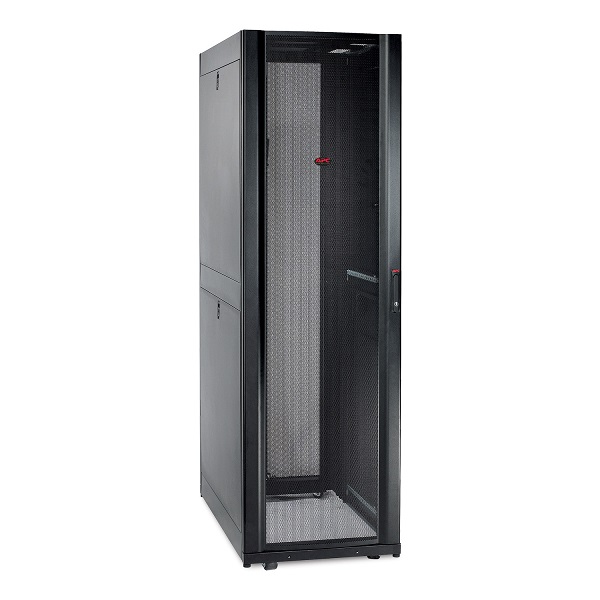

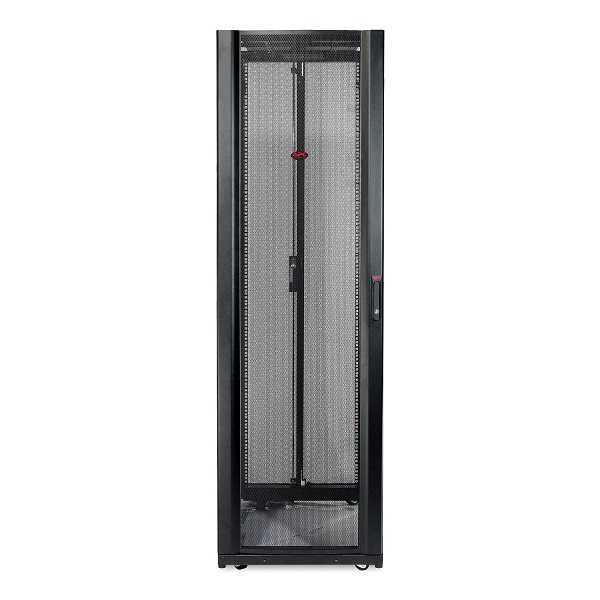

APC NetShelter SX, Server Rack Enclosure, 48U, Black, 2258H x 600W x 1070D mm

An industry standard rack with the most features for speed of deployment and installation. Ready for high density environments. 48U height allows for an additional 6U of rack mounting space maximizing u-space per rack footprint

Specifications :

Overview
———
Presentation: Tall enclosure with 48U spaces for additional equipment. Compact width to optimize data center space. For low to medium density server and networking applications.
Lead time: Usually in Stock

—–
Main
—–
Product or component type: Rack enclosure
Number of rack unit: 48U
Provided equipment: Baying hardware, Key(s) (Keyed-alike doors and side panels), Leveling feet, Mounting hardware, Pre-installed casters, Side panels

———
Physical
———
Height: 2258 mm
Width: 600 mm
Depth: 1070 mm
Net weight: 138.23 kg
Colour: Black
Mounting preference: No preference
Mounting mode: Not rack-mountable
Maximum mounting depth: 914.9 mm
Minimum mounting depth: 190.5 mm
Rack width: 19″
Marking: 14 gauge EIA mounting rail, 16 gauge front door, 16 gauge post, 18 gauge rear door, 18 gauge roof, 18 gauge side panels
Permanent permissible load: 1020.6 kg dynamic, 1701.0 kg static

————
Conformance
————
Standards: UL 2416, UL 60950-1, EIA-310E

—————
Packing Units
—————
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 238.5 cm
Package 1 Width: 75.2 cm
Package 1 Length: 115.6 cm
Package 1 Weight: 157.68 kg
