AP5816

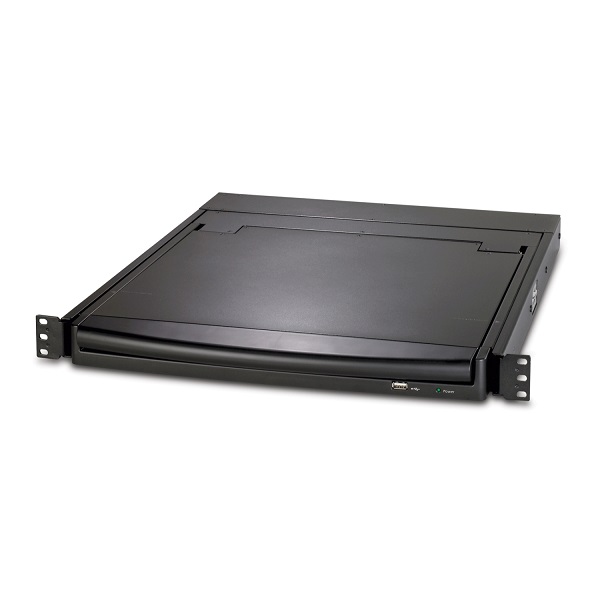

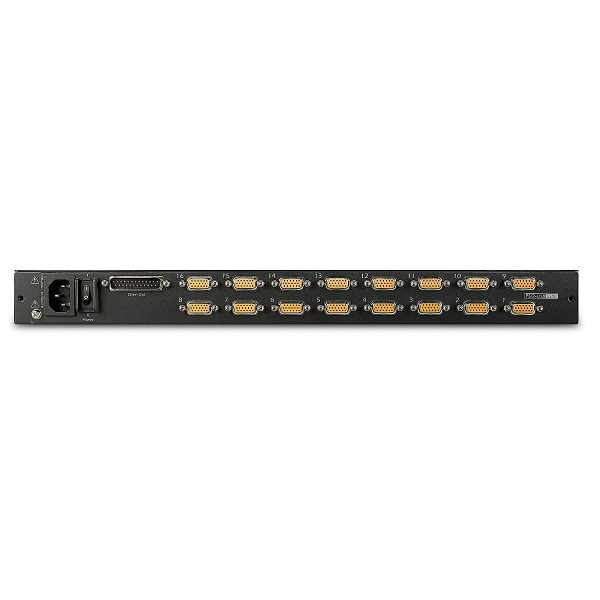

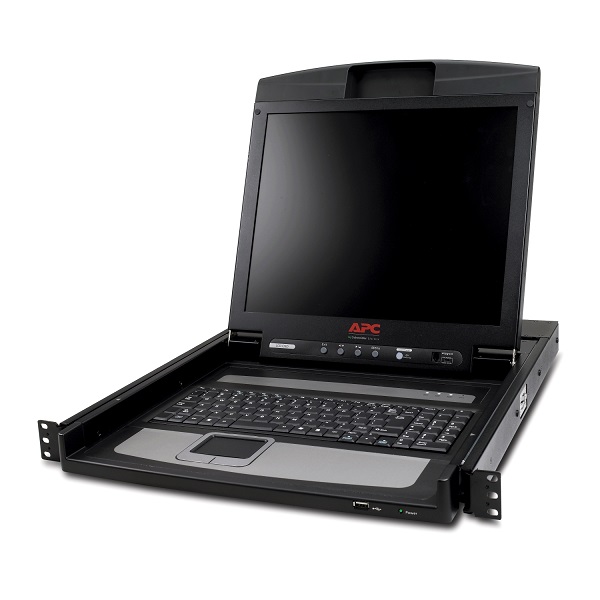

APC 17″ Rack LCD Console with Integrated 16 Port Analog KVM Switch



The Rack LCD Console with Integrated KVM Switch combines the functionality of Rack LCD Console and Analog KVM switches in one convenient package optimizing U space in the rack environment, eliminating cable clutter, and offering a value of two products functionality in one package Keyboard is a US English keyboard layout



Specifications :

Overview
———
Presentation: The Rack LCD Console with Integrated KVM Switch combines the functionality of Rack LCD Console and Analog KVM switches in one convenient package optimizing U space in the rack environment, eliminating cable clutter, and offering a value of two products functionality in one package. Keyboard is a US English keyboard layout.
Lead time: Usually in Stock

—–
Main
—–
Main Input Voltage: 120 V, 240 V
Input Connection Type: IEC 60320 C14
number of rack unit: 1U
Cable length: 6 ft (1.8 m)
Number of cables: 1
Provided equipment: USB KVM cable, Single user rack mount kit, PS2 KVM cable, NEMA 5-15 power cord, Installation guide, Firmware upgrade cable, Documentation CD, C13-C14 power cord

———
Physical
———
Color: Black
Height: 1.7 in (4.3 cm)
Width: 19.02 in (48.3 cm)
Depth: 28.0 in (71.1 cm)
Net Weight: 30.9 lb(US) (14 kg)
mounting location: Front
Mounting preference: No preference
Mounting Mode: Rack-mounted
Maximum Mounting Depth: 41.33 in (104.98 cm)
minimum mounting depth: 26.8 in (68 cm)

——
Input
——
Input Frequency: 50/60 Hz

————
Conformance
————
Product Certifications: cUL Listed, C-tick, CE, Industry Canada, KCC, UL Listed, VDE, TAA compliance
Standards: EN 60950, FCC Part 15 class A, IEC 60950

————–
Environmental
————–
Ambient Air Temperature for Operation: 32…104 °F (0…40 °C)

——————-
Supported Hardware
——————-
Display colour: 16 colours
Display size: 337.9 (H) x 270.3 (V), 17 inch
Trackball Type: PS/2 Touchpad, USB mouse
Display Type: LCD display

——————————
Ordering and shipping details
——————————
GTIN: 731304278818

————–
Packing Units
————–
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 5.1 in (13 cm)
Package 1 Width: 32.7 in (83 cm)
Package 1 Length: 26.2 in (66.5 cm)
Package 1 Weight: 44.40 lb(US) (20.14 kg)
