GS970EMX Series

Fanless Gigabit Access Switches



The CentreCOM GS970EMX series Layer 3 Lite switches provide Gigabit connectivity with Multi-Gigabit copper and 10 Gigabit fiber uplinks. They provide a comprehensive feature-set with fanless models, making them ideal for secure and cost-effective access in small to medium business networks. Stackable models add flexibility and resilience with the ability to easily increase port density.



Overview

• Excellent access solution providing Gigabit to the desktop for maximum performance

• Flexible connectivity with Multi-Gigabit and 10 Gigabit copper and fiber uplinks

• Work area deployment with a fanless design for silent operation

• Versatile work area deployment – 10, 20 and 28-port models are fanless for silent operation

• Network resilience and easy expansion, with the ability to stack multiple units using VCStack™ (20, 28 and 52-port models only)

• Reduced cost and automated network management when deployed as an Autonomous Management Framework™ Plus (AMF Plus) edge node



Key Features

• AlliedWare™ Plus Enterprise class operating system

• EPSRing™ for fast-failover resilient ring networks

• Active Fiber Monitoring™ for secure fiber uplinks

• ACLs for traffic management and control

• Dynamic routing protocols for Layer 3 environments



Specifications :

Physical

Product	Width x Depth x Height	Mounting	Unpackaged Weight	Packaged Weight	Packaged Dimensions

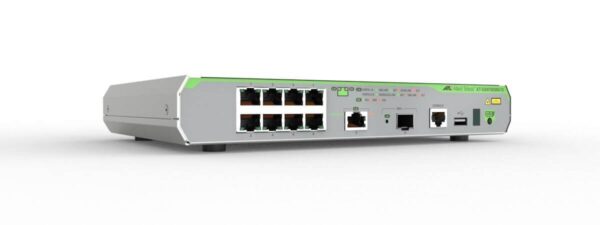

GS970EMX/10	263 x 179 x 38 mm (10.35 x 7.04 x 1.49 in)	Rack-mount	1.6 kg (3.53 lb)	2.97 kg (6.55 lb)	462 x 258 x 107 mm (18.19 x 10.15 x 4.21 in)
GS970EMX/20	341 x 231 x 44 mm (13.42 x 9.09 x 1.73 in)	Rack-mount	3.0 kg (6.61 lb)	4.42 kg (9.74 lb)	530 x 360 x 120 mm (20.87 x 14.17 x 4.72 in)
GS970EMX/28	341 x 231 x 44 mm (13.42 x 9.09 x 1.73 in)	Rack-mount	3.1 kg (6.84 lb)	4.2 kg (9.26 lb)	530 x 360 x 120 mm (20.87 x 14.17 x 4.72 in)
GS970EMX/52	441 x 323 x 44 mm (17.36 x 12.71 x 1.73 in)	Rack-mount	4.5 kg (9.92 lb)	6.20 kg (13.66 lb)	530 x 360 x 120 mm (20.87 x 14.17 x 4.72 in)

Power Characteristics
