CentreCOM FS980M Series

Fast Ethernet Stackable Layer 3 Lite Managed Switches



CentreCOM® FS980M Series switches provide high-performance Fast Ethernet connectivity right where you need it—at the network edge. Flexible and robust, this series provides total security and easy management for businesses of all sizes.



Overview

• Reduce costs and automate network and device management with Allied Telesis Autonomous Management Framework™ Plus (AMF Plus)

• Build resilient networks and increase port density at the edge by stacking multiple units using VCStack™

• Flexible deployment with models featuring 9 to 52 ports, all with Gigabit uplinks

• Support converged networks with PoE+ to power devices like wireless access points, digital surveillance cameras and IP phones

• Easy management with an industry-standard Command Line Interface (CLI) and intuitive Graphical User Interface (GUI)



Key Features

• Ethernet Protection Switched Ring (EPSRing™) enables resilient high-speed ring-based networks

• Static Routing and RIP support Layer 3 environments

• Network Access Control (NAC) for edge security

• ACLs enable network traffic control

• Eco-friendly for reduced running costs



Specifications :

Physical

Product	Width x Depth x Height	Unpackaged Weight	Packaged Weight
FS980M/9	330 x 204 x 43.6 mm (13.0 x 8.0 x 1.7 in)	2.0 kg (4.41 lb)	3.7 kg (8.2 lb)
FS980M/9PS	330 x 204 x 43.6 mm (13.0 x 8.0 x 1.7 in)	2.5 kg (5.51 lb)	4.2 kg (9.3 lb)
FS980M/18	330 x 204 x 43.6 mm (13.0 x 8.0 x 1.7 in)	2.15 kg (4.74 lb)	4.0 kg (8.8 lb)

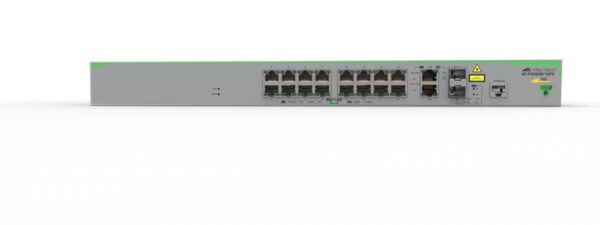

FS980M/18PS	440 x 257 x 43.2 mm (17.3 x 10.1 x 1.7 in)	3.6 kg (7.94 lb)	5.7 kg (12.5 lb)
FS980M/28	440 x 257 x 43.2 mm (17.3 x 10.1 x 1.7 in)	3.2 kg (7.05 lb)	5.3 kg (11.7 lb)
FS980M/28PS	440 x 345 x 44 mm (17.3 x 13.6 x 1.7 in)	5.1 kg (11.24 lb)	7.6 kg (16.8 lb)
FS980M/28DP	440 x 425 x 43.2 mm (17.3 x 16.7 x 1.7 in)	7.1 kg (15.65 lb)	9.1 kg (20.06 lb)
FS980M/52	440 x 257 x 43.2 mm (17.3 x 10.1 x 1.7 in)	3.4 kg (7.50 lb)	5.6 kg (12.3 lb)
FS980M/52PS	440 x 345 x 43.2 mm (17.3 x 13.6 x 1.7 in)	5.4 kg (11.91 lb)	8.2 kg (18.1 lb)

Power and Noise Characteristics

Product	No PoE Load Max Power Consumption (W)	No PoE Load Max Heat Dissipation (BTU/h)	No PoE Load Noise (dBA)	Full PoE+ Load Max Power Consumption (W)	Full PoE+ Load Max Heat Dissipation (BTU/h)	Full PoE+ Load Noise (dBA)
FS980M/9	6.3	22	Fanless	–	–	–
FS980M/9PS	13	45	37	190	660	49
FS980M/18	12	42	Fanless	–	–	–
FS980M/18PS	24	82	33	320	1,100	46
FS980M/28	19	66	Fanless	–	–	–
FS980M/28PS	49	170	36	520	1,180	49
FS980M/28DP	49	170	36	520	1,180	49
FS980M/52	36	120	34	–	–	–
FS980M/52PS	63	210	36	540	1,180	49

Power over Ethernet
