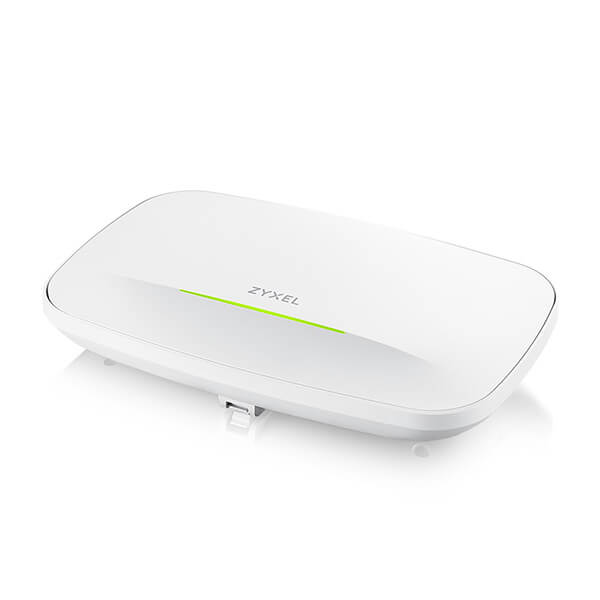

Zyxel WBE630S

BE12300 WiFi 7 Dual-Radio NebulaFlex Pro Access Point



Designed for educational settings, the WBE630S features a Qualcomm quad-core CPU and durable hardware, delivering lightning-fast speeds of up to 12.3Gbps and significantly increased capacity to ensure students have a seamless online experience.

Its flexible BandFlex radio can support either 5GHz or 6GHz by configuration, making it the ideal choice for fitting into your existing 5GHz coverage while also future-proofing the use of 6GHz.

The WBE630S incorporates unique Smart Antenna technology, an upgrade from dual-optimized antennas, automatically adapting antenna patterns for peak performance, effectively minimizing interference and ensuring optimal WiFi connectivity and coverage across diverse scenarios and mounting options.

Coupled with Zyxel Nebula’s cloud networking capabilities, it unleashes the full potential of WiFi 7’s MLO connectivity and reliability to meet the demands of today’s educational applications. Digital learning, hybrid learning, and VR/AR can also take advantage of its incredible speeds, ensuring a seamless learning experience devoid of any latency.

The WBE630S with NebulaFlex Pro provides users with complete flexibility to switch between standalone, on-premises controller, or intuitive Nebula cloud-managed modes as needed. It comes bundled with a 1-year Nebula Professional Pack license, eliminating upfront licensing costs when transitioning to full-featured cloud management.



Features :

• BE12300 (2.4GHz: 2×2:2, 5 or 6GHz: 4×4:4) dual-radio access point offers blazingly fast WiFi 7 speeds of up to 12.3Gbps, ensuring lower latency for realtime responsiveness
• BandFlex design supports either 5GHz or 6GHz by configuration, fitting seamlessly into existing 5GHz coverage while futureproofing for 6GHz
• Smart antenna technology automatically adapts antenna patterns to optimize WiFi performance
• WiFi 7’s MLO enables simultaneous data transmission across 2.4GHz, 5GHz, and 6GHz bands, boosting speed, reducing latency, and enhancing reliability
• Advanced Cellular Coexistence minimizes interferences from 4G/5G cellular networks
• NebulaFlex Pro allows users to switch between standalone, onpremises controller, or intuitive Nebula cloud managed modes as needed



Specifications :

Wireless

Standard

• IEEE 802.11 be/ax/ac/n/g/b/a

MIMO

• MU-MIMO

Wireless speed

• 2.4GHz: 688Mbps

• 5GHz: 8646Mbps

• 6GHz: 11530Mbps

Frequency band

• 2.4GHz:

  • USA (FCC): 2.412 to 2.462GHz

  • Europe (ETSI): 2.412 to 2.472GHz

• 5GHz:

  • USA (FCC): 5.15 to 5.35GHz; 5.470 to 5.850GHz

  • European (ETSI): 5.15 to 5.35GHz; 5.470 to 5.725GHz

• 6GHz:

  • USA (FCC): 5.925 to 6.425GHz; 6.525 to 7.125GHz

  • European (ETSI): 5.925 to 6.425GHz

Bandwidth

• 20-, 40-, 80-, 160-,240- and 320-MHz

Conducted typical transmit output power*1

• US (2.4GHz/5GHz/6GHz): 26/28/25dBm

• EU (2.4GHz/5GHz/6GHz): 19/26/22dBm

RF Design

Antenna type

• Smart antenna

Antenna gain

• 2.4GHz: 1.49dBi, 2×2:2SS

• 5GHz: 2.78dBi, 4×4:4SS

• 6GHz: 3.17dBi, 4×4:4SS

Minimum receive sensitivity

• Min. Rx sensitivity up to -99dBm

WLAN Feature

• Band steering: Yes

• WDS/Mesh*2: Yes

• Fast roaming: Pre-authentication, PMK caching and 802.11r/k/v

• DCS: Yes

• Load balancing: Yes

• Advanced cellular coexistence: Yes

Security

Encryption

• WEP

• WPA

• WPA2

• WPA3

Authentication

• IEEE 802.1X

• RADIUS authentication

Access management

• L2-isolation

• MAC filtering

• Rogue AP detection

Networking

• IPv6: Yes

• VLANs: Yes

• WMM: Yes

• U-APSD: Yes

Management

Operating mode

• Nebula Cloud managed

• Controller-managed

• Standalone

ZON Utility

• Discovery of Zyxel switches, APs and gateways

• Centralized and batch configurations:

  • IP configuration

  • IP renew

  • Device reboot

  • Device locating

  • Web GUI access

  • Firmware upgrade

  • Password configuration

Web UI/CLI

• Yes

SNMP

• Yes

Physical Specifications

Item

• Dimensions (WxDxH)(mm/in.): 250 x 160 x 47/9.84 x 6.30 x 1.85

• Weight (g/lb.): 815/1.80

Packing

• Dimensions (WxDxH)(mm/in.): 279.5 x 180.5 x 66/11.00 x 7.11 x 2.60

• Weight (g/lb.): 1040/2.29

Included accessories

• Mount plate

• Mounting screws

MTBF (hr)

• 691,722

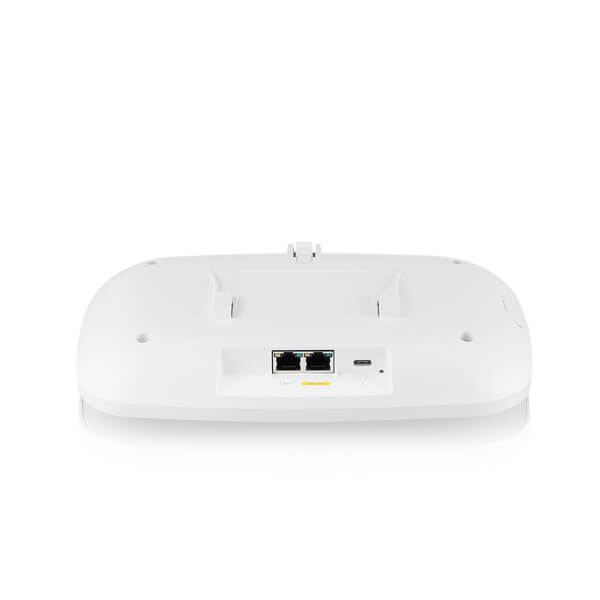

Physical Interfaces

Ethernet port

• 2 x 1/2.5GbE LAN

Power

• PoE (802.3at): power draw 21.5 W

• DC input: USB PD 15 VDC 2A (Type C)

PoE modes

• IEEE 802.3af: No Wireless

• IEEE 802.3at: Unrestricted

• IEEE 802.3bt: Unrestricted

Environmental Specifications

Operating

• Temperature: 0°C to 50°C/32°F to 122°F

• Humidity: 10% to 95% (non-condensing)

Storage

• Temperature: -40°C to 70°C/-40°F to 158°F

• Humidity: 10% to 90% (non-condensing)

Certifications

Radio

• FCC Part 15C

• FCC Part 15E

• FCC Part 2.1091

• ETSI EN 300 328

• EN 301 893

• Draft EN 303 687

• EN 50385

• EN 50665

• EN IEC 62311

• LP0002

EMC

• FCC Part 15B

• EN 301 489-1

• EN 301 489-17

• EN55032

• EN55035

• EN61000-3-2/-3

• EN60601-1-2

• BSMI CNS15936

Safety

• EN 62368-1

• IEC 62368-1

• BSMI CNS15598-1
