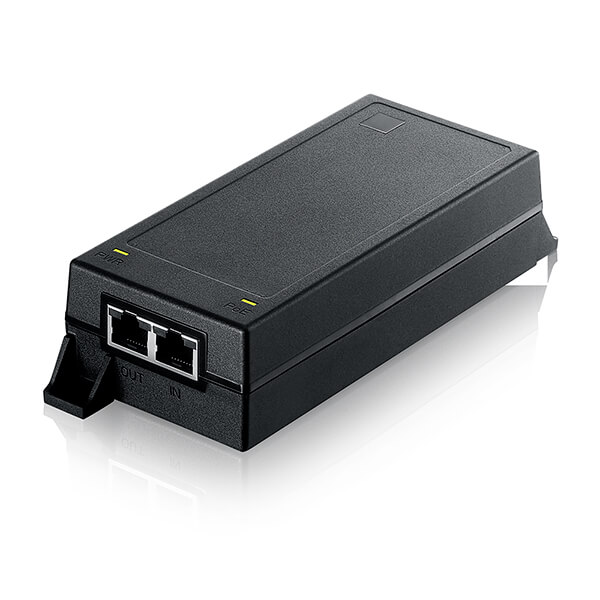

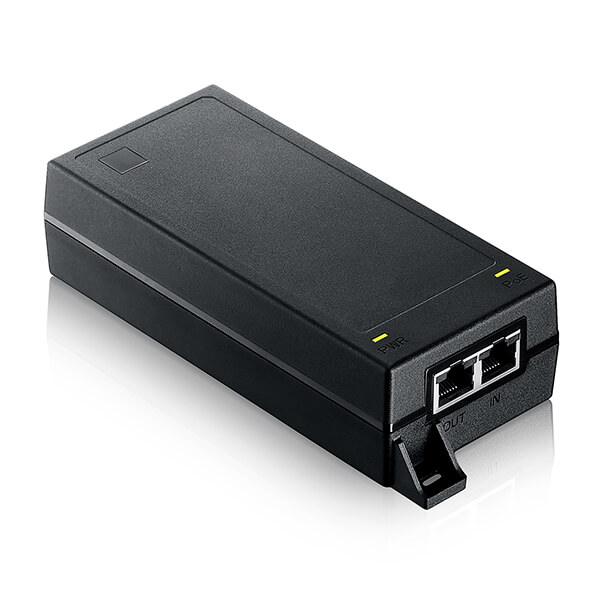

Zyxel PoE12-30W / PoE12-60W

2.5G PoE+ Injector / 5G PoE++ Injector



As demands for connection from networking devices such as IP phones, IP cameras and access points increase, deployment complexity and cost rise as well. For less cable usage and investment, Power over Ethernet (PoE) technology provides both data connection and electrical power to devices through just one cable without power-socket restriction. Featured with the benefits of PoE technology, Zyxel’s PoE Injectors, PoE12-30W and PoE12-60W, all provide super-fast LAN connectivity with high-power budget; easily connect to PoE devices over Cat 5e or above cable. PoE12-30W and PoE12-60W support PoE+ and PoE++ standards respectively, both ensure interoperability with other standard-based PoE-capable devices.



Features :

• PoE12-30W: 2.5G data / PoE+ ports , PoE12-60W: 5G data / PoE++ ports
• PoE12-30W: 30 W power budget , PoE12-60W: 60 W power budget
• PoE12-30W: Complies with IEEE 802.3at PoE+ standard , PoE12-60W: Complies with IEEE 802.3bt PoE++ 60 W standard
• Easy plug-and-play desktop or wall-mounted installation
• Overloading and short-circuit protection



Specifications :

Description

• Product name: 5G PoE++ Injector

Port Density

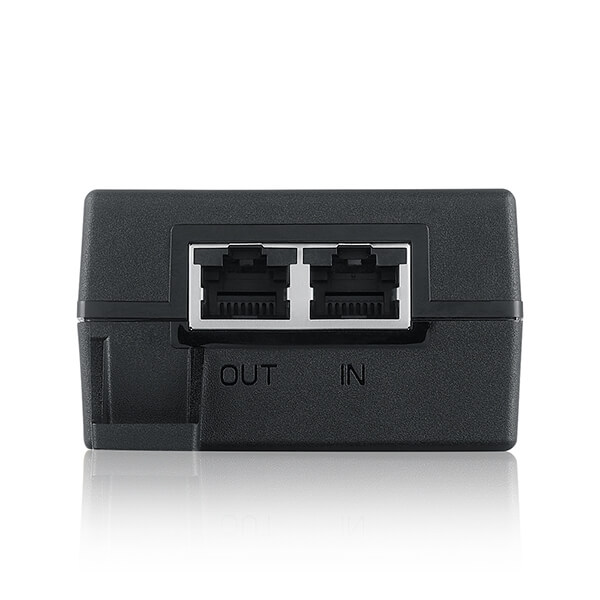

• Total port count: 2

• 100M/1G/2.5G (Data): –

• 100M/1G/2.5G (Power/Data): –

• 100M/1G/2.5G/5G/10G (Data): 1 *

• 100M/1G/2.5G/5G/10G (Power/Data): 1 *

PoE

• Total PoE budget (watts): 60

• PoE Standard: 802.3bt PoE++

Ethernet Standard

• IEEE 802.3u 100BASEX

• IEEE 802.3ab 1000BASE-T

• IEEE 802.3bz 2.5G/5GBASE-T

• IEEE 802.3an 10G BASE-T *

Power

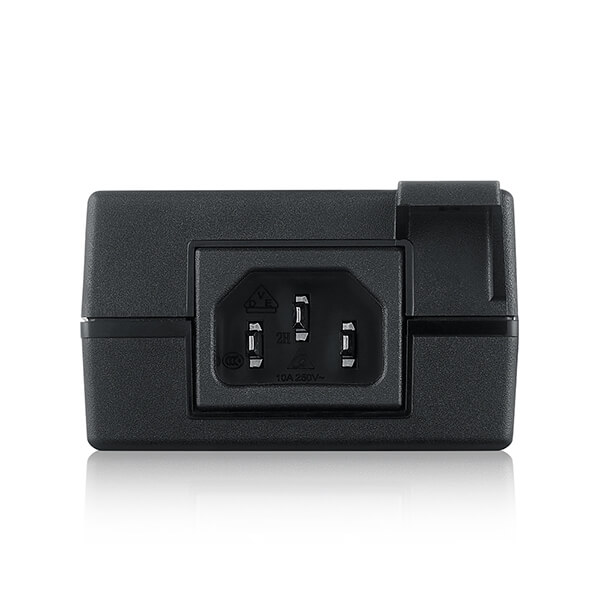

• Input: 100 – 240 V 2.0 A, 50/60 Hz

• Max AC power consumption (watts): 74.70 (includes 60 W PoE output)

• AC idle power consumption (watts): 0.126

Physical Specifications

• Dimensions (WxDxH)(mm/in.): 140 x 65 x 38.5 / 5.51 x 2.56 x 1.52

• Weight (kg/lb.): 278 / 0.61

Included accessories

• Power cord

ESD/Surge Protections

• ESD (air/contact): 15 KV/8 KV

• Surge: +/- 6 KV

Environmental Specifications

• Operating:

  • Temperature: -10°C to 40°C / 14°F to 104°F

  • Humidity: 5% to 90% (non-condensing)

• Storage:

  • Temperature: -25°C to 65°C / -13°F to 149°F

  • Humidity: 5% to 90% (non-condensing)

MTBF (hr)

• 36.75

Heat dissipation (BTU/hr)

• 254.88



*PoE12-60W supports 10G speeds with deployments using Cat 6a cable or higher, up to a maximum length of 30 meters.
